Alto 023196 Bronze Thrust Washer 4500206 CuSn8P0.3 bronze flat washers 04-500204

ZR-090W bronze thrust washer is manufactured from high-grade alloyed, hot-rolled, phosphorous tin bronze. These slide bronze thrust washers are specifically engineered to withstand heavy loads and provide excellent shock resistance. The entire bearing sliding surface features lubrication pockets that create a lubricating film, reducing friction during both startup and operation.

ZR-090W is designed for radial, oscillating, and axial movements, making it particularly suitable for medium to high load applications.

Material: CuSn8P0.3 (DIN ISO 4382-2:1991)

ZR-090W bronze washers utilize high-density bronze strips to roll spherical oil pockets as material structure. We can manufacture rolled bronze bearings with diamond oil pockets, round oil pockets, and smooth surfaces based on customer requirements.

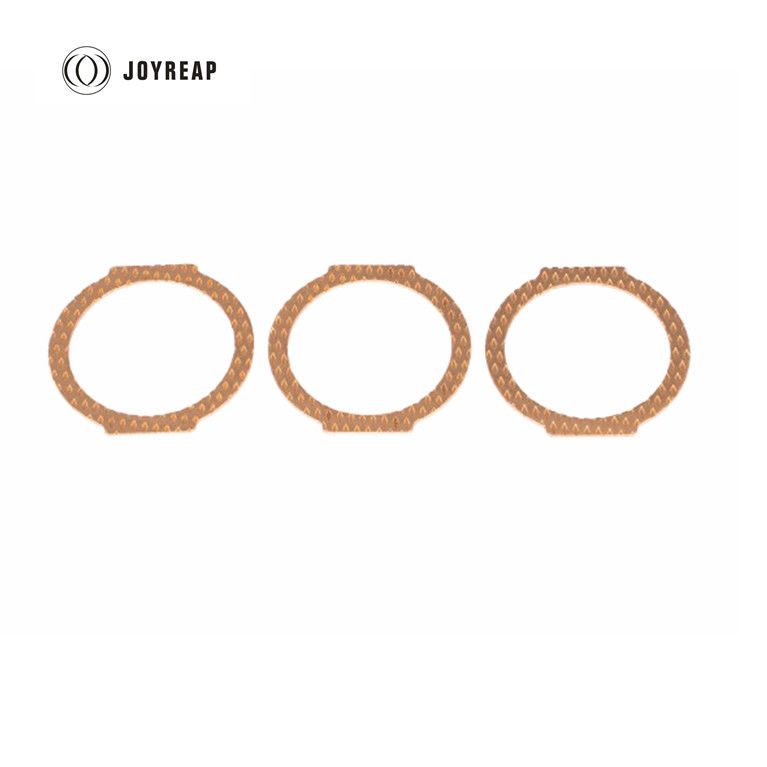

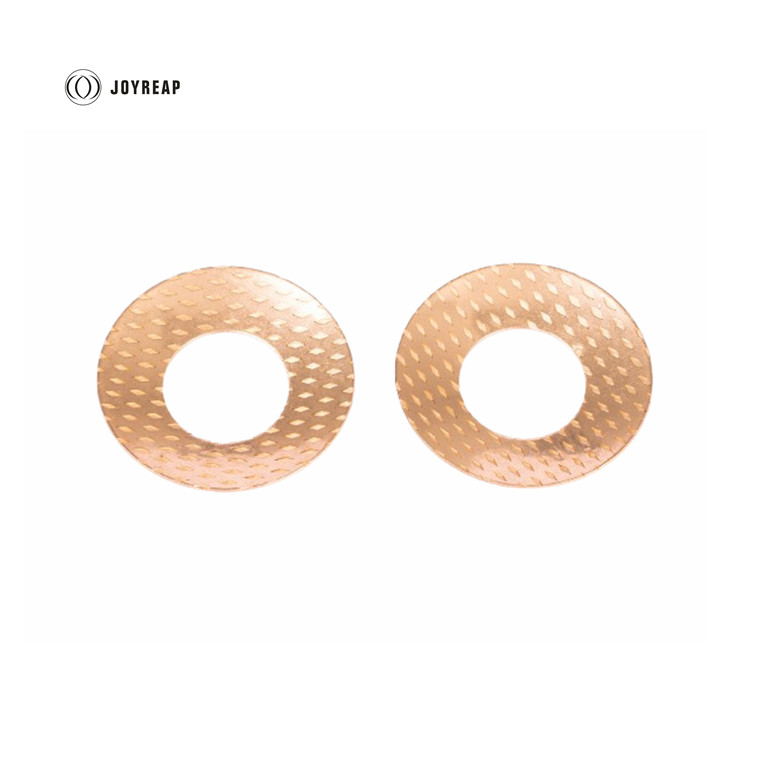

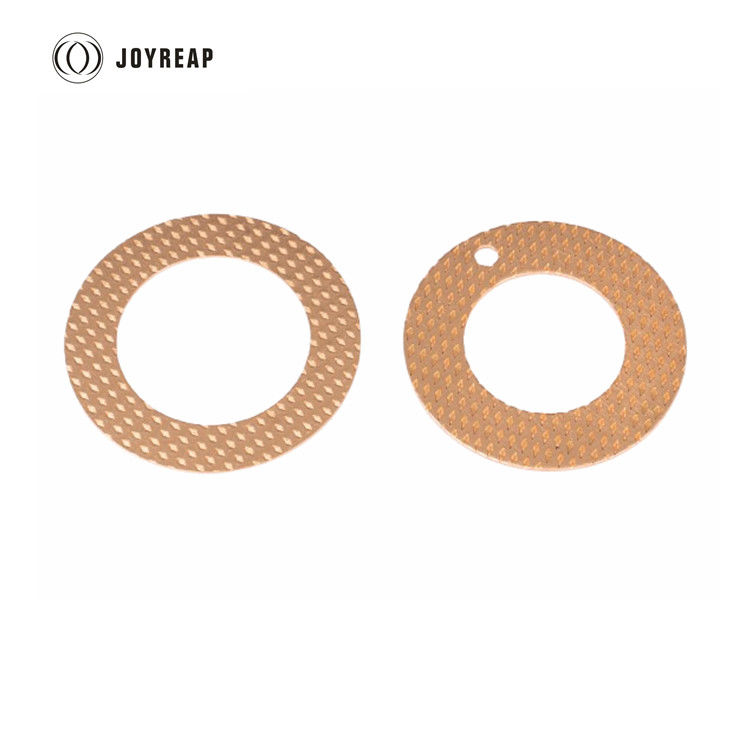

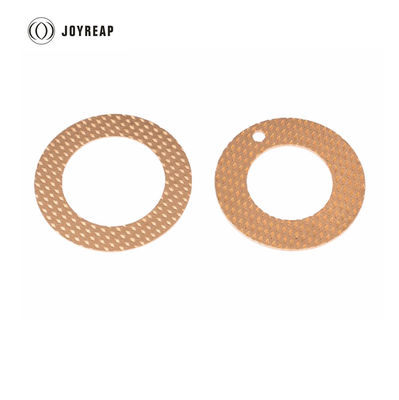

• Diamond Oil Pocket

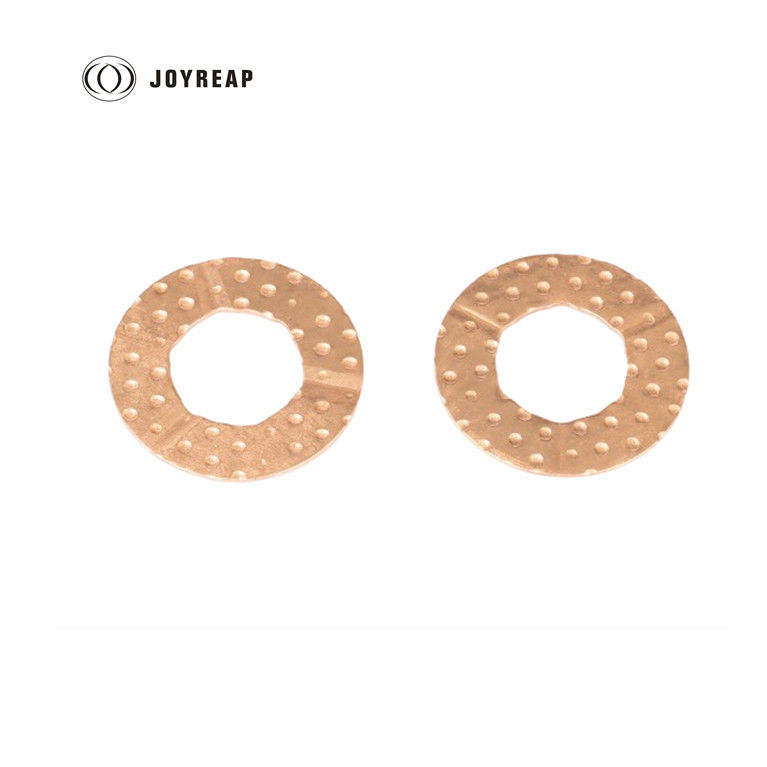

• Round Oil Pocket
• Smooth Surface
• Oil Pocket with oil grooves

• Surface can incorporate spherical or diamond-shaped indentations or linear oil grooves
• Particularly suitable for oscillating bearings
• High load capacity and long service life
• Wide temperature range operation
• Easy to assemble and install
• Performs well in dirty environments
• More cost-effective than traditional bronze bushings

ZR-090W bronze thrust washer is widely used in forestry and construction machinery, agricultural machinery, cranes, forklifts, hoisting equipment, and various industrial applications.

• Housing ØH7
• Thrust Washer inner-Ø after mounting H9
• Shaft tolerance f7
• Housing: Mounting bevel min. 1.5 mm x 15-45°
• Shaft Material: Steel, hardened or untempered, surface roughness ≤ Rz 4-6
• Shaft: Mounting bevel 5 mm x 15°, edges rounded
• The application of an adequate force fitting mandrel is advisable
• Grease lubrication of the outer surface may be necessary when mounting
• Stick-in: Adhesive should not contact the sliding surface

023196, 04-500204, 4500206, 023188, 04-500241, 4500241, 023187, 4500243
