WF-WB800 Rolled Flanged Bronze Bearing Bushing With Lubricating Oil Pockets

WF-WB800 Rolled Flanged Bronze Bearing Bushing with Oil Pockets

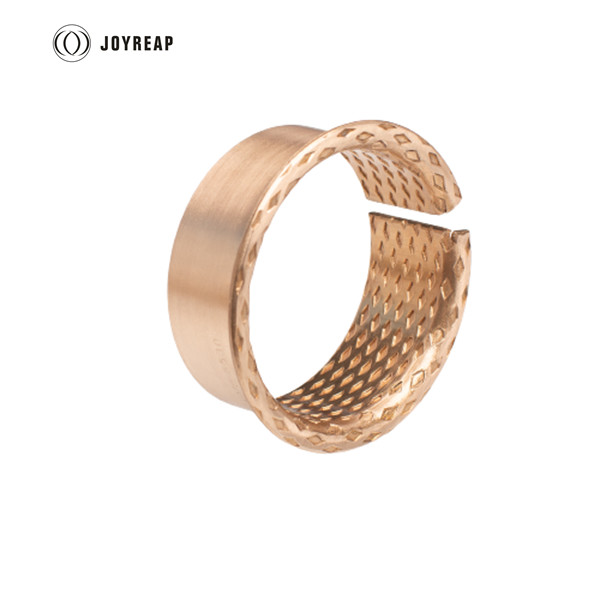

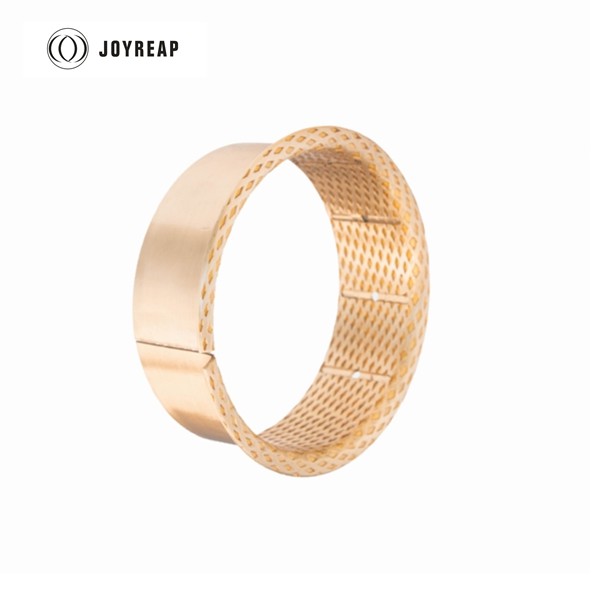

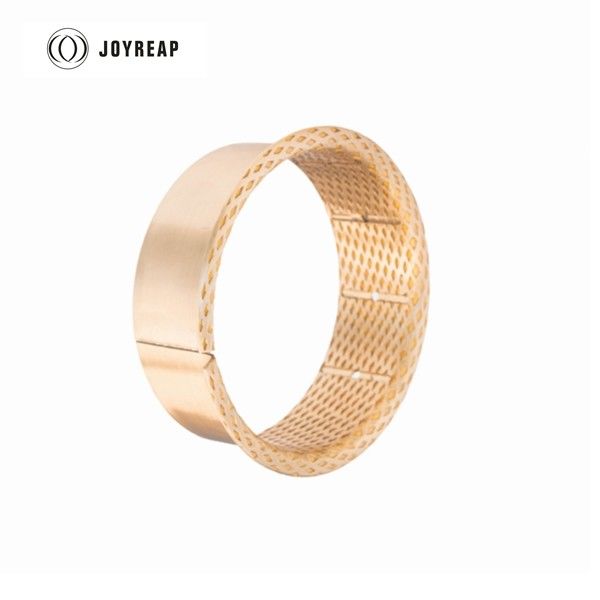

ZR-090F Flanged bronze bushing is manufactured of a cold formable homogenous bronze, which because of this will obtain exceptional material properties. The execution of the flange permits that the bearing also can carry axial loads. The standard sizes are fitted with diamond-shaped lubrication indents on the bearingsurface.

These indents serve as lubricant reservoirs i.a. to rapidly build up a lubrication film in the moment of start and therewith reduce the start friction. The properties of the WB700-material, together with the procedure of wrapping and calibration, make this type of bearing especially suitable for constructions, where medium or high loads and relatively slow movements are occurring

This type of bronze bearing also called FB090 Flanged bronze sliding bearing, WB WF 800 bronze bearing,PRM bronze wrapped plain bearings,MBZ-B09 Plain bronze bearing with collar,BMZ Bronze flanged self lubricating bearing, BRM-10 flanged bronze sliding bearings and etc.

• Can tolerate high loads and blows
• Works well, even in dirty environments
• The stamped lubrication indents/holes on the sliding surface provide good lubrication characteristics
• Good thermal dissipation
• A broad range of dimensions is held in stock

Operation Performance

Application

Mounting Suggestion

• Housing ØH7

• Bushing inner-Ø after mountingH9

• Shaft tolerance f7

• Housing: Mounting bevel min. 1.5 mm x 15-45°

• Shaft Material: Steel, hardened or untempered, surface roughness ≤ Rz 4-6

• Shaft: Mounting bevel 5 mm x 15°, edges rounded

• The application of an adequate force fitting mandrel is advisable. Grease lubrication of the outer surface may

• be necessary when mounting.

• Stick-in: Adhesive should not contact the sliding surface
