Detail Information

Description:	Wrapped Bronze Sleeve Bearing Bushing	Material:	CuSn8P0.3, CuSn6P
Specification:	Standard, Customomized	Application:	Agriculture
Lubricating:	Oil Or Oil Grease	Bush Type:	Sleeve Bushing, Flanged, Thrust Washer, Plate
Highlight:	Slide Self Lubricating Bronze Bushing , Self Lubricating Bronze Bushing , Wrapped Plain Bronze Bearings

Product Description

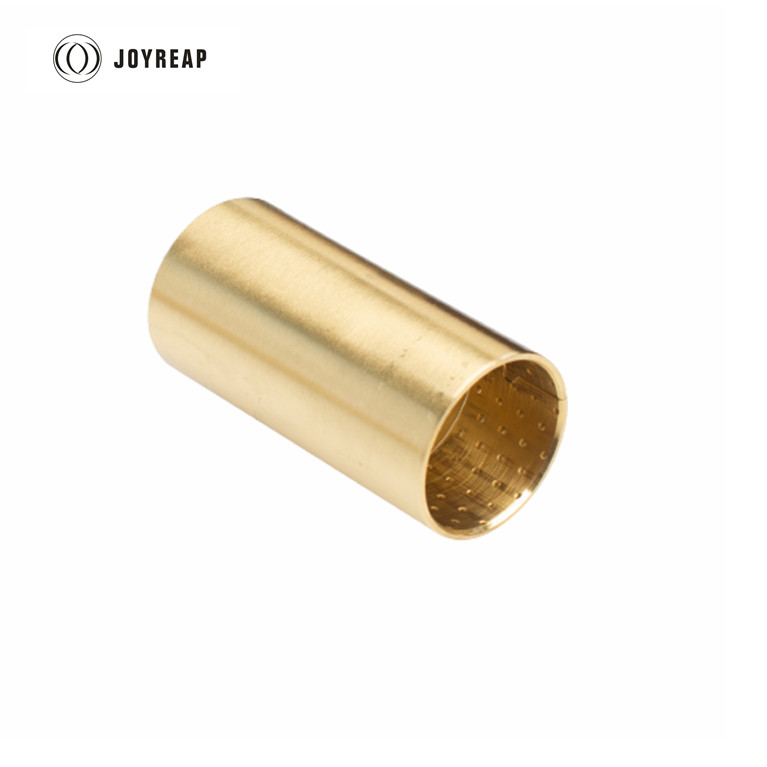

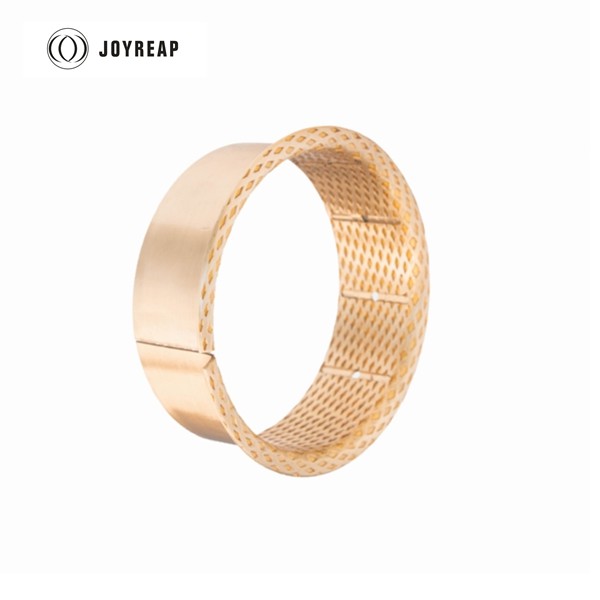

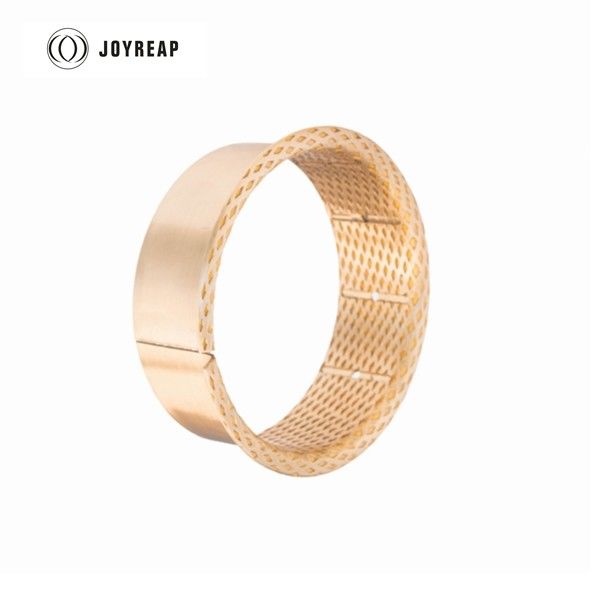

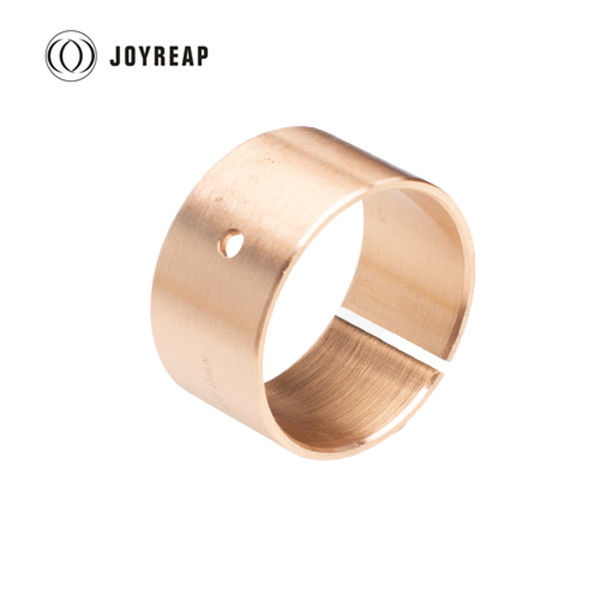

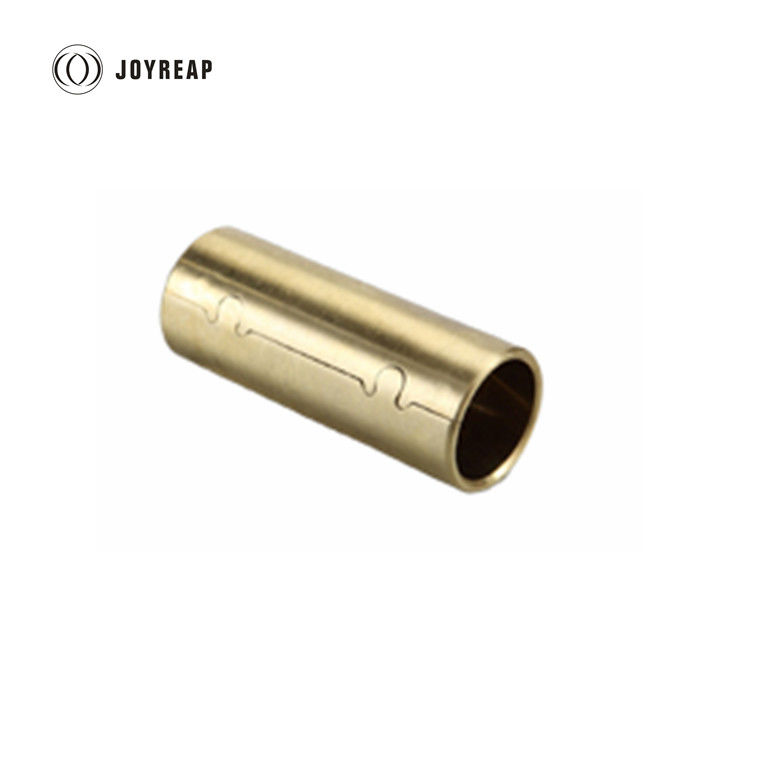

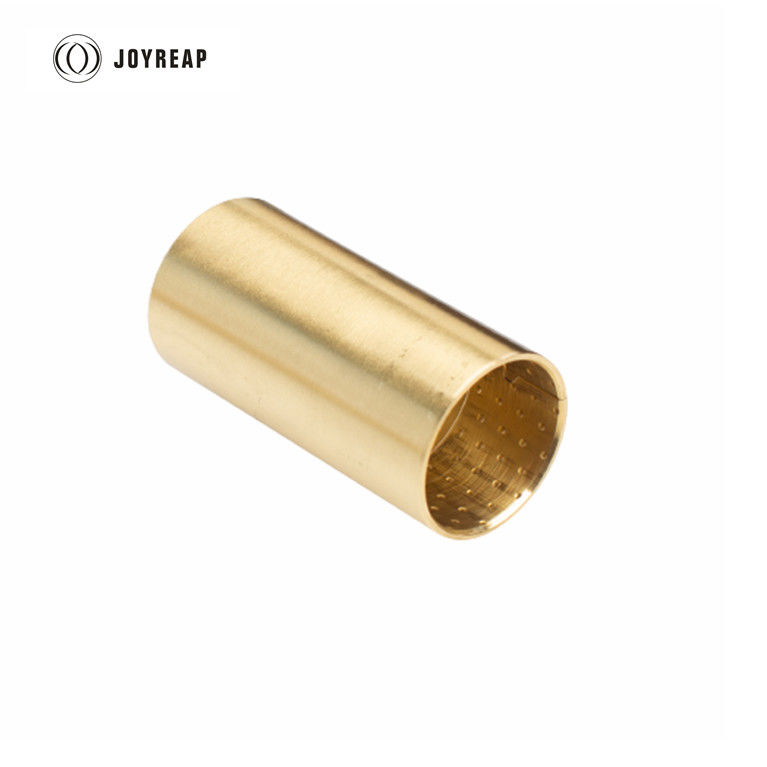

Rolled Bronze Bushing Bearing for Agriculture Spare Parts

ZR-090S bronze bushing is made from high grade alloyed, hot rolled, phosphorous tin bronze. The slide bronze bearings are especially designed to withstand heavy loads and to be shock-resistant. The entire bearing is made of smooth inside surface. ZR-090S is intended for radial, oscillating and axial movements and are especially suited for medium to high loads.This type of bronze bearing also called FB090 bronze sliding bearing, WB800 bronze bearing,PRM bronze wrapped plain bearings,MBZ-B09 Plain bronze bearing,BMZ Bronze self lubricating bearing, BRM-10 bronze sliding bearings and etc.

Material Structure

Material: CuSn8P0.3 (DIN ISO 4382-2:1991)

ype	Cu%	Sn%	P%
ZR-090 Bronze Bushing	91.3	8.5	0.2

Materail chemical composition refer to the standard of DIN17662 ISO 4382-2: 1991; CW453K
The actual composition proportion is allowed to up or down in certain range based on standard

Operation Performance

ZR-090S Bronze bushings	Performance
Dry Operation	Poor
Lubricated Operation	Fair
Greased Operation	Good
Machinable	Consult with Applications Engineer
RoHS Compliant	Compliant

Shapes & forms

Plain bronze cylindrical bearings, flanged bronze bearings, bronze thrust washers, sliding plates.

Technical Data

Max. Load	Static	120N/mm²	Elongation	40%
Max. Load	Dynamic	40N/mm²	Operation Temperature range	-100℃~+200℃
Max. Speed (lubricated)		2m/s	Friction coefficient	0.08~0.25
Max. PV		2.8N/mm²*m/s	Thermal conductivity	58W(m*K)-1
Tensile Strength		450N/mm²	Coefficient of thermal expansion	18.510-6K-1
Alloy Hardness		HB 110-150

We make a lot of bronze bearing for agriculture industry. Here comes the OEM Code we often make for your reference

Item	Description	OEM Code	Brand
1	Claas Bronze Bush	602278.0	Claas
2	Claas Bronze Bush	6494310	Claas
3	Claas Bronze Bush	649913	Claas
4	Claas Bronze Bush	667323	Claas
5	Claas Bronze Bush	750423	Claas
6	Claas Bronze Bush	44896.0	Claas
7	Claas Bronze Bush	960281	Claas
8	Axle Bronze bushing	0009268170	Claas
9	Claas Baler Bushing	808178	Claas
10	Claas Brone Bush	CI148888	Claas
11	CHN Bronze Bush	811403530	CHN
12	CHN Flange Bush	CI137401	CHN

Tag:

Place of Origin:	China
Brand Name:	PVB
Certification:	ISO9001;IATF 16949
Model Number:	ZR-090S self lubricating bronze sleeve bushings

Minimum Order Quantity:	50
Packaging Details:	cartons+wooden pallets
Delivery Time:	10-20 days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	500,000PCS/month
