Detail Information

Description:	Bronze Front Bushing	Material:	CuSn8P
Other Code:	WB800,FB090,BRM	Application:	Construction, Agriculture
Advantages:	Anti-wear, Long Service Life	OEM Code:	88645009,85323159
Highlight:	Front Bronze Bearing Bushing , WB800 Bronze Bearing Bushing , Bronze Bearing Bush Sleeve

Product Description

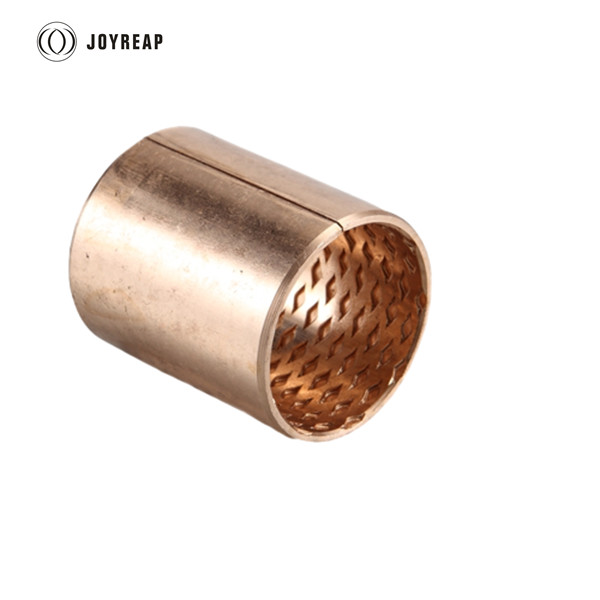

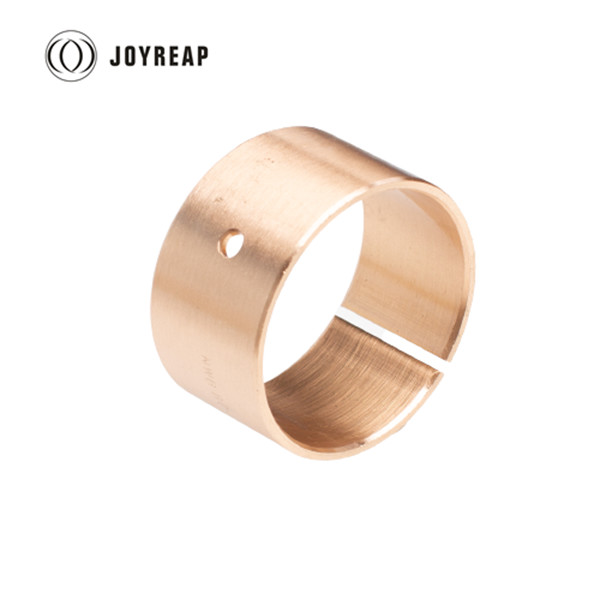

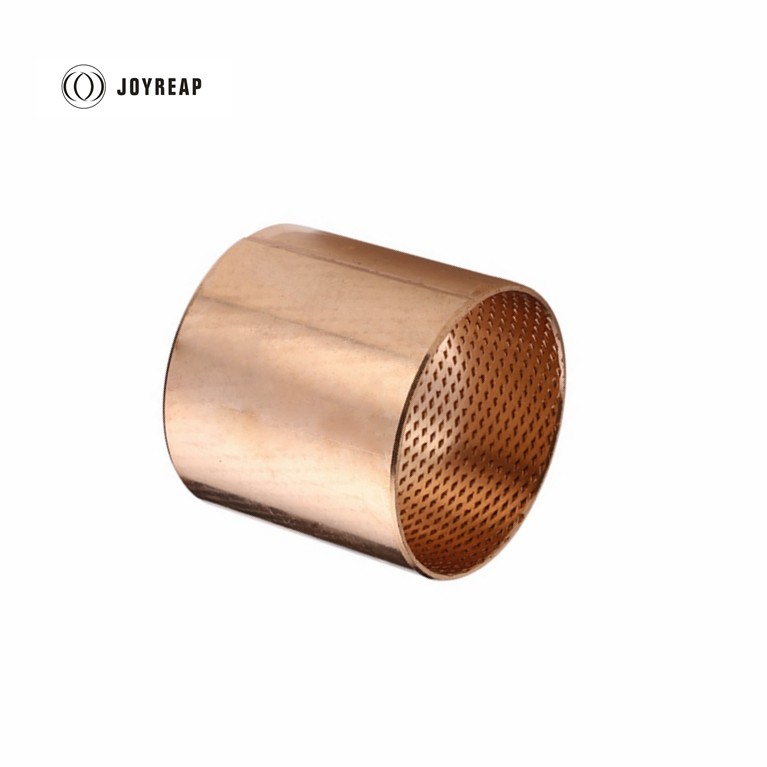

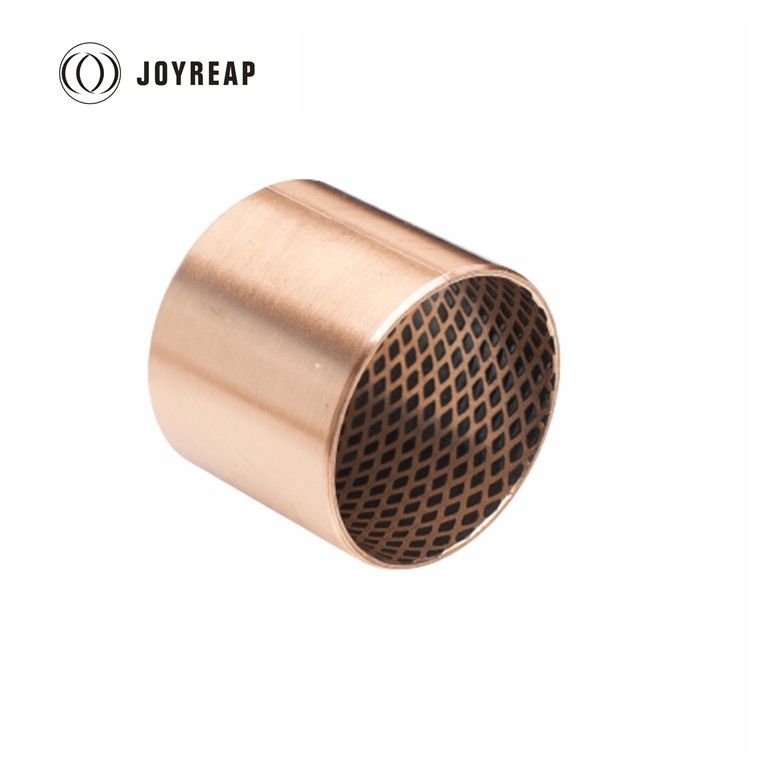

Sandvik Tamrock 88645009 Front Bushing Rock Drill Spare part,WB800 Bronze Rolled Sleeve Bushing

Rolled bronze bearings are manufactured of a cold formable homogenous bronze, which because of this will obtain exceptional material properties. The execution of the flange permits that the bearing also can carry axial loads. The standard sizes are fitted with diamond-shaped lubrication indents on the bearingsurface.

These indents serve as lubricant reservoirs i.a. to rapidly build up a lubrication film in the moment of start and therewith reduce the start friction. The properties of the material, together with the procedure of wrapping and calibration, make this type of bearing especially suitable for constructions, where medium or high loads and relatively slow movements are occurring

Material

Material: CuSn8P0.3 (DIN ISO 4382-2:1991)

Type	Cu%	Sn%	P%
ZR-090 Bronze Bushing	91.3	8.5	0.2

Materail chemical composition refer to the standard of DIN17662 ISO 4382-2: 1991; CW453K
The actual composition proportion is allowed to up or down in certain range based on standard

Characteristics

Surface can be incorporated with spherical of diamond shaped indentations or oil grooves linear. Particularly suitable for oscillating bearing.
High load capacity and long life.
Wide temperature range
Easy to assemble
Works well in dirty environments
Cheap than traditional bronze bush, cost saving.

Application

Wrapped bronze bushing is widely used in Forest- and constructional machinery, agricultural machinery, cranes, forklifts, hoisting equipment etc.

Technical Data

Max. Load	Static	120N/mm²	Elongation	40%
Max. Load	Dynamic	40N/mm²	Operation Temperature range	-100℃~+200℃
Max. Speed (lubricated)		2m/s	Friction coefficient	0.08~0.25
Max. PV		2.8N/mm²*m/s	Thermal conductivity	58W(m*K)-1
Tensile Strength		450N/mm²	Coefficient of thermal expansion	18.510-6K-1
Alloy Hardness		HB 110-150

We often made this type of bushing for Sandvik

OEM Code	Description	Application
09256478	Rear Bushing (Piston Front)	Sandvik drifter models 600-800
55026798	Bushing	Sandvik drifter models 600-800
55026797	Bushing	Sandvik drifter models 600-800
15226648	Bushing	Sandvik drifter models 600-800
55042549	Bushing	Sandvik drifter models 600-800
55026799	Bushing	Sandvik drifter models 600-800
88645009	Front Bushing	Sandvik drifter models 600-800
55026146	Bearing Bushing	Sandvik
55170642	Bearing Bushing	Sandvik
15276688	Bearing Bushing	Sandvik
55012953	Bushing (65/60)	Sandvik DX600, 2008 - 2018
31453478	Bushing (160x140x90)	Sandvik DX600, 2008 - 2018
55042226	Bushing (80/75)	Sandvik DX780, 2008 - 2018
2971810	Bush	Sandvik
88780239	Bronze Bushing	Sandvik
88645009	Front Bushing	Sandvik
85323159	Bushing	Sandvik
55035050	Bearing Bushing	Sandvik
15271108	Bearing Bushing	Sandvik
15027638	Bearings bushing	Sandvik
15021838	Bearings bushing	Sandvik
15167118	Bushing	Sandvik
15114688	Bushing	Sandvik
15052008	Bushing	Sandvik
55057616	Plain bronze bearing	Sandvik
88574639	Sliding Bearing	Sandvik

Tag:

Place of Origin:	China
Brand Name:	Joyreap
Certification:	ISO,IATF16949
Model Number:	ZR-090

Packaging Details:	Cartons+Wooden Pallets
Delivery Time:	30 days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	300,000PCS/Month
