Sliding Wrapped Bronze Bearings Rolled Bearing Bronze Bushing With Oil Seals

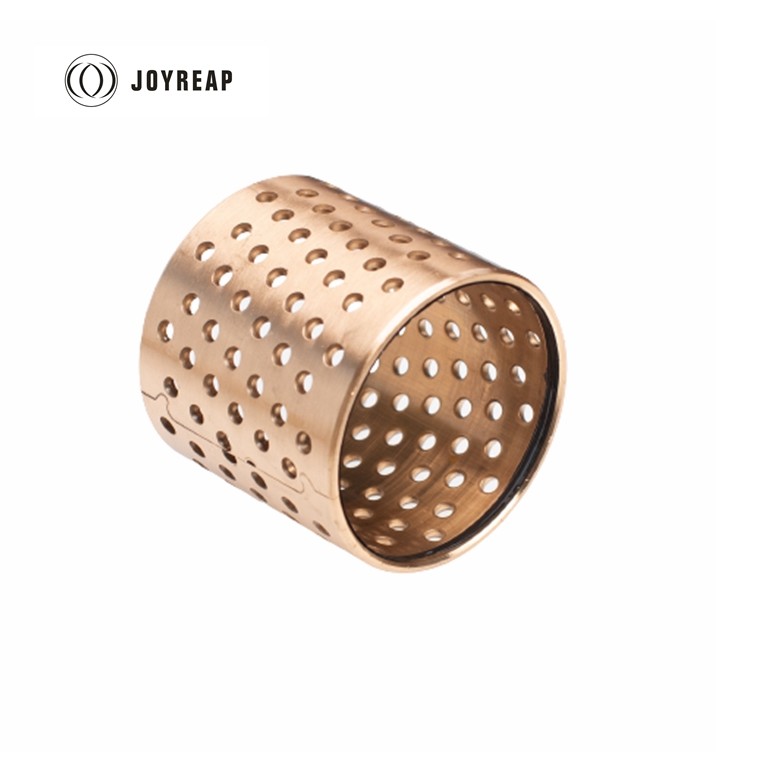

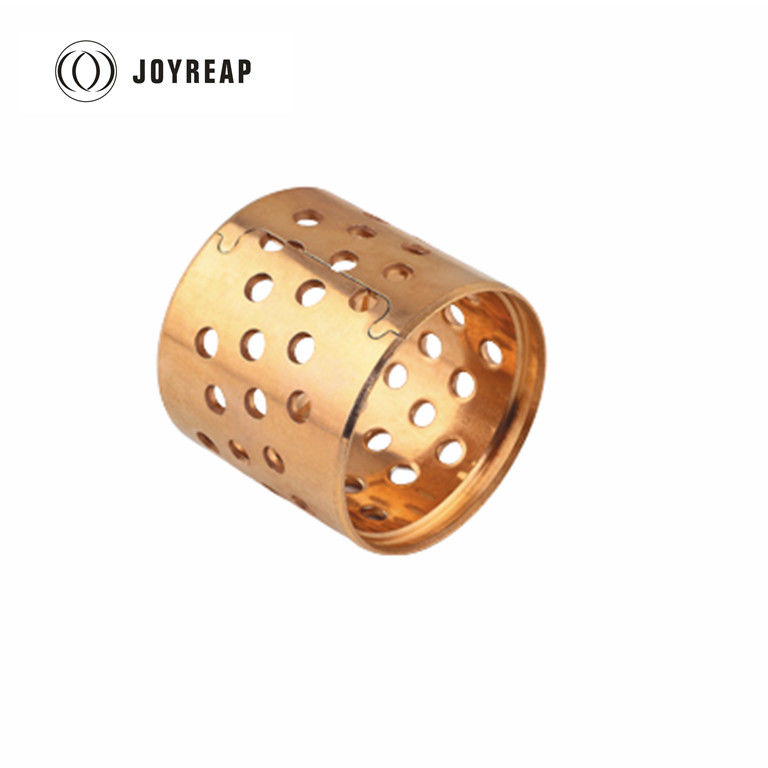

ZR-094 wrapped bronze sliding bearing is made of specially formulated high-density bronze alloy with through oil holes and oil seals on both sides. Oil seals on both sides is specially designed to against humidity.This type of bronze bearings also called WB802T bronze bearing, bronze sliding bearing.

• High load capacity, good wear-resistance.
• Good stability under load, particularly suitable for oscillating bearing.
• Grease depots for long-term lubrication.
• Oil seals supply good performance of anti-dust
•

• Standard straight bronze bearing
• Customized design can be made

ZR-094 bronze bearing bushing is widely used for construction machines, crane parts and forest machine

Tolerance Details

• Housing H7

• Bushing inner- after mountingH9

• Shaft tolerancef7

Mounting Suggestion

• Housing: Mounting bevel min. 1.5 mm x 15-45°

• Shaft Material: Steel, hardened or untempered, surface roughnessRz 4-6

• Shaft: Mounting bevel 5 mm x 15°, edges rounded

• The application of an adequate force fitting mandrel is advisable. Grease lubrication of the outer surface may be necessary when mounting.

• Stick-in: Adhesive should not contact the sliding surface
