Grey Phenolic Resin Guide Ring Fabric Reinforced Mos2 Material

Basic Information

Place of Origin:	China
Brand Name:	Joyreap
Certification:	ISO,IATF16949
Model Number:	PFC-50

Minimum Order Quantity:	20 pcs
Packaging Details:	Wrapped the Wear Ring with plastic paper and put them into export cartons or wooden case
Delivery Time:	25-30 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50000/month

Get Best Price Contact Now

Detail Information

Description:	Grey Guide Ring	Material:	Composite Fiber Fabric
Advantages:	High Load,heat Resistance	Color:	Grey
Name:	Phenolic Wear Ring
Highlight:	Grey Phenolic Resin Guide Ring , Phenolic Resin Guide Ring

Product Description

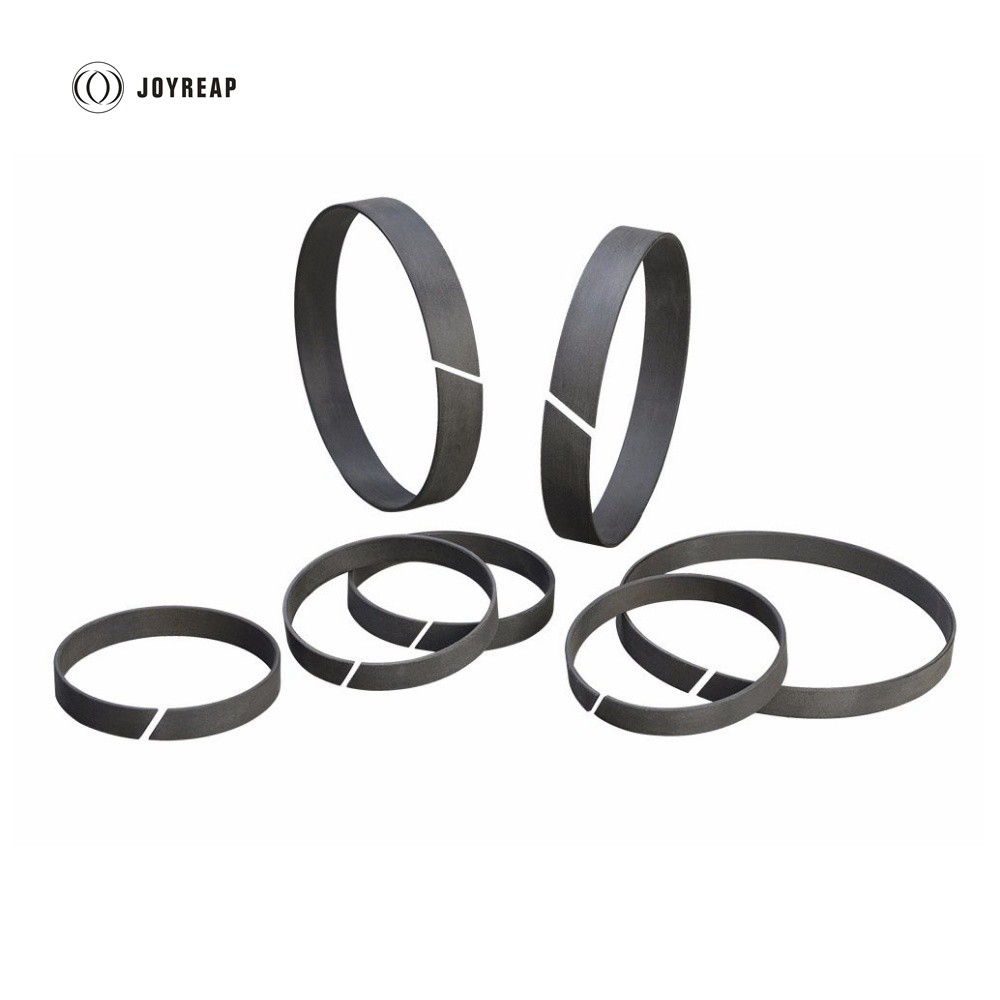

Grey Guide Phenolic Wear Ring Fabric Reinforced Mos2

PFC-50 high strength fabrice resin guide ring is composed of high quality cotton fabric, solublephenolic resin and MOS2 and processed under certaintemperatureand pressure. PFC-50 grey guide ring has good mechanical strength, wear resistance and heat resistance, capable of absorbing semi-static high shock loading and slight rotate loading.

Material

Cotton Fabric+solublephenolic resin+MOS2

Advantages

wear resistance
heat resistance
Low maintenance

Application

Engineering Machinery Guide Rings, Bushings, Shaft Sleeves
Water Conservancy Machinery Bearings
Hydraulic Machinery, Forging Machinery Tool Guide Bushings
Marine Bearings

Technical Data

Specification	Color	Density 3(g/㎡)	Tensile strength	Compressive strength		Hardness	Coefficient of friction		Temperature
									(℃)

				Parallel to the laminated plane	Vertical to the		Dry	Oil lubrication
					laminated plane
PFC-50	Gray	1.2-1.4	≥45 (MPa)	≥140	≥330	90	0.2-0.3	0.12	-40 ～ +130
