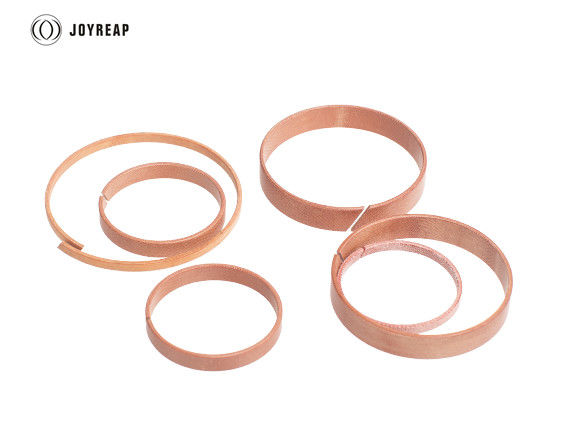

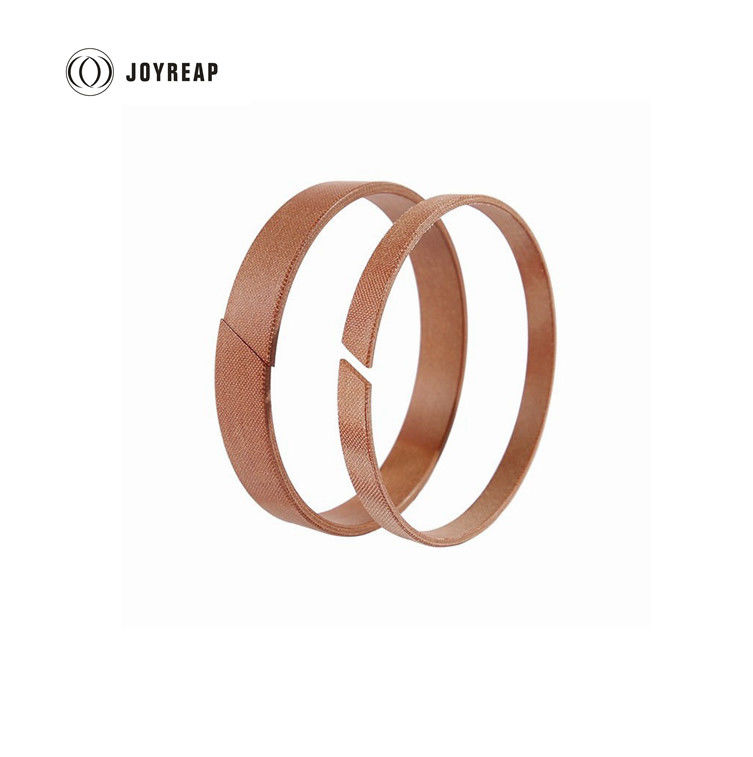

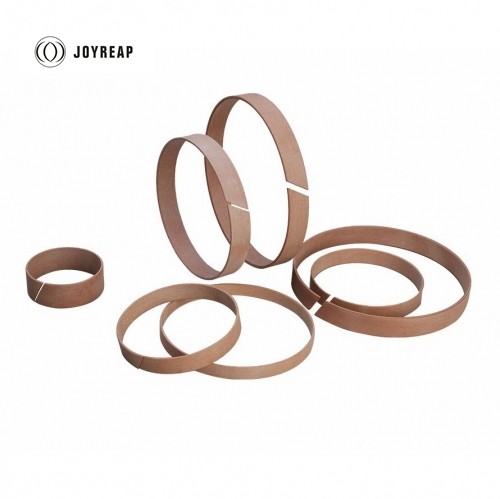

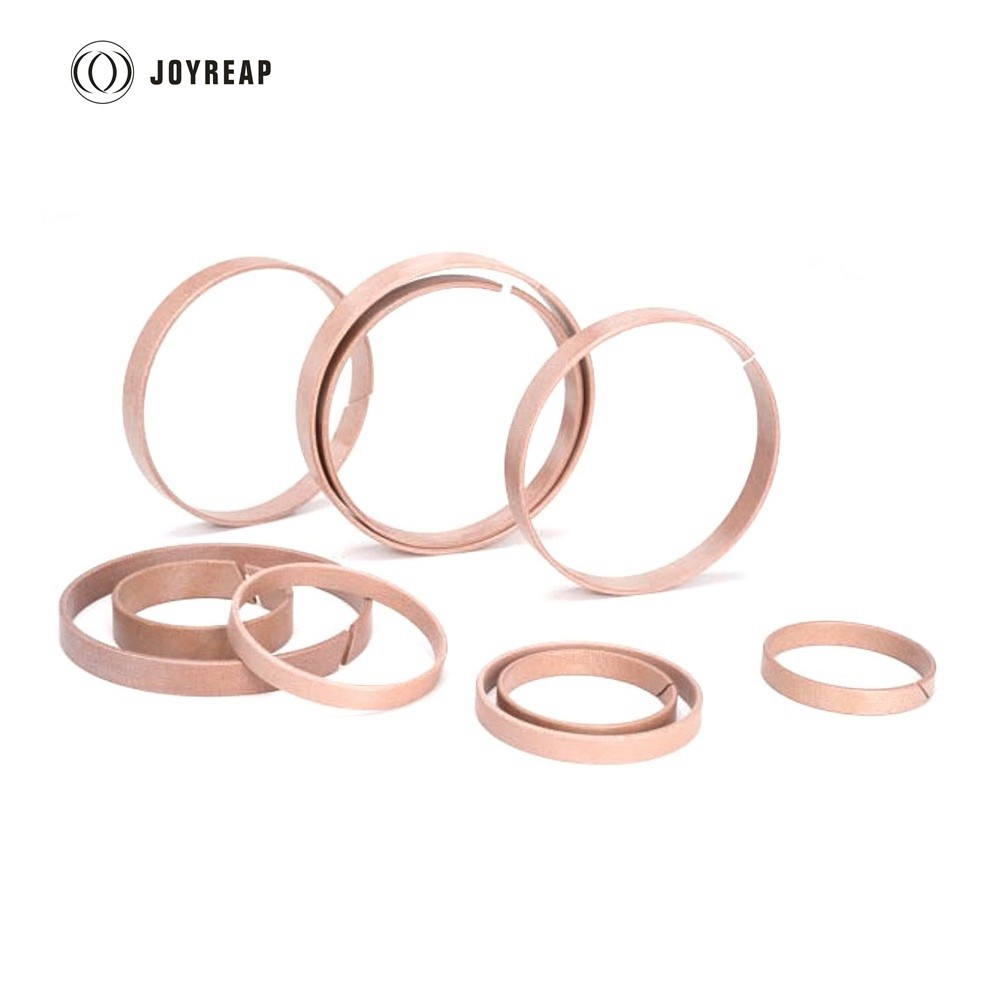

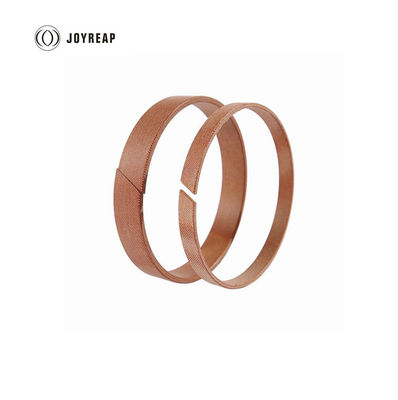

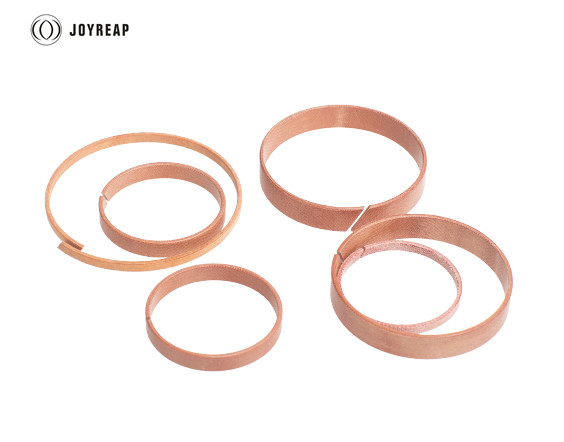

Name: High Strength Phenolic Wear Ring Brown Guide Ring 40mpa Heat Resistance
Brand: Jiaxing Joyreap Precision Machinery Co.,Ltd
SKU: PFC-30
Availability: InStock

High Strength Phenolic Wear Ring Brown Guide Ring 40mpa Heat Resistance

Basic Information

Place of Origin:	China
Brand Name:	Joyreap
Certification:	ISO,IATF16949
Model Number:	PFC-30

Minimum Order Quantity:	1pcs
Packaging Details:	Wrapped the Wear Ring with plastic paper and put them into export cartons or wooden case
Delivery Time:	25-30 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50000/month

Get Best Price Contact Now

Detail Information

Name:	Phenolic Wear Ring	Description:	Guide Ring
Material:	Composite Fiber Fabrice	Advantages:	High Load,heat Resistance
Color:	Brown
Highlight:	High Strength Phenolic Wear Ring , Phenolic Wear Ring Brown , Guide Ring 40mpa

Product Description

High Strength Support Guide Phenolic Wear Ring 40mpa

PFC-30 high strength fabrice resin guide ring is a kind of composite material of high strength, taking thermosetting, linear phenolic as basic materials, and taking high quality and strength polyester fiber fabric as strengthening material. It is composed by advanced technology under the certain temperature and pressure which makes the guide rings with some excellent features, such as high load sustainability, heat resistance, wear resistance, excellent dimensional stability, flexibility and shock resistance.

Material

linear phenolic+Fiber Fabric

Advantages

High load sustainability
Heat resistance, wear resistance,
Excellent dimensional stability
Flexibility and shock resistance

Application

Hydraulic support, guide rings and support rings of hydraulic cylinders
Guiding sleeves for the vertical pillar of hydraulic machineries and forging press
Bushings for the pivot axles for vehicles and engineering machineries

Technical Data

Specification	Color	Density 3(g/c㎡)	Tensile strength	Compressive strength		Hardness	Coefficient of friction		Temperature
									(℃)

				Parallel to the laminated plane	Vertical to the		Dry	Oil lubrication
					laminated plane
PFC-30	Brown	1.3	≥40 (MPa)	≥140	≥320	92	0.45	0.11	-40 ～ +130
