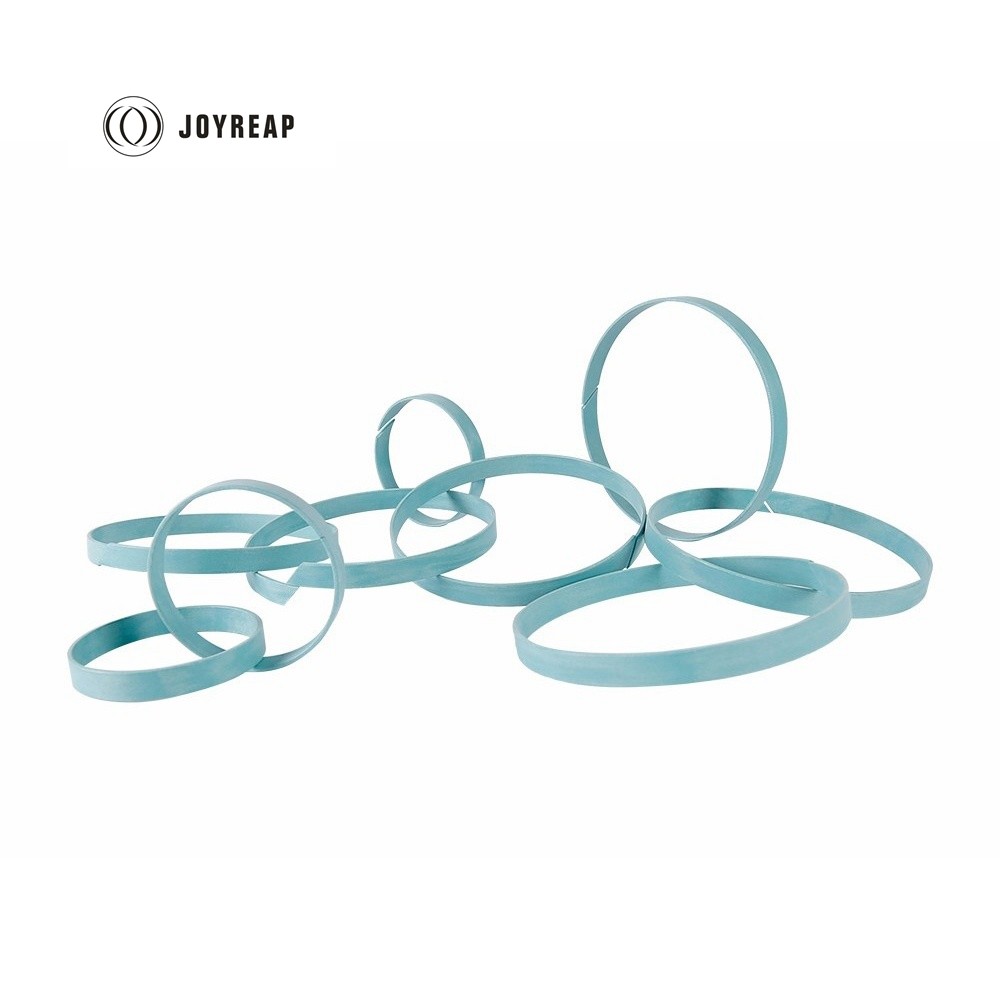

Low Friction Self Lubricating O Ring Green Guide Ring Reinforced Polyester Resin

Basic Information

Place of Origin:	China
Brand Name:	Joyreap
Certification:	ISO,IATF16949
Model Number:	PFC-80

Minimum Order Quantity:	20 pcs
Packaging Details:	Wrapped the Wear Ring with plastic paper and put them into export cartons or wooden case
Delivery Time:	25-30 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50000/month

Get Best Price Contact Now

Detail Information

Name:	Phenolic Wear Ring	Description:	Green Guide Ring
Material:	Synthetic Fiber, Reinforced Polyester Resin And Self-lubricating Micro Powders	Advantages:	Low Friction,good Corrosive Resistance
Color:	Green
Highlight:	Low Friction Self Lubricating O Ring , Self Lubricating O Ring

Product Description

Green Low Friction Guide 320mpa Self Lubricating O Ring Reinforced Polyester Resin

PFC-80 is made of of synthetic fiber, reinforced polyester resin and self-lubricating micro powders. PFC-80 has features in low friction, high mechanical property, good corrosive resistance and low water absorption.

Material

Synthetic fiber+reinforced polyester resin+ self-lubricating micro powders

Advantages

Low friction, Anti-wear
anti-corossion
Anti-resistant
Low water absorption

Application

Guide rings
Bearings, Shaft sleeves, Bearing Bushes
Shipbuilding, Marine Components
Engineering Machinery Components
Hydroelectric Power Components

Technical Data

Part Number	Color	Density	Compressive strength	Friction coefficient(dry)	Temperature (℃)
Part Number	Color	3 (g/m³ )	(MPa)	Friction coefficient(dry)	Max.temp.	Min.temp.
PFC-80	Green	1.2-1.4	320	0.14	130	-40
