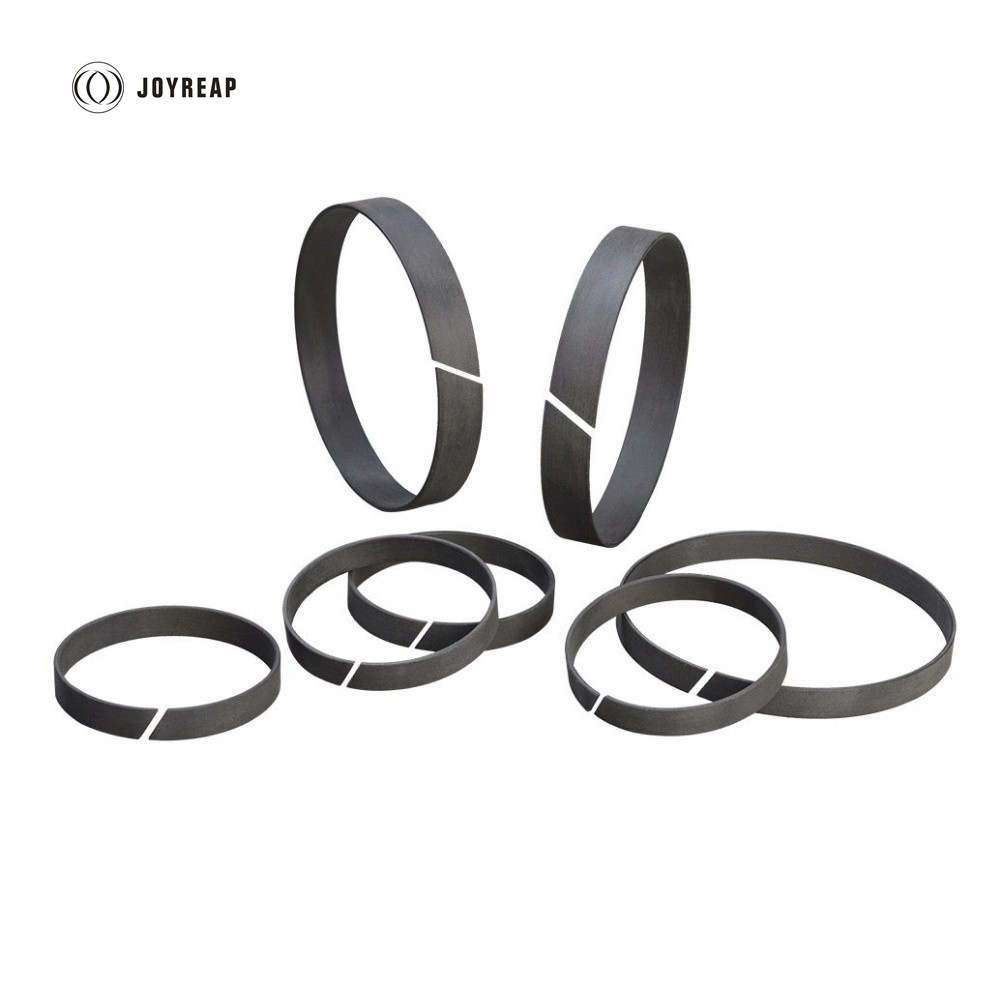

Name: Heat Resistance Phenolic Wear Ring Composite Fiber Guide Ring High Strength
Brand: Jiaxing Joyreap Precision Machinery Co.,Ltd
SKU: PFC-70
Availability: InStock

Heat Resistance Phenolic Wear Ring Composite Fiber Guide Ring High Strength

Basic Information

Place of Origin:	China
Brand Name:	Joyreap
Certification:	ISO,IATF16949
Model Number:	PFC-70

Minimum Order Quantity:	1pcs
Packaging Details:	Wrapped the Wear Ring with plastic paper and put them into export cartons or wooden case
Delivery Time:	25-30 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50000/month

Get Best Price Contact Now

Detail Information

Name:	Phenolic Wear Ring	Description:	Grey Guide Ring
Material:	Composite Fiber Fabric	Advantages:	High Load,heat Resistance
Color:	Grey
Highlight:	Heat Resistance Phenolic Wear Ring , Phenolic Wear Ring Composite Fiber , Guide Ring High Strength

Product Description

Heat Resistance Phenolic Wear Ring High Strength Composite Fiber Fabric Reinforced

PFC-70 high strength Fabric Reinforced Phenolic Resin brown Guide Rings is based on modified phenolic resin reinforced with ultra strong special fiber,added ith solid lubricants, processed under certajn temperature and pressure.Compare to other fiber-reinforced (cotton fiber, polyester fiber,polyamide fiber and so on) phenolic products.PFC-70 has excellent compressive,tensile,weat, fire,heat and chemical corosion resistant property,can adapt to the complex working conditions.

Material

modified phenolic resin+special fiber+solid lubricants

Advantages

excellent compressive
anti-corossion
Anti-resistant

Application

Guide ring
Back-up ring for mine, coal machinery and equipment
Spare parts for shipbuilding, marine machinery
Spare parts for water conservancym wind power equiment
Spare parts rof mooring system, offshore plattform

Technical Data

Part Number	Color	Density	Tensile Strength	Ultimate Compressive strength	Impact Strength	Rockwell Hardness	Coefficlent of Friction		Temperature
		g/cm2	MPa	MPa	j/m	HRM	Dry	Oil	℃
PFC-70	Grey	1.2-1.4	74	460	45	110
							0.15-0.25	0.07-0.12	40~+200
