Name: LRR-120 11019120 Bronze Bearing Ring Rear Alxe brass bushing bearing CE Front Axle Bushing C86300 Solid bronze bearing
Brand: Jiaxing Joyreap Precision Machinery Co.,Ltd
SKU: JDB-1U P10
Availability: InStock

LRR-120 11019120 Bronze Bearing Ring Rear Alxe brass bushing bearing CE Front Axle Bushing C86300 Solid bronze bearing

Basic Information

Place of Origin:	China
Brand Name:	Joyreap
Certification:	ISO,IATF16949
Model Number:	JDB-1U P10

Minimum Order Quantity:	100
Packaging Details:	Cartons+Wooden Pallets
Delivery Time:	30 days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	100 tons per month

Get Best Price Contact Now

Detail Information

Description:	Solid Bronze Bearing	Material:	C86300,SAE430B,CuZn25Al5
Lubrication:	Oil Or Grease	Feature:	Anti-wear
Name:	Solid Bronze Bushing Brass Bearing	Orign:	China
OEM Code:	11019120;11075398;11075556	Type:	Flanged, Collar
Advantage:	High Load, Oil Lubricated	Application:	Volvo Off Road
Highlight:	Rear Alxe brass bushing bearing , CE Front Axle Bushing , Solid bronze bearing Ring

Product Description

LRR-120 11019120 Bronze Bearing Ring Rear Alxe brass bushing bearing CE Front Axle Bushing C86300 Solid bronze bearing

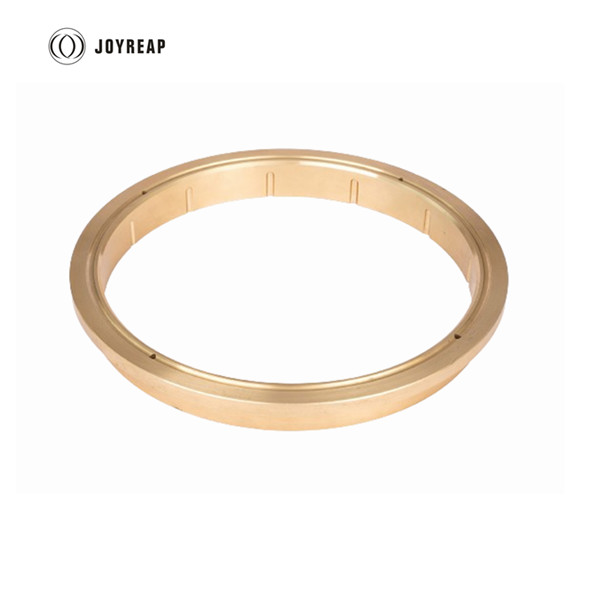

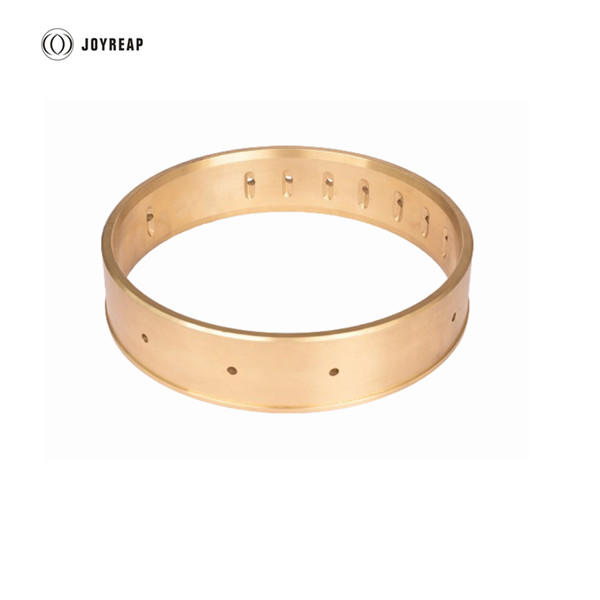

JDB-1U P10 Solid bronze bearing is made of high tensile brass with plain type or with oil grooves. This type of bushing is also called brass bushing bearing, C86300 solid bronze bearing, HTB1 CNC turned bronze bushing,SAE430B bronze sliding bearing and etc.

Material

CuZn25AI5Mn4Fe3

Material Chemical Composition
%	Cu%	Pb%	Sn%	Zn%	Fe%	Ni%	Al%	Mn%
Min.	60.00	0.00	0.00	22.00	2.00	0.00	5.00	2.50
Max.	66.00	0.20	0.20	28.00	4.00	1.00	7.50	5.00

Availability

Cylindrical cast bronze bushing, flanged solid bronze bushing, bronze thrust washer
Special designs solid bronze bearing can be made according to your design.

Application

Volvo Off Road

L110E, L120C, L120D, L120E
L90C, L90C OR, L90D, L90D OR

Volvo BM
L120C, L90C, L90C OR

Technical Data

Material	CuZn25Al5
Density	7.80
HB Hardness	≥210
Tensile Strength MPa	≥750
Yield Strength MPa	≥450
Elongation %	≥12
Thermal Expansion Coefficient	1.9x10*%/°C
Max. Operation Temp.	-40~+300°C
Max. load MPa	50
Max. speed m/s(Dry)	0.5
Max. speed m/s(Lubricated)	1
Max. PV (N/mm² *m/s)(Dry)	1.65
Max. PV (N/mm² *m/s)(Lubricated)	3.25

OEM Code for Volvo

LRR-120	11019120
BU-398	11075398
LRR-556	11075556
BU-959	4717959
LRR-123	11019123
LRR-787	2815787
LR-996	15117996
LRR-996	11121016
