Name: FU-2 Sintered Iron Bearing Customized Powder Metallurgy Bushing
Brand: Jiaxing Joyreap Precision Machinery Co.,Ltd
SKU: FU-2
Availability: InStock

FU-2 Sintered Iron Bearing Customized Powder Metallurgy Bushing

Basic Information

Place of Origin:	China
Brand Name:	Joyreap
Certification:	ISO,IATF16949
Model Number:	FU-2

Packaging Details:	Cartons+Wooden Pallets
Delivery Time:	30 days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	300,000PCS/Month

Get Best Price Contact Now

Detail Information

Description:	Sintered Iron Bearing	Lubrication:	Oil Impregnated
Material:	Iron+mineral Oil	Feature:	High Sliding Velocities,low Friction
Standard:	ISO 2795:1991	Application:	Motors, Power Tools
Highlight:	Sintered Iron Bearing Customized , Sintered Iron Bearing , Powder Metallurgy Bushing

Product Description

FU-2 Sintered Iron Powder Metallurgy Bushing

FU-2 sintered iron bearing bushing made of made from cast iron or a comparable material, and are 18% - 20% impregnated with mineral oil, mold pressed in high pressure, sintered with high temperature and oil soaked in vacuum. Oil Impregnated sintered steel bearing is also called sintered iron bushing, Oilite bearings and etc

Material Structure

Porous Sintered iron

Oil-Impregnated

Advantages

Prevent shaft seizing with oil impregnated in
Similar wear resistance with copper powder material under low load condition

Availability

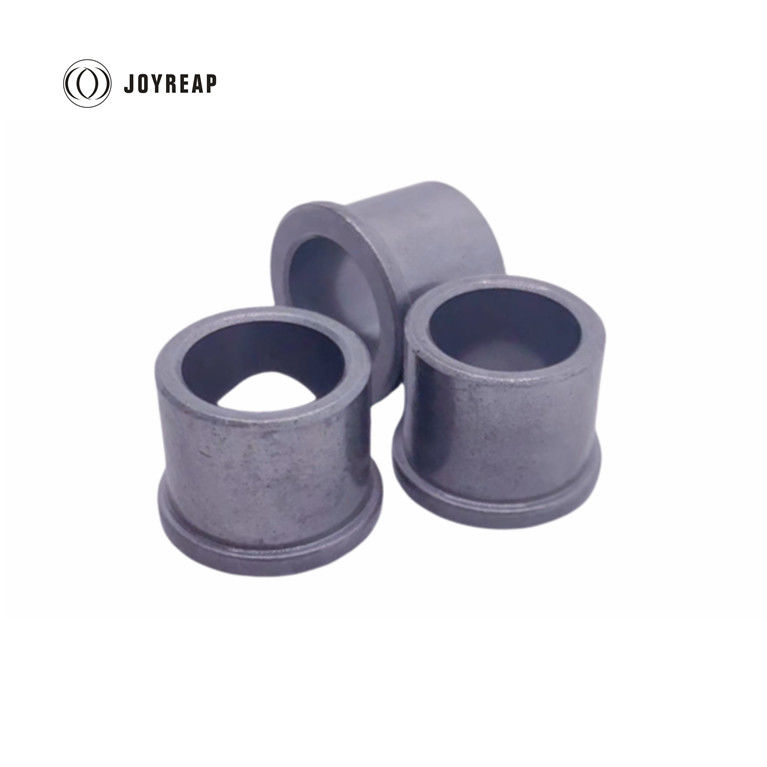

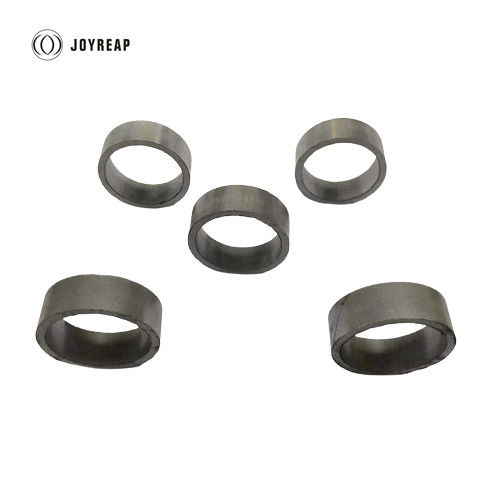

Straight sintered iron bushing

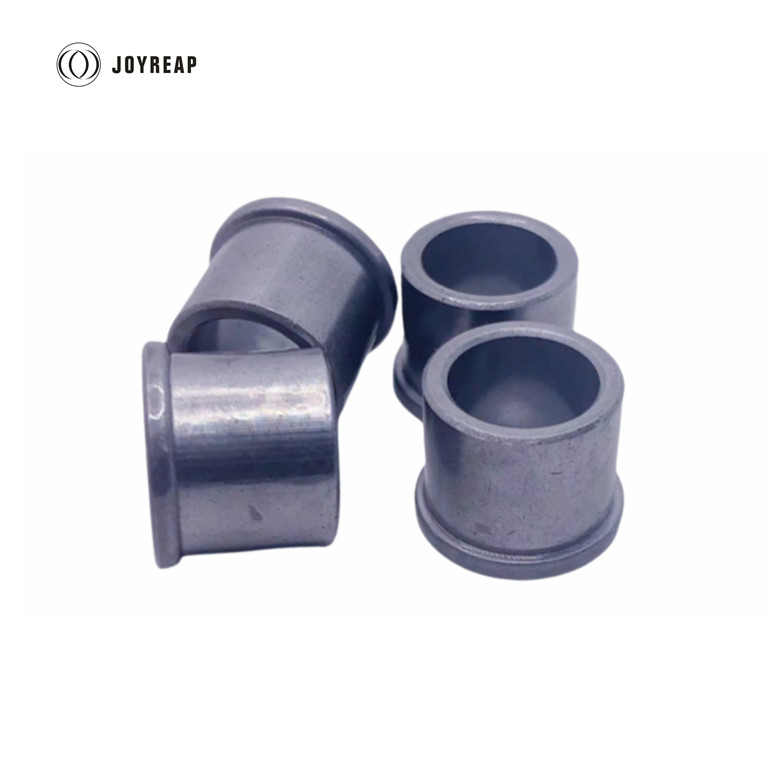

Flanged sintered iron bushing

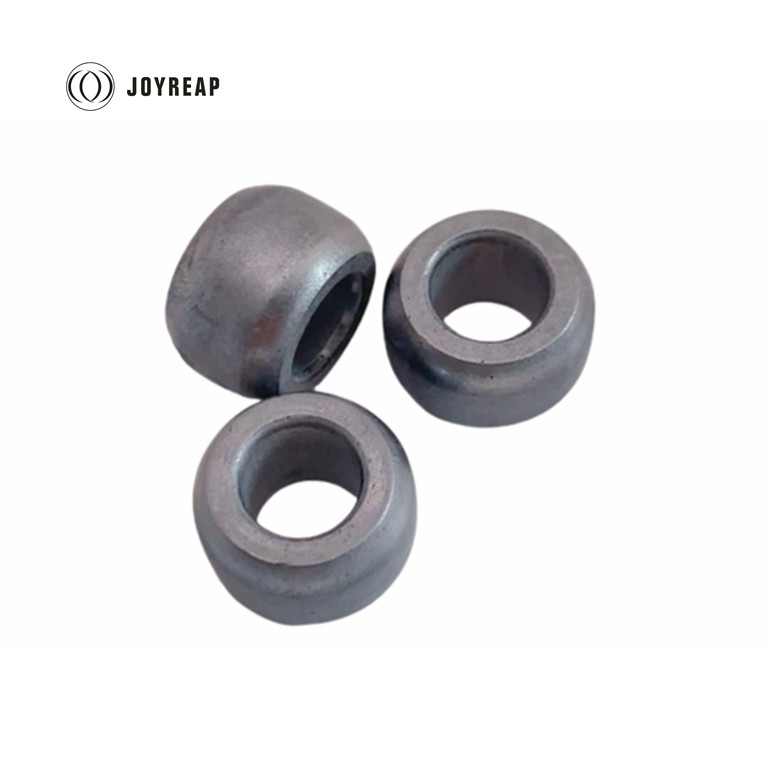

Customized Bushing

Application

Textile machinery
Shock absorbers for automobile and motorcycle
Sliding parts of power tools
In static environment, it can be used as the base of guide positioning bushing

Technical Data

Material: Iron
Applicable temperature : -80℃-160℃
Max load pressure: 45N/mm²
Friction Coef. μ: 0.15-0.20
