Name: Customized Bearing Spare Parts Copper Iron Sintered Bronze Bushing
Brand: Jiaxing Joyreap Precision Machinery Co.,Ltd
SKU: FU-3
Availability: InStock

Customized Bearing Spare Parts Copper Iron Sintered Bronze Bushing

Basic Information

Place of Origin:	China
Brand Name:	Joyreap
Certification:	ISO,IATF16949
Model Number:	FU-3

Packaging Details:	Cartons+Wooden Pallets
Delivery Time:	30 days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	500,000PCS/Month

Get Best Price Contact Now

Detail Information

Description:	Sintered Bronze Iron Bearing	Material:	Iron+mineral Oil
Lubrication:	Oil Impregnated	Standard:	ISO 2795:1991.
Feature:	High Sliding Velocities,low Friction	Application:	Motors, Power Tools
Highlight:	Customized Bearing Spare Parts , Bearing Spare Parts Copper Iron , Sintered Bronze Bushing

Product Description

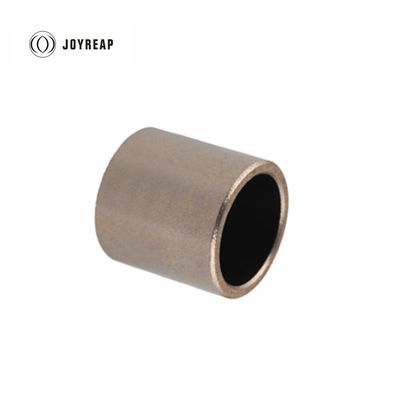

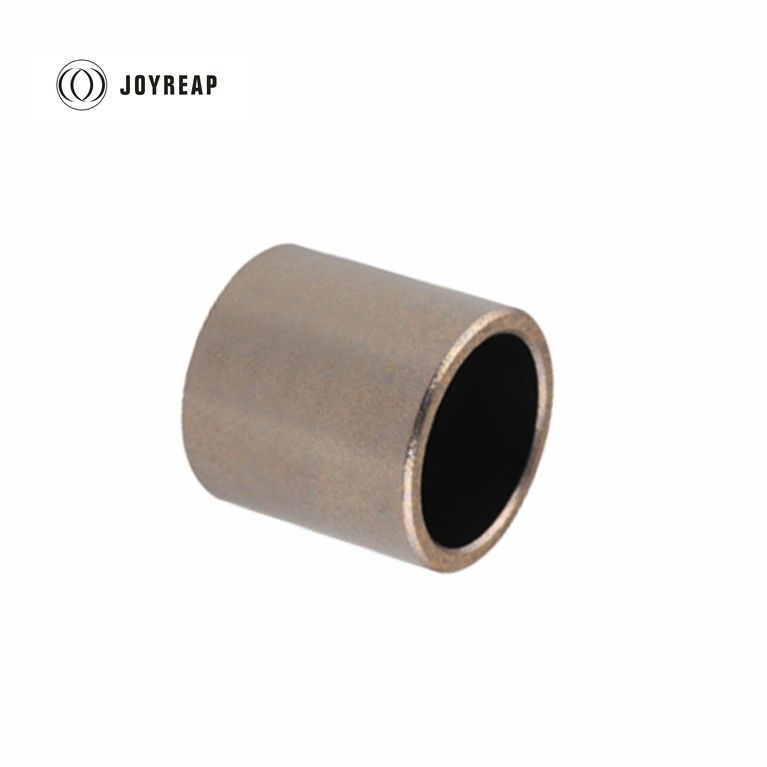

FU-3 Copper Iron Oil Impregnated Bearing Bushing

FU-3 Cooper Iron sintered bushing bearing is made from power metallurgy product that integrated FU-1 and FU-2, and the ratio of Fe and Cu mold pressed in high pressure, sintered with high temperature and oil soaked in vacuum. This type of sintered bearing bearingnot only meets the use conditions, but also reduces the cost, and is the most ideal special product to meet the individual needs of customers among mechanical parts. Oil Impregnated sintered bearing is also called sintered copper iron bushing, Oilite bearings and etc

Material Structure

sintered bronze & iron powder metal

Oil-Impregnated

Advantages

Ratio of Fe and Cu can be determined according to customer's requirements.
Cost saving
The most ideal special product to meet the individual needs of customers

Availability

Straight Bushing
Flanged Bushing
Customized Bushing

Application

Textile machinery
Shock absorbers for automobile and motorcycle
Sliding parts of power tools
In static environment, it can be used as the base of guide positioning bushing

Technical Data

Applicable temperature : 80℃-160℃
Max load pressure: 45N/mm²
Friction Coef. μ: 0.12-0.20
