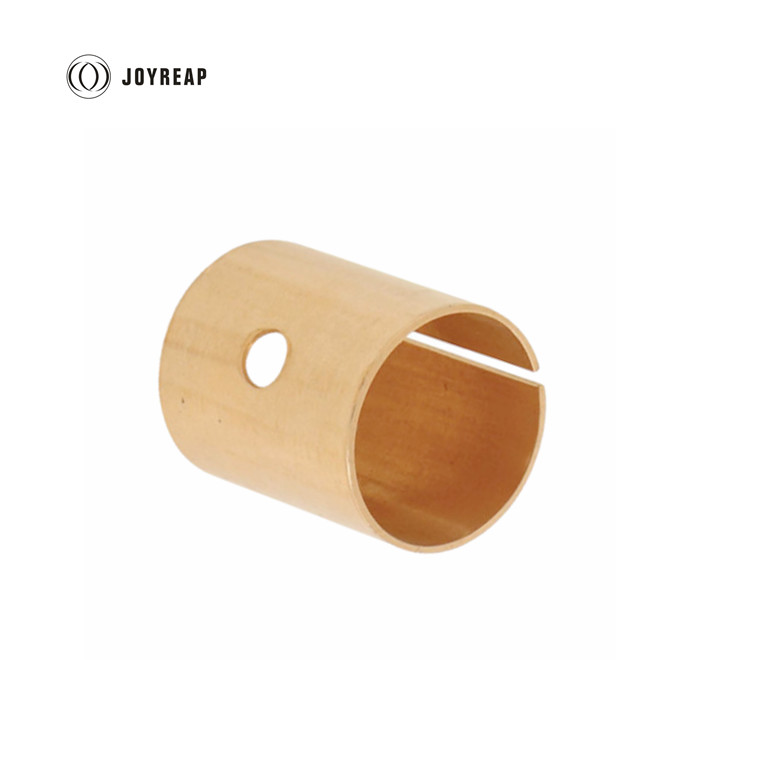

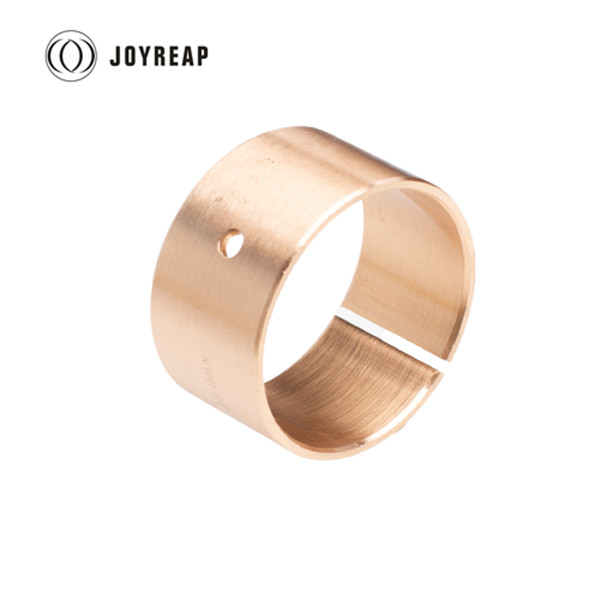

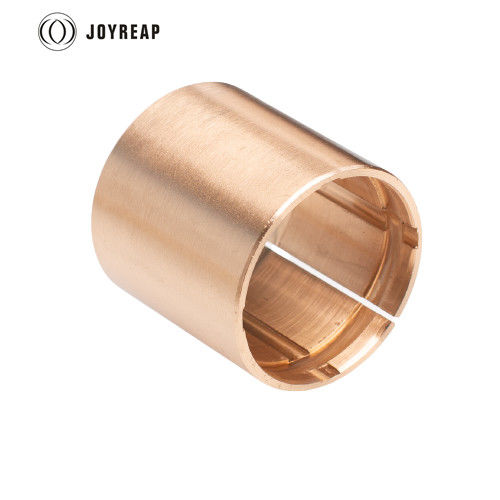

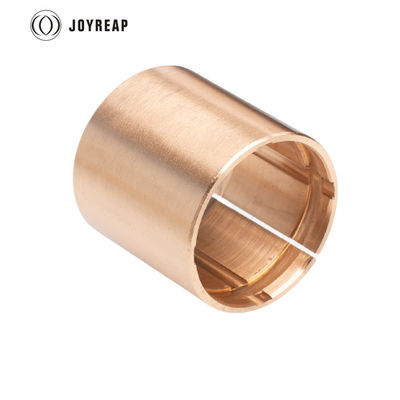

Smooth Split Bronze Bearings Sleeve CuSn8P0.3 760916M1 Split Bush Bearing

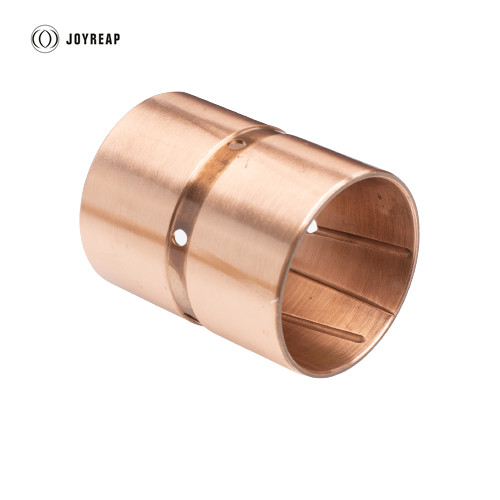

Rolled Bronze Sleeve Bushing Smooth Surface 760916M1, Bronze Split Bush Bearing with Oil Grooves

ZR-096 Bronze bush is made from high grade alloyed, hot rolled, phosphorous tin bronze. The slide bearings are especially designed to withstand heavy loads and to be shock-resistant. The entire bearing sliding surface is special designed as smooth surface that build up a lubricating film that reduces friction, both at startup and during operation. ZR-096  is intended for radial, oscillating and axial movements and are especially suited for medium to high loads.

Material Structure

Material: CuSn8P0.3 (DIN ISO 4382-2:1991)

Materail chemical composition refer to the standard of DIN17662 ISO 4382-2: 1991; CW453K
The actual composition proportion is allowed to up or down in certain range based on standard

Feature

• High load capacity and long life.
• Wide temperature range
• Easy to assemble
• Works well in dirty environments
• Cheap than traditional bronze bush, cost saving

Application
