Name: Maintenance Free Plastic Bushing Cylinder Metric Bushing Polymer Straight Linear Plain Bearings
Brand: Jiaxing Joyreap Precision Machinery Co.,Ltd
SKU: J102
Availability: InStock

Detail Information

Material:	Plastic	Type:	Straight
Specification:	Standard Metric	Advantage:	Low Weight,long Service Life
Application:	Automotive, Agriculture	Other Type:	Flange, Thrust Washer
Highlight:	Maintenance free plastic bushing cylinder , Metric polymer linear plain bearings , Straight bronze bearing bushing

Product Description

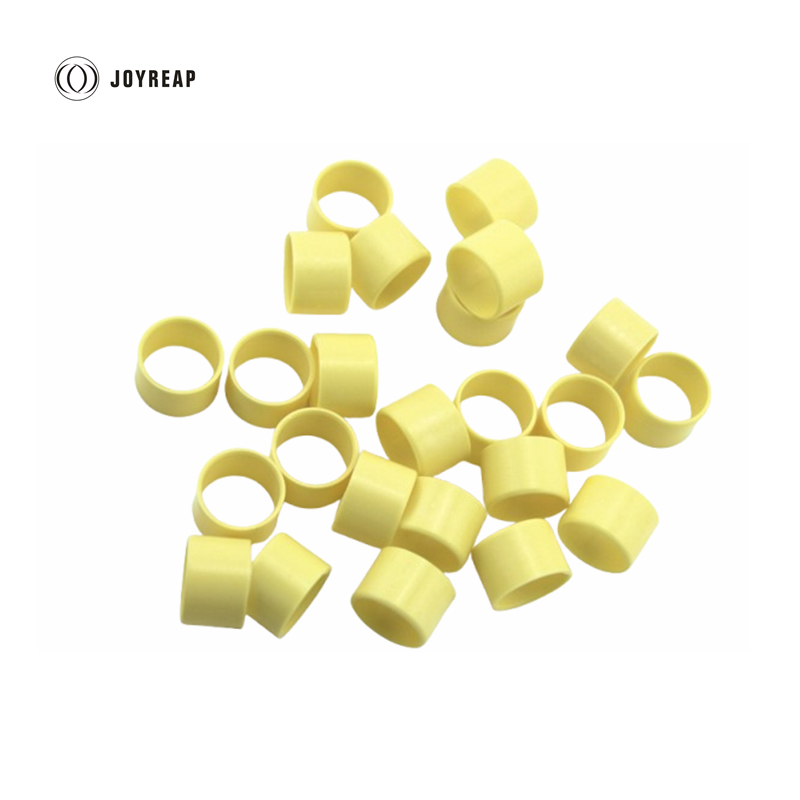

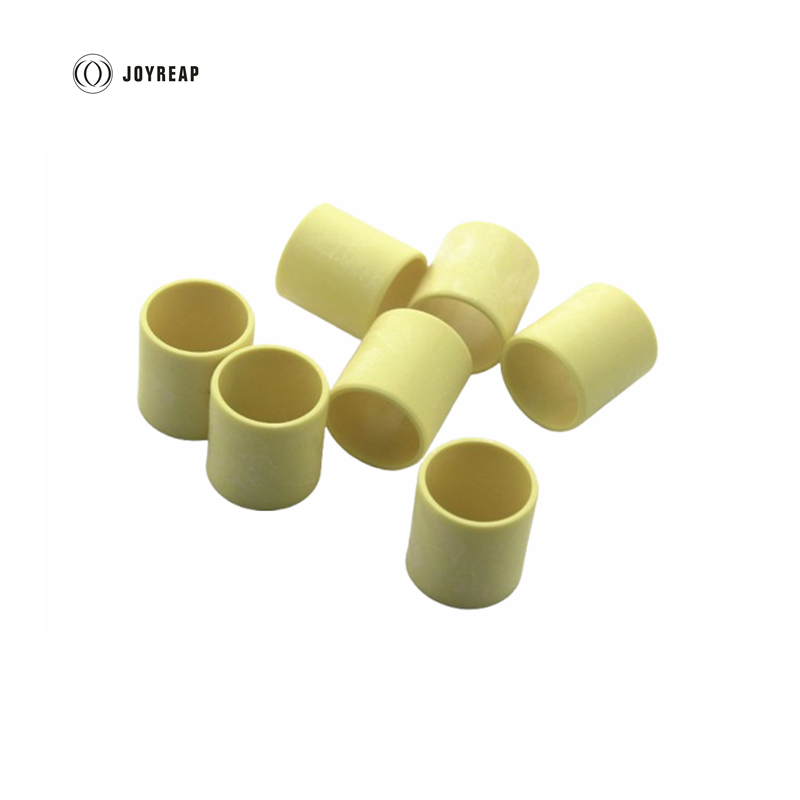

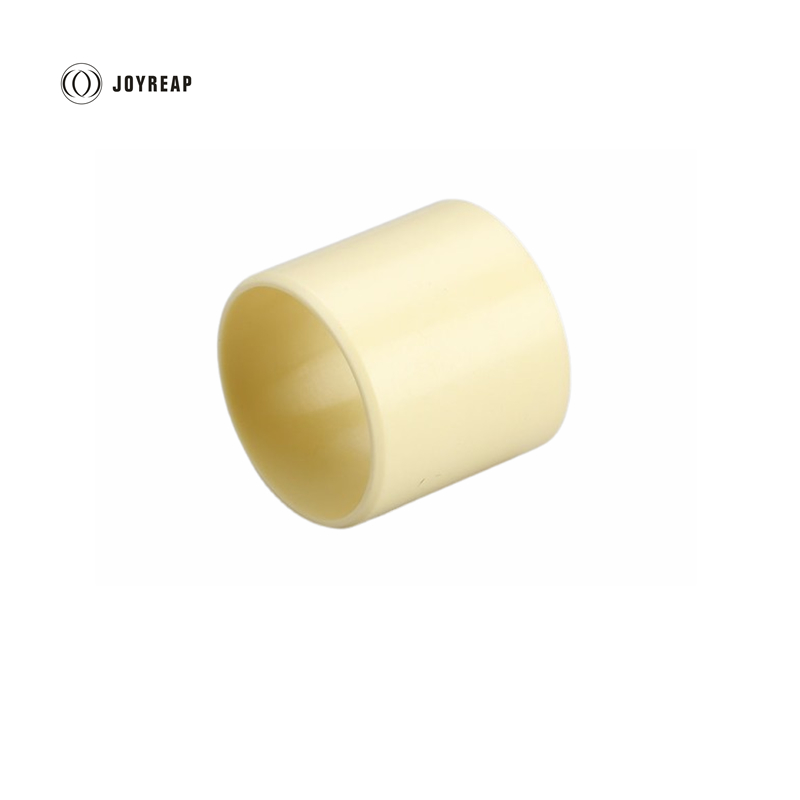

Maintenance Free Plastic Bushing Cylinder Metric Bushing Polymer Straight Linear Plain Bearings

J102 Maintenance Free Plastic Bushing Cylinder Metric Bushing Polymer Straight Linear Plain Bearings

J102 Plastic bushing is designed for low friction and wear resistance, characterized by extremely low coefficient of friction while operating dry and minimal stick-slip effect.

Material

Yellow Plastic

Features

Self-Lubricating and Maintenance-Free
Low Friction and Chemical Resistance
Lightweight and Cost-Effective
Suitable for Soft Shafts

Applications

Dampening vibrations and eliminating the need for lubrication
Automotive industry: In areas like steering systems, hinges, and pedal mechanisms
Agricultural machinery: Where resistance to dirt and corrosion is important

Technical Data

Material Performance Table	Units	J102 Series	Test Standard
General Properties
Density	g/cm³	1.46	ISO1183
Color		Yellow
Max. moisture absorption at 23℃, 50% RH	weight %	0.3	ISO62
Max. moisture absorption	weight %	1.2	ISO62
Mechanical Properties
Flexural modulus	MPa	2800	ISO178
Flexural strength at 20℃	MPa	80	ISO178
Max. recommended surface pressure (20℃)	MPa	70
Shore Hardness (D-type)		75	ISO868
Physical and Thermal Properties
Max. application temperature long-term	℃	90
Max. application temperature short-term	℃	120
Min. application temperature	℃	-50
Thermal conductivity	W/(m*k)	0.25	ISO22007
Coefficient of thermal expansion (23℃)	K⁻¹ *10⁻⁵	10	ISO11359
Electrical Properties
Specific contact resistance	Ω cm	1E14 Min	ICE60093
Surface resistance	Ω	1E12 Min	ICE60093
Friction Performance
Coefficient of friction, dynamic, against steel shaft	μ	0.06-0.18
Max. rotational speed	m/s	1.5
Max. pv value (dry operation)	MPa * m/s	0.4

Tag:

Place of Origin:	China
Brand Name:	Joyreap
Certification:	ISO 9001; IATF16949
Model Number:	J102
