Detail Information

Material:	C95400，CuPb15Sn8，CuSn10Pb	Application:	Stone Crush Machine
Dimension:	100-4000mm	Standard:	ISO9001,TS16949
Oem:	477538;895405	Lubrication:	Oil Or Grease

Product Description

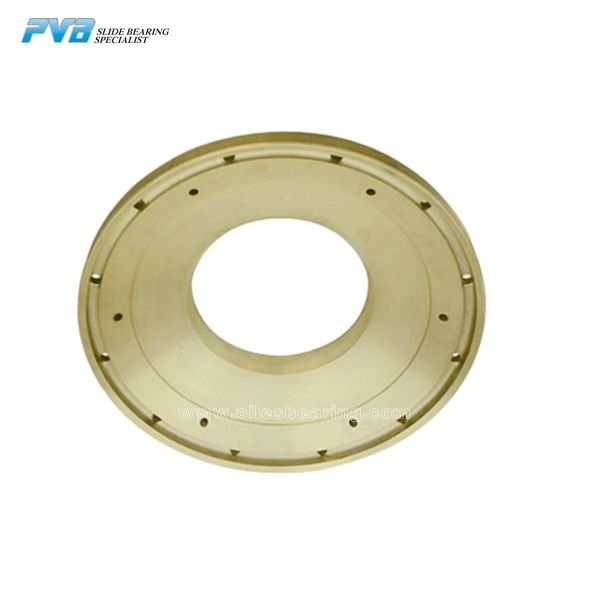

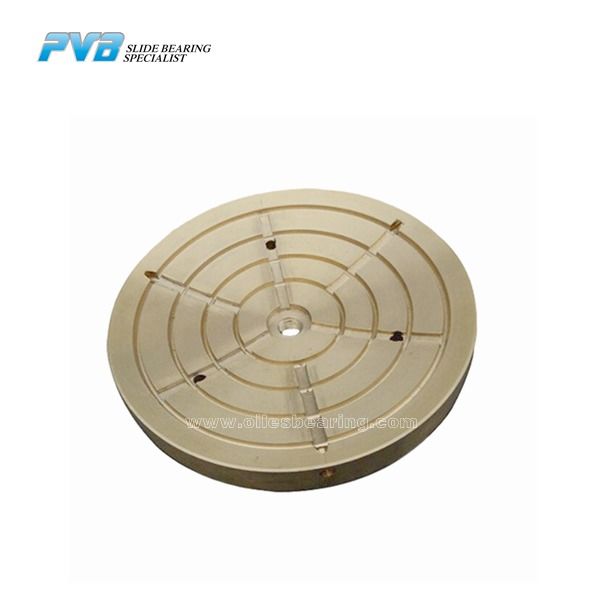

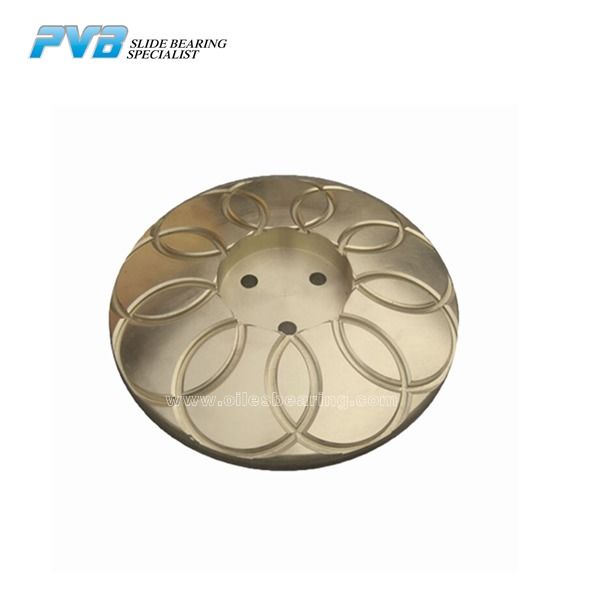

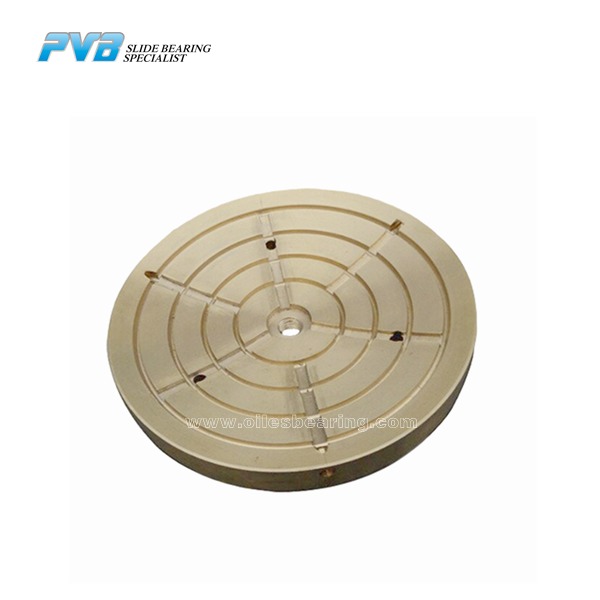

Sandvik 442.8732-01 Main shaft step bronze friction disc 442.7120-01

Shaft step bronze friction disc is installed at the top of main shaft, it sustains the whole mantle and when the cone crusher work, movable head ball assembly twirl at the top of socket liner. With good lubrication, it is good for extending the service-life.

Material

CuPb15Sn8

CuSn7Pb15 Material Chemical Composition
%	Cu%	Pb%	Sn%	Ni%	Zn%	Fe%	Mn%	P%
Min.	74.00	13.00	6.00	0.50	0.00	0.00	0.00	0.00
Max.	80.00	17.00	8.00	2.00	2.00	0.25	0.20	0.10

Availability

Socket Liner

Head Bushing

Thrust Bearing

Countershaft Bushing

Main Frame Bushing

Eccentric Bushing

Application

Cone Crush Machine

Here comes the application details of crush machine

Sandvik 442.8732-01 Main shaft step bronze friction disc 442.7120-01 0

Standard size we can do

Eccentric bush	442.9357-01	Bottom Shell Bushing	452.0795-001
Eccentric bush	442.9359-01	Ecc. wearing plate	452.0808-001
Bottom Shell Bushing	442.9248-01	Main shaft step	452.0507-001
Ecc. wearing plate	442.9249-01	Piston wearing plate	452.0538-001
Main shaft step	442.9723-01	Locating Bar	452.0834-001
Piston wearing plate	442.9724-01	Eccentric bushing	442.9033-01
Locating Bar	442.9308-01	Eccentric bushing	442.8824-01
Eccentric bush	60.64.68.70	Eccentric bushing	442.8825-01
Eccentric bush	36.40.44.48	Eccentric bushing	442.8826-01
Eccentric bushing	32.37.42.47	Bottom shell bushing	442.8742-01
Eccentric bushing	47.52.57.62	Eccentric wear plate	442.8761-01
Eccentric bushing	62.68.74.80	Main shaft step	442.8732-01
Piston Wearing Plate	442.8730-01	Main shaft step	442.7120-01
Locating Bar	442.8762-01	Piston wearing plate	442.7122-01
Ecc.bushing	442.8067-01	Wearing Plate	442.7107-01
Bottom Shell Bushing	442.7146-01	Ecc.bushing	442.9406-01
Ecc.bushing24 28 32	442.9642-01	Eccentric bush16 20 25 30	442.8486-01
Ecc.bushing13 16 20 24	442.9643-01	Locating Bar	442.7928-01
Locating Bar	442.7110-01	Main shaft step plate	442.6138-01
Eccentric bush16 19 22	442.7923-01	Piston wear plate	442.6139-01
Eccentric bush22 25 29	442.7924-01	Wearing plate	442.6130-01
Eccentric bush29 32 34 36	442.7925-01	Bottom shell bushing	442.6131-01
Wearring Plate	442.7927-01	Eccentric bush13 16 18	442.9657-01
Bottom shell bushing	442.7935-01	Eccentric bush18 20 22	442.9658-01
Main shaft step	442.7895-01	Eccentric bush22 25 28	442.9659-01
Piston wearing plate	442.7893-01	Eccentric bush13 16 20 25	442.9688-01

Tag:

Place of Origin:	China
Brand Name:	Joyreap
Certification:	ISO 9001; IATF16949
Model Number:	JDB-1U

Minimum Order Quantity:	1
Delivery Time:	30
