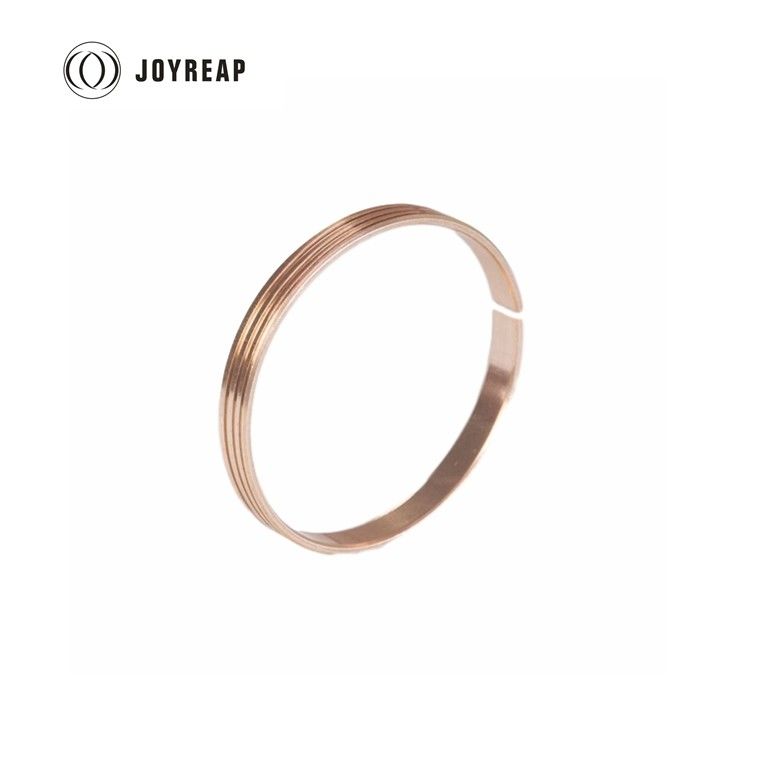

Name: Cylindrical Wrapped Bronze Bearing Bushing Plunger Guiding Ring
Brand: Jiaxing Joyreap Precision Machinery Co.,Ltd
SKU: ZR-095
Availability: InStock

Cylindrical Wrapped Bronze Bearing Bushing Plunger Guiding Ring

Basic Information

Place of Origin:	China
Brand Name:	Joyreap
Certification:	ISO,IATF16949
Model Number:	ZR-095

Minimum Order Quantity:	100
Packaging Details:	Cartons+Wooden Pallets
Delivery Time:	30 days
Payment Terms:	L/C, D/A, D/P, T/T

Get Best Price Contact Now

Detail Information

Description:

Bronze Guiding Ring

Material:

CuSn8P, CuSn6, Brass

Type:

Oil Grooves On Outside Or Inside

Application:

Plunger Cylindrical

Highlight:

Cylindrical Bronze Bearing Bushing

Bronze Bearing Bushing Plunger

Wrapped Bronze Bushing

Product Description

Wrapped Bronze Bearing Plunger Cylindrical Bushing Bronze Ring

ZR-095 wrapped bronze guiding ring is made of CuSn8P0.3 or CuSn6P0.2 material with oil grooves inside or outside as cylinder seals purpose. This type of bronze ring is also called cylinder bronze seals.

Material Structure

Material: CuSn8P0.3 (DIN ISO 4382-2:1991)

Type	Cu%	Sn%	P%
ZR-095 Bronze Ring	91.3	8.5	0.2

Characteristics

Surface can be made as oil grooves. Particularly suitable for oscillating bearing.
High load capacity and long life.

Application

ZR-095 Split bronze ring is widely used in plunger cylinders
