Name: 17245872740 Brass And Graphite Bush 805/17245872740 Digger Spare Parts Bushing
Brand: Jiaxing Joyreap Precision Machinery Co.,Ltd
SKU: JDB-50
Availability: InStock

Detail Information

Base Material:	CuZn25Al6Fe3Mn3	Lubrication:	Graphite
Feature:	High Load	Applciation:	Hydraulic Presses Machine
Type:	Sleeve, Flange, Washer	Brand:	Joyreap
Weight:	0.18kg	Specification:	5040.239.7
Highlight:	Brass and graphite bush digger spare parts , Graphite bronze bearing bushing , Digger spare parts brass bushing

Product Description

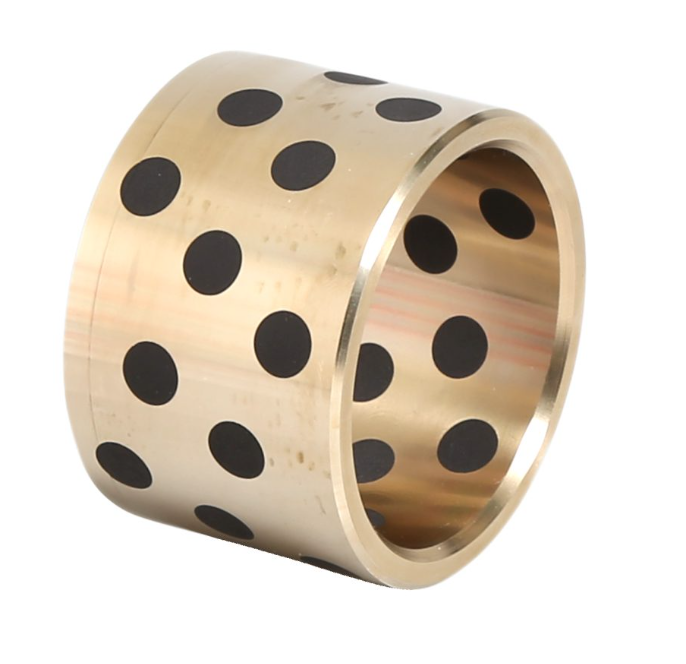

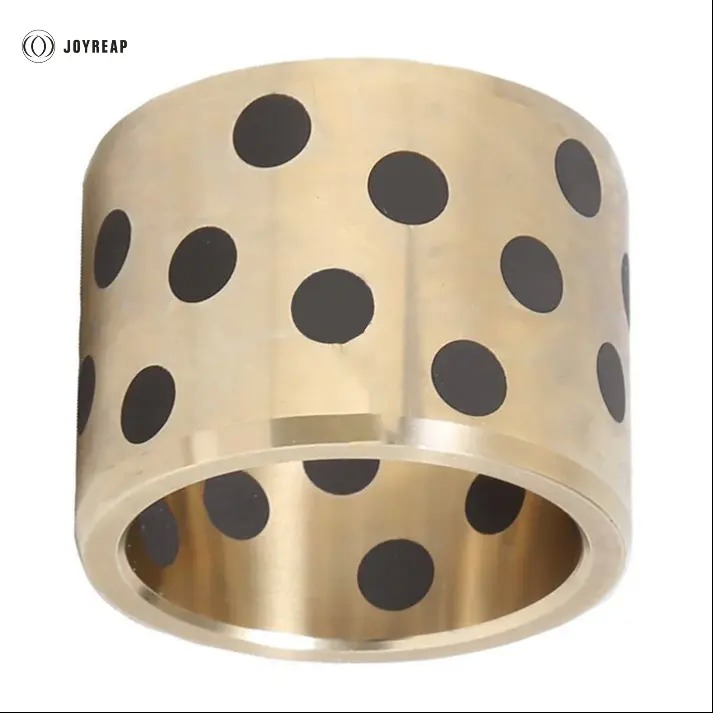

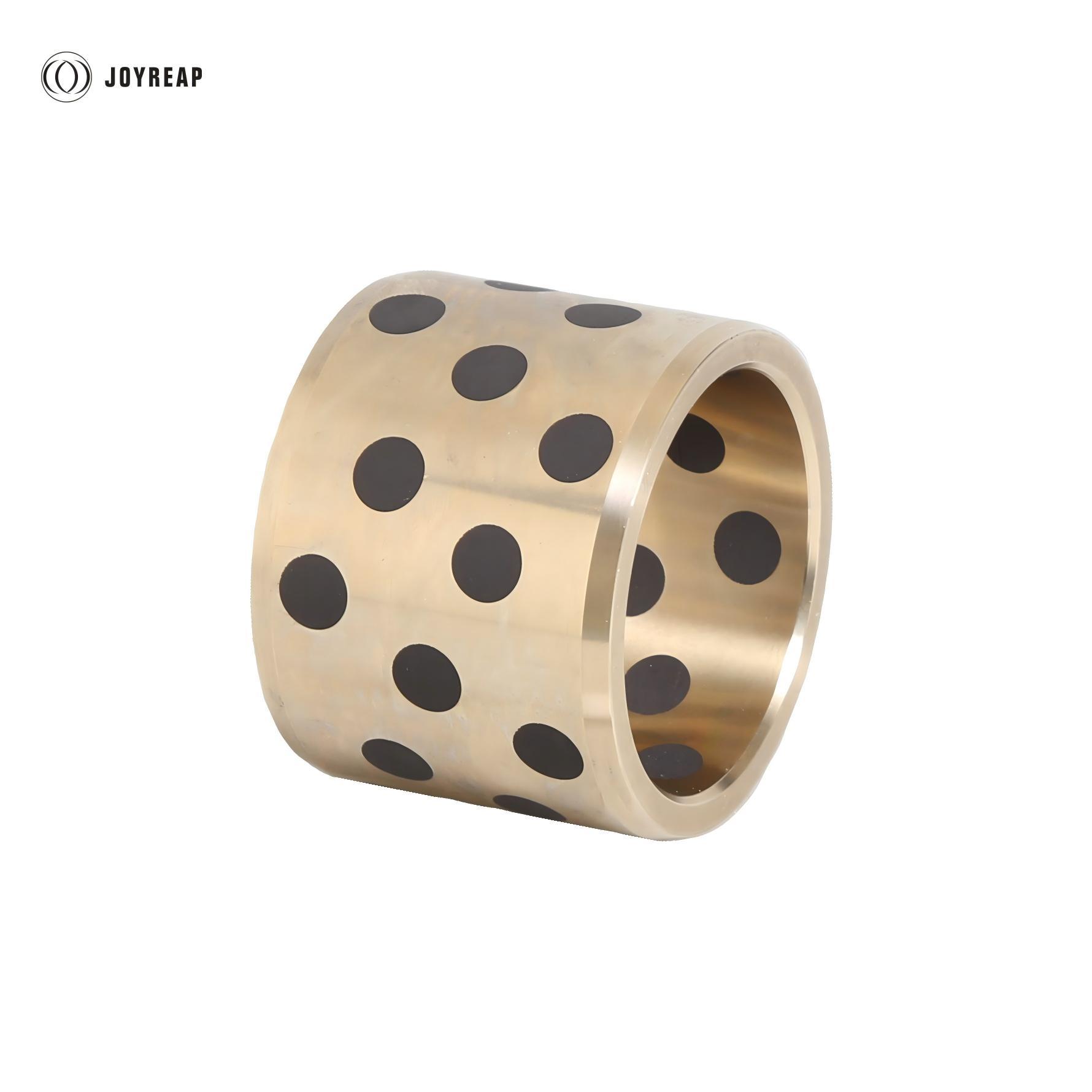

17245872740 Brass And Graphite Bush 805/17245872740 Digger Spare Parts Bushing

JDB-50 17245872740 Brass And Graphite Bush 805/17245872740 Digger Spare Parts Bushing based on CuZn25Al6Fe3Mn3 material. This bush is made of High-strength brass and graphite. This makes the bearing have good load-bearing performance and self-lubricating characteristics.

Material

CuZn25Al6Fe3Mn3+Graphite

Base Material Details

%	Cu%	Sn%	AI%	Pb%	Zn%	Fe%	Mn%	Ni%
Min.	60.00	0	4.50	0.00	0.00	2.00	1.50	0.00
Max.	66.00	0.20	7.00	0.20	the rest	4.00	4.00	3.00

Characteristics

Have incomparable performance under high load, low speed operation. Also performs well without lubrication
Excellent wear resistance in applications where oil film is difficult to form due to reciprocating, oscillating motions and frequent intermittent operations
Remarkable resistance to corrosion and chemical attack
Maintenance free and saves operating costs

Availability

Cylindrical oiless bushing, flanged oilless bush, thrust washer and slide plate are standard fabrication
Special designed solid metal bearing and material can be made according to your design
Other materials can be made based on your requirements

Application

Widely used in successive casting machines, mineral mountain machinery, shipping, steam turbines, and other industrial applications.

Technical Data

Material	CuZn25Al6Fe3Mn3
Density	8
HB Hardness	≥210
Tensile Strength N/mm	≥750
Yield Strength N/mm	≥450
Elongation %	≥12
Coefficient of linear expansion	1.9x10⁻⁵/°C
Max. Operation Temp.	-40~+300°C
Max. load MPa	100
Max Speed (dry)	15
Max Speed (lubricated)	2.5
Max. PV N/mm² *m/s (Lubricated)	200

Tag:

Place of Origin:	China
Brand Name:	Joyreap
Certification:	ISO,IATF16949
Model Number:	JDB-50

Minimum Order Quantity:	50pcs
Packaging Details:	carton
Delivery Time:	25-30days
Supply Ability:	1000000pcs/month
