Name: C86300 Manganese Bronze Graphite Bushing Self Lubricating Oiles
Brand: Jiaxing Joyreap Precision Machinery Co.,Ltd
SKU: JDB-60
Availability: InStock

Detail Information

Base Material:	C86300, SAE430, CuZn25Al5	Lubrication:	Graphite
Application:	Mould Industry	Certificate:	ISO9001,IATF16949
Advantage:	Self Lubricating	Speciation:	Standard Size Or Customized
Highlight:	Bronze Graphite Bushing Self Lubricating , Bronze Graphite Bushing , Manganese Bronze Bushing

Product Description

C86300 Manganese Brass alloys Oiles Self Lubricating Bearing, SAE430B Bronze Oiles Bushing Bearing with Graphite Ring

Material

CuZn25Al5+Graphite

Other Base material can be made based on requirement

Base Bronze Material Details

CuZn25Al6Fe3Mn3 Material Chemical Composition
%	Cu%	Pb%	Sn%	Zn%	Fe%	Ni%	Al%	Mn%
Min.	60.00	0.00	0.00	22.00	2.00	0.00	5.00	2.50
Max.	66.00	0.20	0.20	28.00	4.00	1.00	7.50	5.00

Characteristics

Due to the effect of friction heat, the solid lubrication material in the aluminum brass groove on the inner diameter surface will expand slightly, which will produce a friction with the shaft in the first place and form a transfer membrane on the shaft, so as to reduce the friction coef., reduce the wear of the shaft and shaft sleeve, prolong the service lifeEspecially suitable for reciprocating linear motion conditions

Availability

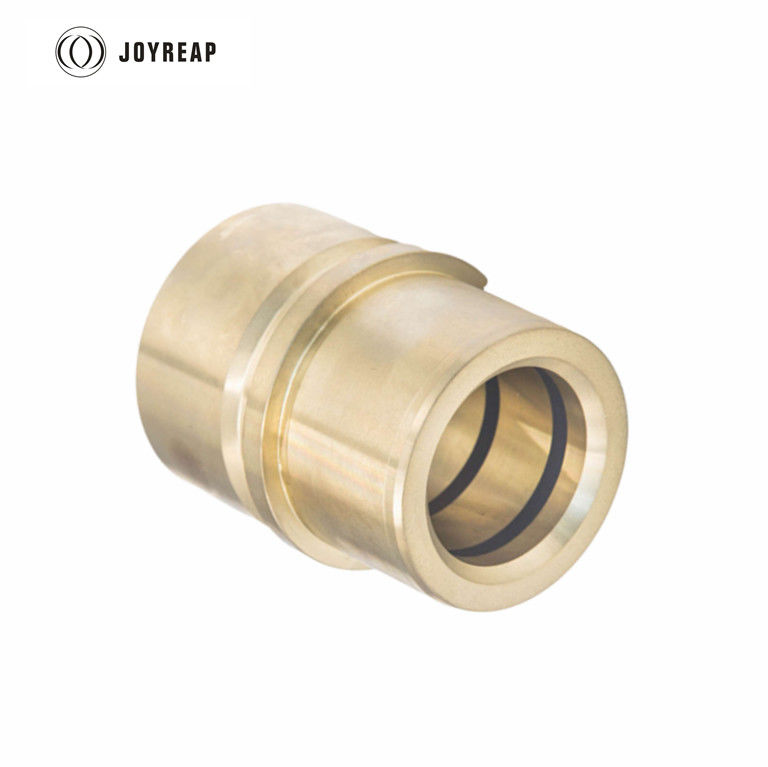

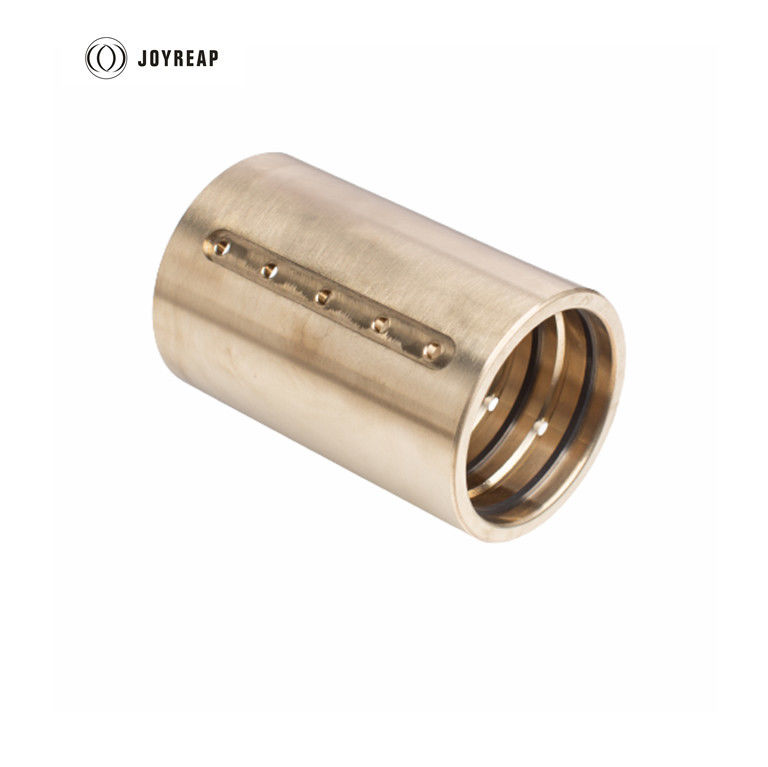

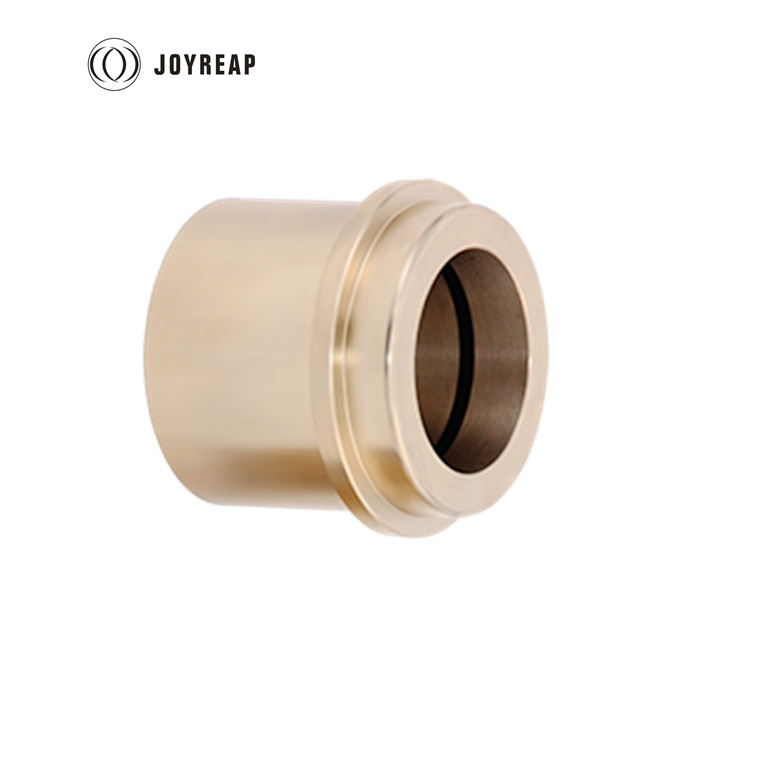

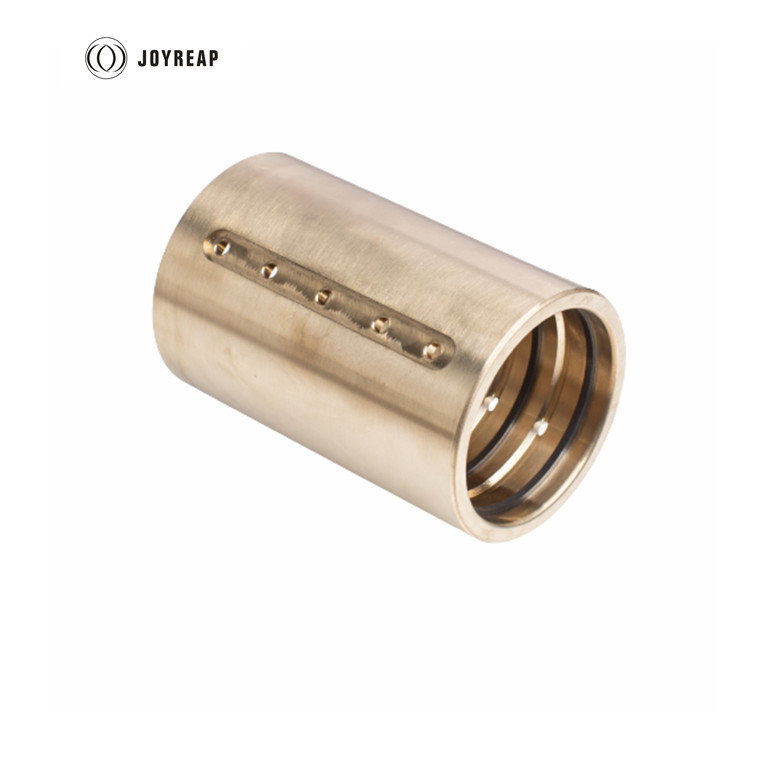

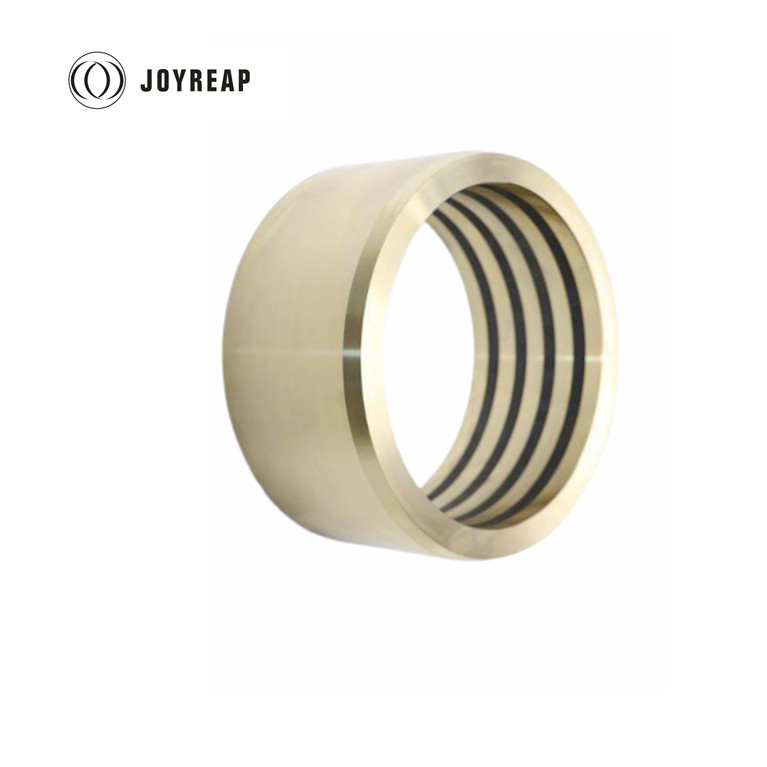

Cylindrical oiles bushing, flanged oiles bushing
Special designs and material can be made according to your design.

Application

JDB-60 bronze with with solid lubricant rings oiles bearing is widely used in Guide bushings of precision molds,Precision guide rails.

Technical Data

Material	CuZn25Al6Fe3Mn3
Density	8
HB Hardness	≥210
Tensile Strength MPa	≥750
Yield Strength MPa	≥450
Elongation %	≥12
Thermal Expansion Coefficient	1.9x10*%/°C
Max. Operation Temp.	-40~+300°C
Max. load MPa	50
Max. speed m/s(Dry)	0.5
Max. speed m/s(Lubricated)	1
Max. PV (N/mm² *m/s)(Dry)	1.65
Max. PV (N/mm² *m/s)(Lubricated)	3.25

Bronze Base Material International Code

Common name	International Code
Standard	China	Germany	Japan	European	British	Italy	American
Standard	GB1176-87	DIN	JIS	(EN 1982)	BS 1400	JM	ASTM(UNS)
Manganese bronze	ZCuZn25Al5Mn4Fe3	CuZn25Al5	CAC304/HBsC4		HTB2	JM-18	C86300(SAE430B)
Nickel-Aluminum Bronze	CuAl10Ni5Fe5	G-CuAl10Ni	AlBC3	CB333G	AB2	JM7-15	C95500
Leaded bronze / Gun Metal	ZCuSn5Pb5Zn5	CuSn5ZnPb	BC6 /BC6C	CC491K / CB491K	LG2	JM1-15	C83600(ASTM B 505)
Leaded bronze / Gun Metal	ZCuSn7Zn4Pb7	G-CuSn7ZnPb,RG-7		CC493K	LG2	JM-1	C93200(SAE660)
Tin Bronze	ZCuSn12	G-CuSn12	CAC503B	CC483K /CB483K	PB2	JM3-15	C90800(ASTM B 427)
High leaded tin bronze	ZCuSn10Pb10	CuSn10Pb10-C		CC495K / CB495K	LB2	JM-15	C93700 / SAE64
High leaded tin bronze	CuSn7Pb15	CuSn7Pb15-C		CC496K	AB2	JM-4	C93800

Tag:

Place of Origin:	China
Brand Name:	Joyreap
Certification:	ISO,IATF16949
Model Number:	JDB-60

Packaging Details:	Cartons+Wooden Pallets
Delivery Time:	30 days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	50 tons per month
