Name: Brass Graphite Bronze Bearing 500 Oiles Self Lubricating Bushes
Brand: Jiaxing Joyreap Precision Machinery Co.,Ltd
SKU: JDB-10
Availability: InStock

Detail Information

Base Material:	C86300, SAE430, CuZn25Al5	Lubrication:	Graphite Or PTFE
Advantage:	Maintenance Free	Hardness:	>HB210
Description:	Bronze Oiles Bearing	Application:	Construction, Agriculture
Highlight:	Brass Graphite Bronze Bearing , Graphite Bronze Bearing 500 Oiles , Self Lubricating Bushes

Product Description

CuZn25Al5 High Strength Brass Graphite lubricated Oiles Bearing 500 Oiles Self Lubricating Bushes

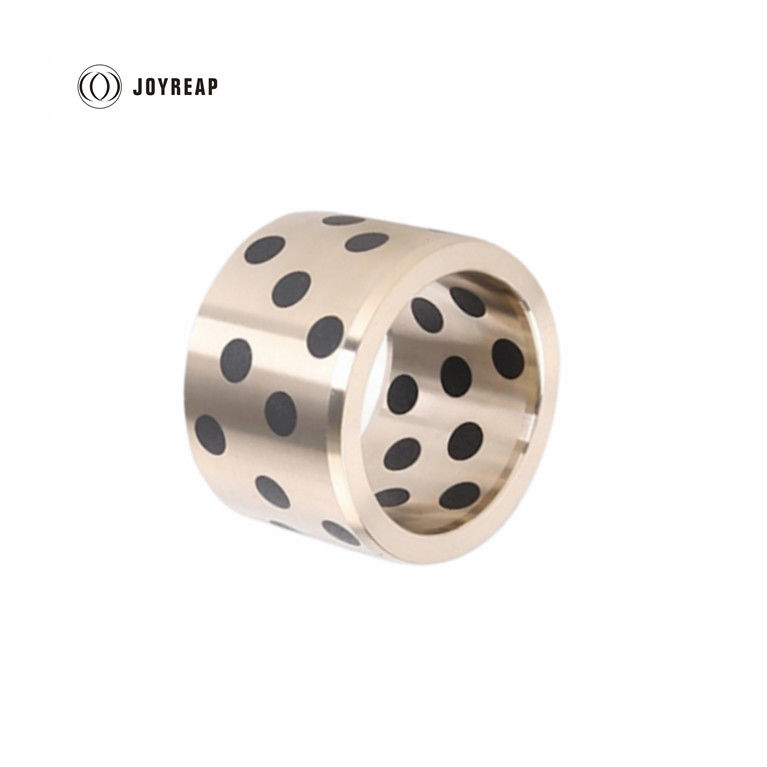

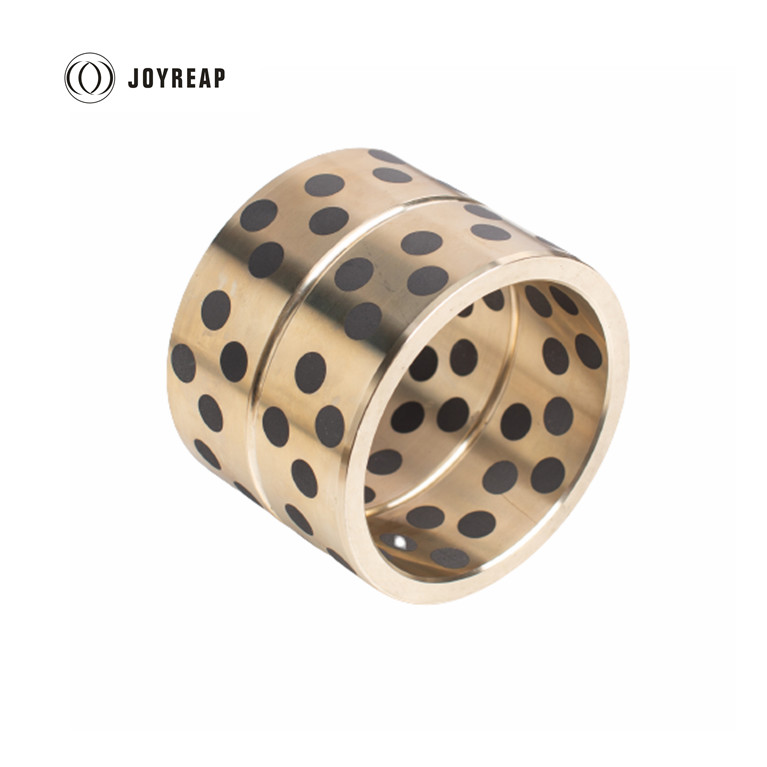

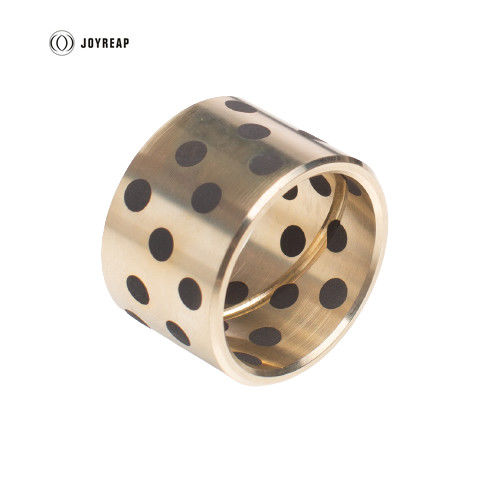

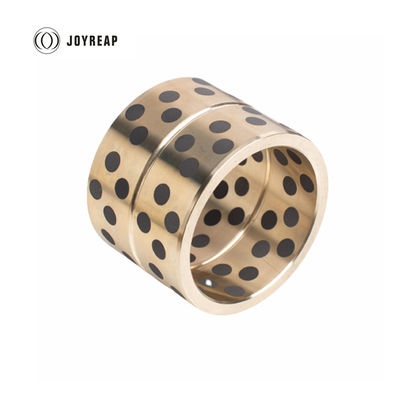

JDB-10 graphite plugged oilless bronze bearing is made of centifugal casting high strength brass with graphite filled. This type of self-lubricating bearing is also called HTB1 bronze alloy oiles bushes bearing, #500 oilless bearing,brass oiles bearing,C86300 cooper alloy sliding bushing,SAE430B solid lubricant filled sliding bearing,500 oilless guide bushing and graphite filled bearing, copper alloy oil free bushing and etc.

Material

CuZn25Al6Fe3Mn3+Graphite

PTFE or SL4 lubricant can be made based on requirement

Characteristics

Cost effective and higher crash strength comparing with other bronze graphite bearing
the solid lubricant of oiles bearing will run out to the shaft through frictional heat, forming an excellent condition for the coexistence of oil and powder lubrication, which not only protects the shaft from wear, but also makes the solid lubricant persist.
Hardness is twice higher than other bronze graphite bushing

Availability

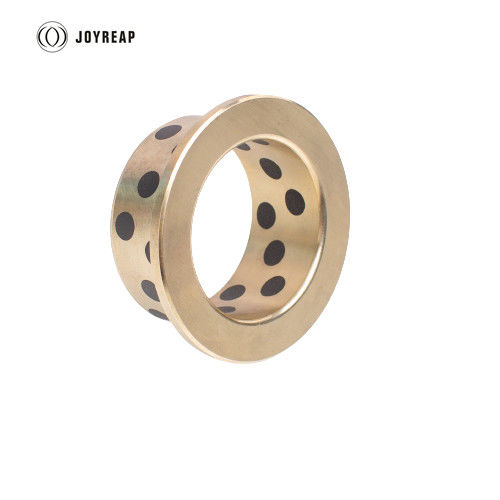

Cylindrical oiles bushing, flanged oiles bushing, thrust washer and slide plate are standard fabrication.
Special designs and material can be made according to your design.

Application

JDB-10 High strength bronze graphite oiles bearing is widely used in Metallurgical continuous casting machines,Train supports,Steel rolling equipment,Mining machinery,Gas turbines and etc

Technical Data

Material	CuZn25Al6Fe3Mn3
Density	8
HB Hardness	≥210
Tensile Strength MPa	≥750
Yield Strength MPa	≥450
Elongation %	≥12
Thermal Expansion Coefficient	1.9x10*%/°C
Max. Operation Temp.	-40~+300°C
Max. load MPa	50
Max. speed m/s(Dry)	0.5
Max. speed m/s(Lubricated)	1
Max. PV (N/mm² *m/s)(Dry)	1.65
Max. PV (N/mm² *m/s)(Lubricated)	3.25

Bronze Base Material International Code

Common name	International Code
Standard	China	Germany	Japan	European	British	Italy	American
Standard	GB1176-87	DIN	JIS	(EN 1982)	BS 1400	JM	ASTM(UNS)
Manganese bronze	ZCuZn25Al5Mn4Fe3	CuZn25Al5	CAC304/HBsC4		HTB2	JM-18	C86300(SAE430B)
Nickel-Aluminum Bronze	CuAl10Ni5Fe5	G-CuAl10Ni	AlBC3	CB333G	AB2	JM7-15	C95500
Leaded bronze / Gun Metal	ZCuSn5Pb5Zn5	CuSn5ZnPb	BC6 /BC6C	CC491K / CB491K	LG2	JM1-15	C83600(ASTM B 505)
Leaded bronze / Gun Metal	ZCuSn7Zn4Pb7	G-CuSn7ZnPb,RG-7		CC493K	LG2	JM-1	C93200(SAE660)
Tin Bronze	ZCuSn12	G-CuSn12	CAC503B	CC483K /CB483K	PB2	JM3-15	C90800(ASTM B 427)
High leaded tin bronze	ZCuSn10Pb10	CuSn10Pb10-C		CC495K / CB495K	LB2	JM-15	C93700 / SAE64
High leaded tin bronze	CuSn7Pb15	CuSn7Pb15-C		CC496K	AB2	JM-4	C93800
