Name: 5203671 linkage bushing 5050411 solid bronze bushing oil grooves bronze bearing
Brand: Jiaxing Joyreap Precision Machinery Co.,Ltd
SKU: JDB-1U
Availability: InStock

Detail Information

Description:	Bronze Bush	Material:	C86300, SAE430B, HTB1
Lubrication:	Oil Or Grease	Feature:	AntI-wear
Name:	Solid Bronze Bushing	Orign:	China

Product Description

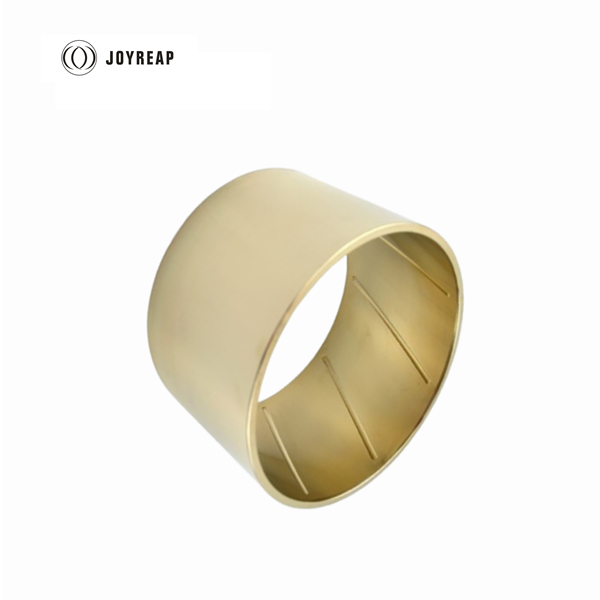

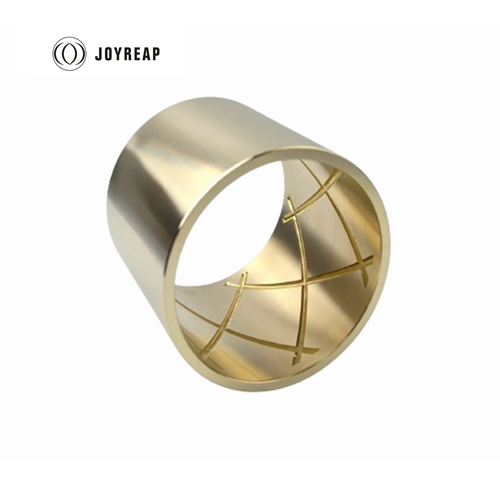

5203671 linkage bushing 5050411 solid bronze bushing oil grooves bronze bearing

5203671 linkage bushing is bronze alloy with oil added in the oil grooves. This type cast bronze solid sliding bearing has very good performance of anti-wear. It's also called gun metal bushing bearing, solid turned bronze sliding bearing,CNC turned bronze self lubricating bearing, bronze turned solid bearing

Material

C86300,SAE430B

Availability

Cylindrical cast bronze bushing, flanged solid bronze bushing, bronze thrust washer
Special designs solid bronze bearing can be made according to your design.

Technical Data

Material	CuZn25AI5Mn4Fe3( High Strength)
Density	7.8
HB Hardness	≥250
Tensile Strength MPa	≥800
Yield Strength MPa	≥450
Elongation %	≥800
Thermal Expansion Coefficient	1.9x10*%/°C
Max. Operation Temp.	-40~+300°C
Max. load MPa	75
Max. speed m/s(Dry)	0.1
Max. speed m/s(Lubricated)	0.25
Max. PV (N/mm² *m/s)(Dry)	1.65
Max. PV (N/mm² *m/s)(Lubricated)	3.25

Tag:

Place of Origin:	China
Brand Name:	Joyreap
Certification:	ISO,IATF16949
Model Number:	JDB-1U

Minimum Order Quantity:	100
Packaging Details:	Cartons+Wooden Pallets
Delivery Time:	30 days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	100 tons per month
