Name: CuSn12 Solid Bronze Bearing Flanged Cooper Alloy Sliding Bushing
Brand: Jiaxing Joyreap Precision Machinery Co.,Ltd
SKU: JDB-1U P50
Availability: InStock

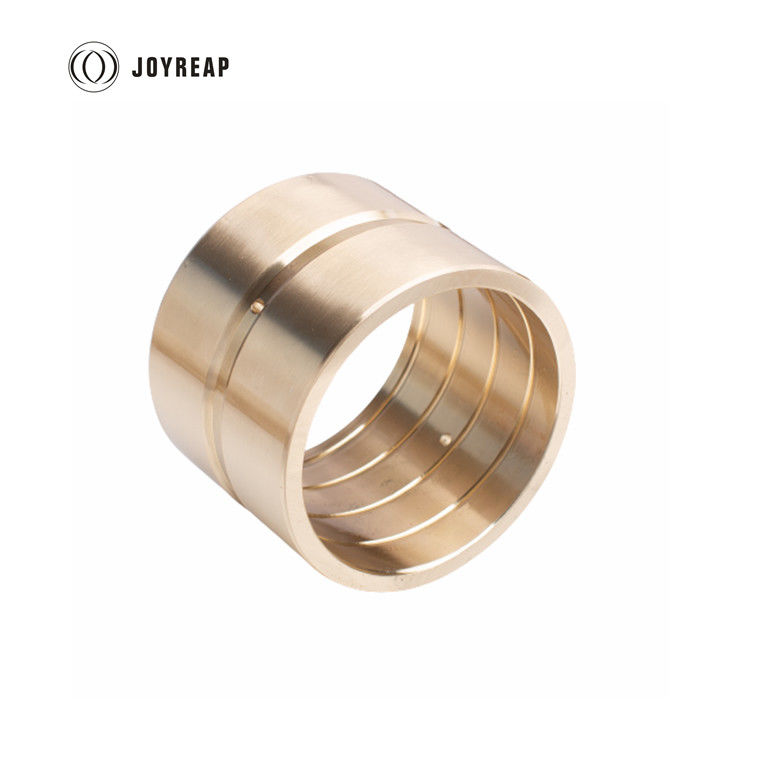

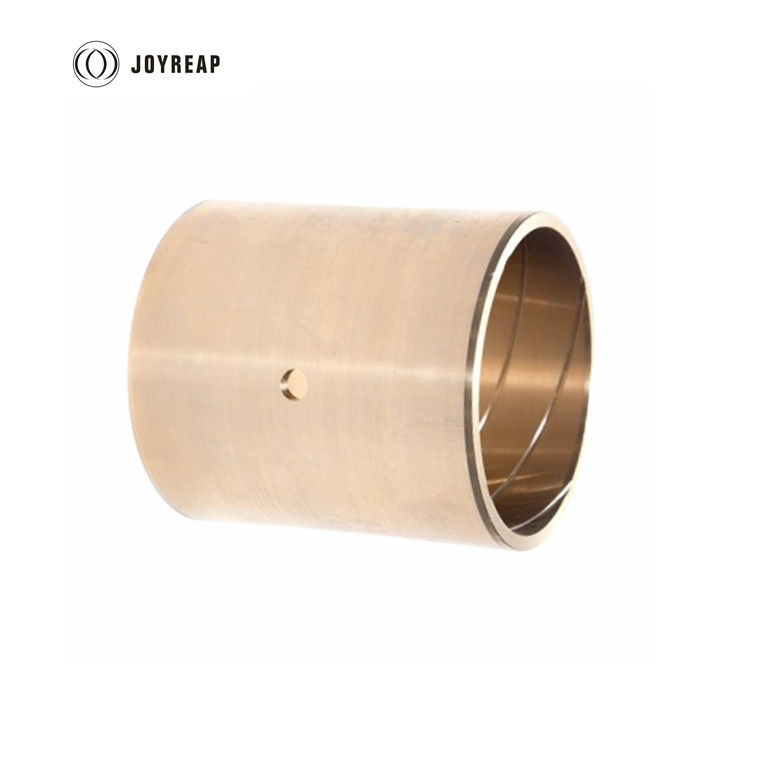

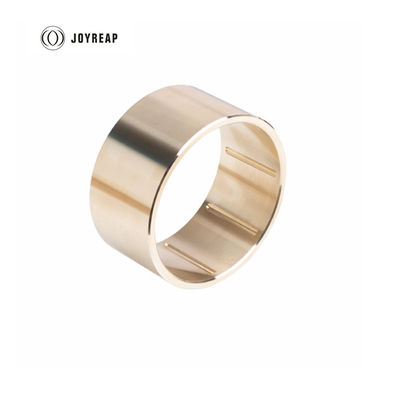

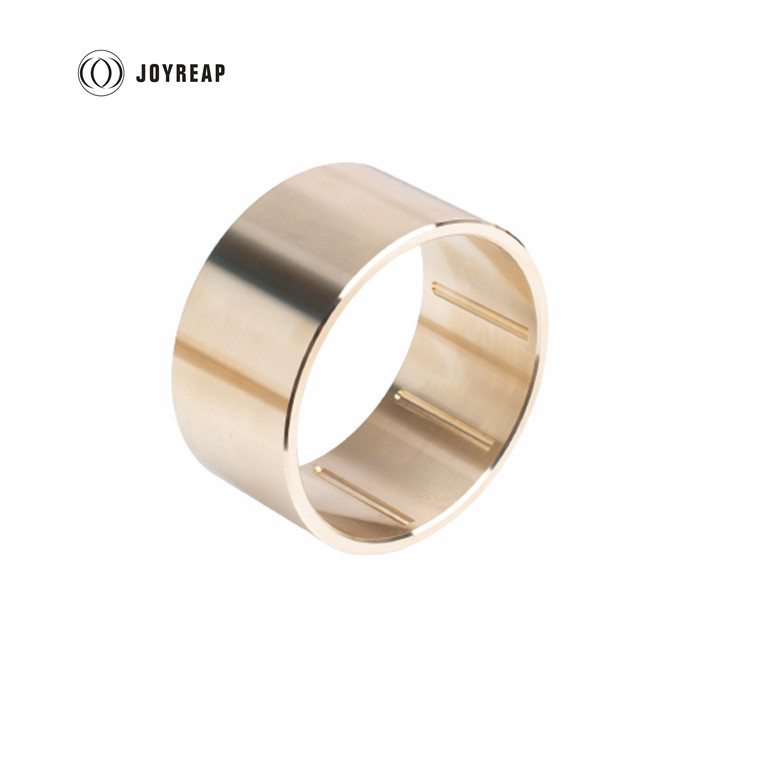

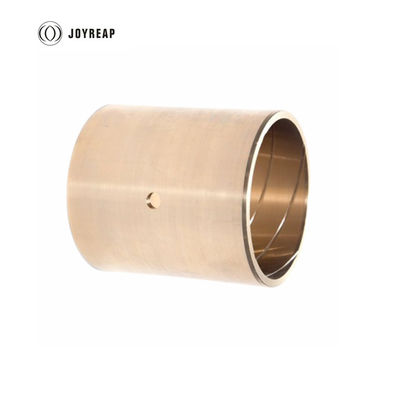

CuSn12 Solid Bronze Bearing Flanged Cooper Alloy Sliding Bushing

Basic Information

Place of Origin:	China
Brand Name:	Joyreap
Certification:	ISO,IATF16949
Model Number:	JDB-1U P50

Minimum Order Quantity:	100
Packaging Details:	Cartons+Wooden Pallets
Delivery Time:	30 days
Payment Terms:	D/A, L/C, D/P, T/T
Supply Ability:	500,000PCS/Month

Get Best Price Contact Now

Detail Information

Name:	Solid Bronze Bearing	Model:	JDB-1U P50
Certification:	ISO,IATF16949	Feature:	Anti-wear
Shape:	Cylindrical	Application:	Offshore Equipment, Marine Industry, Construction Equipments And Etc
Highlight:	CuSn12 Solid Bronze Bearing , Solid Bronze Bearing Flanged , Bronze Bearing Flanged

Product Description

C90800 Tin Bronze Solid bronze bushing CuSn12 Cooper Alloy Bronze Sliding Bearing

JDB-1U 050 Tin bronze bearing was made of tin bronze alloy with oil grease in the oil grooves. This type cast bronze solid sliding bearing has very good performance of anti-wear. It's also called solid bronze bearing, CuSn12 solid turned bronze sliding bearing,CNC turned bronze self lubricating bearing, Tin bronze alloy bronze bushes

Material

CuSn12

Material Chemical Composition
%	Cu%	Sn%	Ni%	Pb	Zn%	Fe%	Mn%	P%
Min.	85.00	10.50	0.00	0.00	0.00	0.00	0.00	0.00
Max.	89.00	13.00	2.00	0.70	0.50	0.20	0.20	0.60

Availability

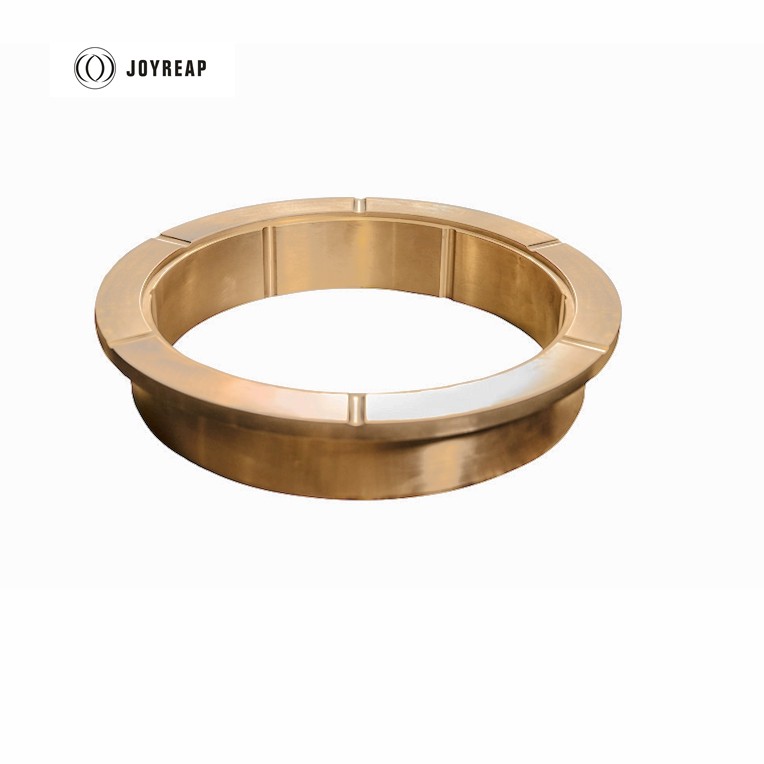

Cylindrical cast bronze bushing, flanged solid bronze bushing, bronze thrust washer
Special designed solid bronze bearing can be made according to your design.

Application

JDB-1U P50 cast bronze solid bearing is widely used in offshore equipment, marine industry, construction equipments and etc

Technical Data

Material	CuSn12
Density	8.9
HB Hardness	≥75
Tensile Strength MPa	≥270
Yield Strength MPa	≥150
Elongation %	≥5
Thermal Expansion Coefficient	1.8x10*%/°C
Max. Operation Temp.	-40~+400°C
Max. load MPa	50
Max Speed(dry)	0.5
Max Speed(lubricated)	2.5
Max.PV N/mm² *m/s(Dry)	1
Max.PV N/mm² *m/s(Lurbicated)	1.65
