Name: C83600 Leaded Solid Bronze Bearing Plain Cast Bronze Bushing
Brand: Jiaxing Joyreap Precision Machinery Co.,Ltd
SKU: JDB-1U P20
Availability: InStock

C83600 Leaded Solid Bronze Bearing Plain Cast Bronze Bushing

Basic Information

Place of Origin:	China
Brand Name:	Joyreap
Certification:	ISO,IATF16949
Model Number:	JDB-1U P20

Minimum Order Quantity:	100
Packaging Details:	Cartons+Wooden Pallets
Delivery Time:	30 days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	100 tons per month

Get Best Price Contact Now

Detail Information

Description:	Leaded Tin Bronze Bearing	Material:	C83600,CuSn5Pb5Zn5
Lubrication:	Oil Or Grease	Feature:	Anti-Wear, Long Service Life
Model:	JDB-1U P20	Orign:	China
Highlight:	Leaded Solid Bronze Bearing , Solid Bronze Bearing Plain , C83600 Leaded Bronze Bearings

Product Description

JDB-1U P20 C83600 Leaded Tin Bronze Bearing CuSn5Pb5Zn5 Cast Bronze Bushing Solid Bronze Plain Bearing

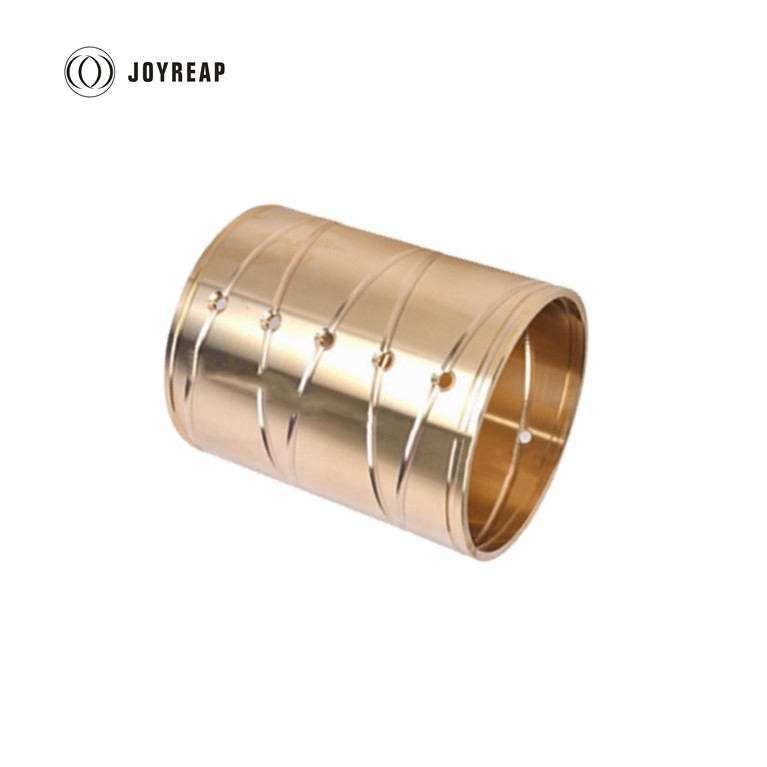

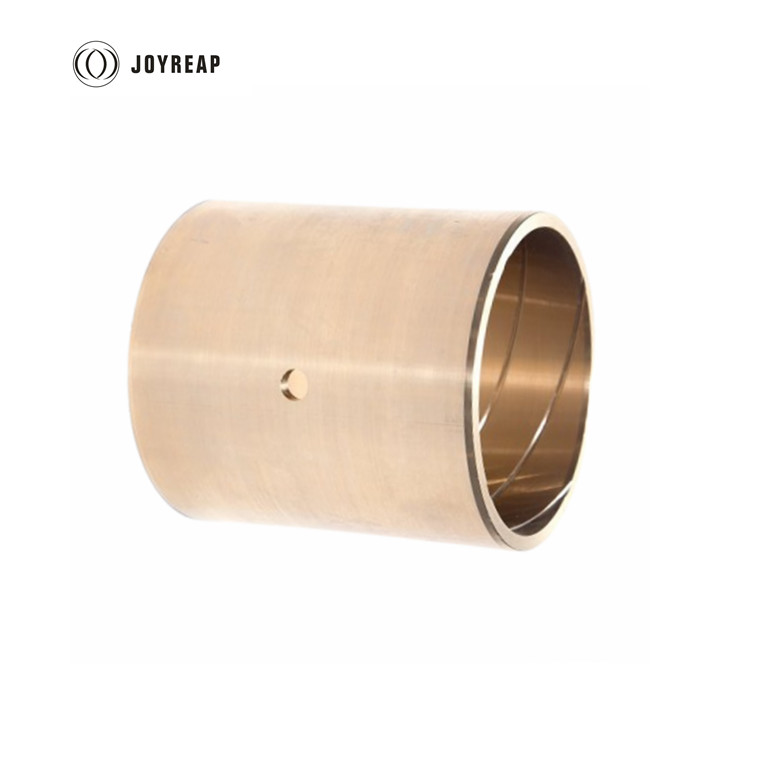

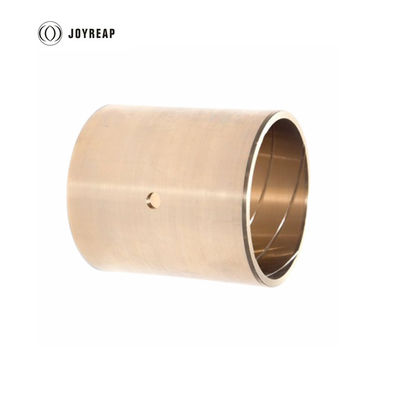

JDB-1U P20 Tin bronze solid bearing is made of CuSn5Pb5Zn5 bronze alloy with oil added in the oil grooves. This type cast bronze sleeve bushing has very good performance of anti-wear. It's also called C83600 cast bronze bearing, solid turned bronze sliding bearing,CNC turned bronze bearing,centifugal cast bronze plain bearing, gunmetal bronze bushing.

Material

CuSn5Pb5Zn5

Material Chemical Composition
%	Cu%	Pb%	Sn%	Zn%	Fe%	Ni%	Al%	P%
Min.	83.00	4.00	4.00	4.00	2.00	0.00	0.00	0.00
Max.	87.00	6.00	6.00	6.00	0.30	2.00	0.01	0.10

Oil Grooves Types

High Strength Brass Solid Bronze Bearing 0

Availability

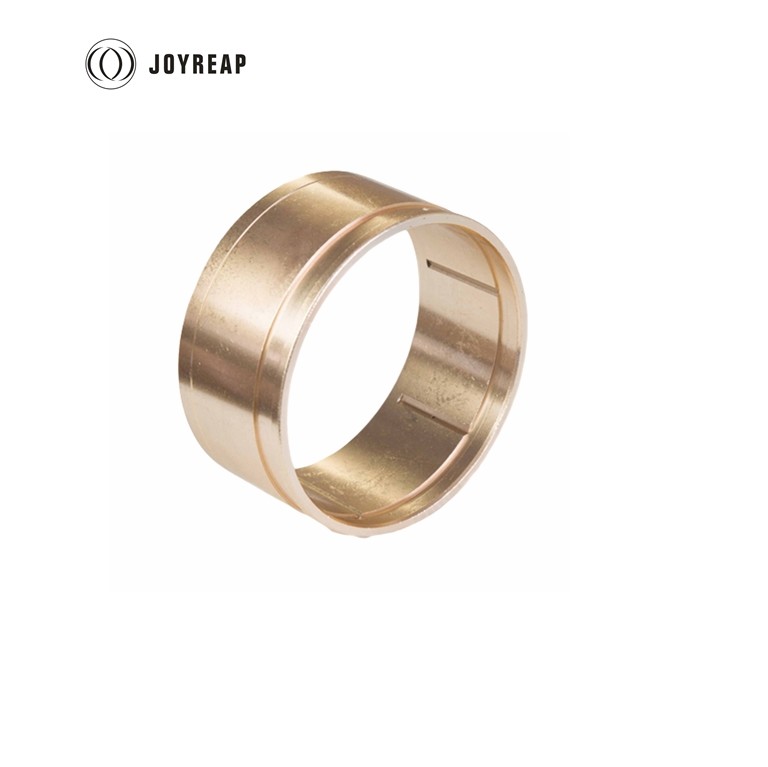

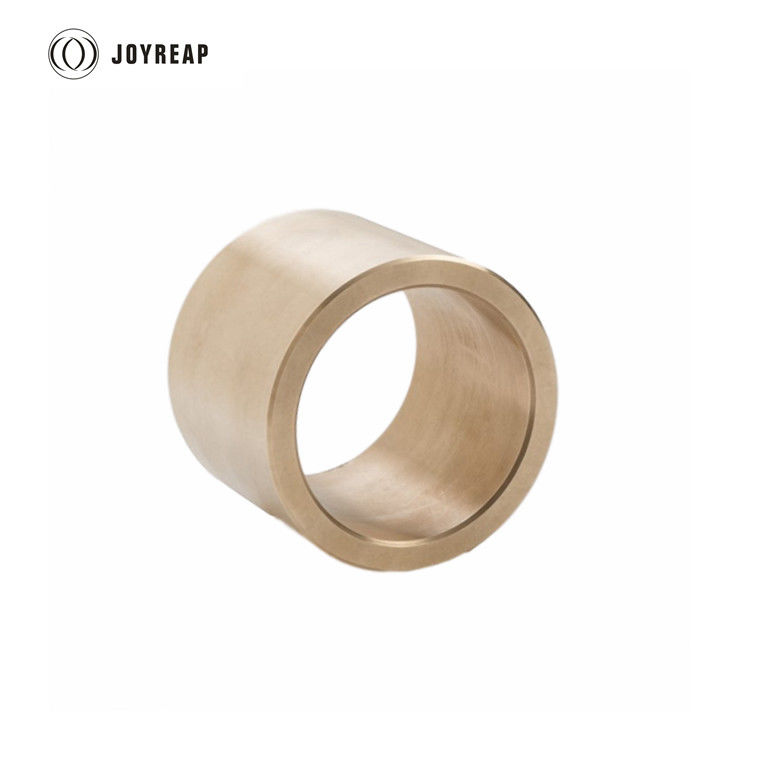

Cylindrical cast bronze bushing, flanged bushing, thrust washer
Special designs can be made according to your design

Application

JDB-1U P20 cast bronze bearing is widely used in forest machine, offshore equipment, marine industry, dumpers, agriculture equipments.

Technical Data

Material	CuSn5Pb5Zn5
Density	8.90
HB Hardness	≥70
Tensile Strength MPa	≥250
Yield Strength MPa	≥90
Elongation %	≥13
Thermal Expansion Coefficient	1.8x10*%/°C
Max. Operation Temp.	-40~+400°C
Max. load MPa	50
Max. speed m/s(Dry)	0.5
Max. speed m/s(Lubricated)	2.50
Max. PV (N/mm² *m/s)(Dry)	1
Max. PV (N/mm² *m/s)(Lubricated)	1.65
