Name: Nickel Aluminum Solid Bronze Bearing C95800 CuAl10Ni5Fe5 Cast Bronze Bushing
Brand: Jiaxing Joyreap Precision Machinery Co.,Ltd
SKU: JDB-1U P30
Availability: InStock

Nickel Aluminum Solid Bronze Bearing C95800 CuAl10Ni5Fe5 Cast Bronze Bushing

Basic Information

Place of Origin:	China
Brand Name:	Joyreap
Certification:	ISO,IATF16949
Model Number:	JDB-1U P30

Minimum Order Quantity:	100
Packaging Details:	Cartons+Wooden Pallets
Delivery Time:	30 days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	500,000PCS/Month

Get Best Price Contact Now

Detail Information

Descprition:	Aluminum Bronze Bearing	Material:	C95800,C95400
Lubrication:	Oil Or Grease	Application:	Crane, Marine Industry
Name:	Solid Bronze Bearing	Keywords:	Cast Bronze Bushing
Highlight:	Aluminum Solid Bronze Bearing , Solid Bronze Bearing C95800 , Nickel Aluminum Bronze Bearing

Product Description

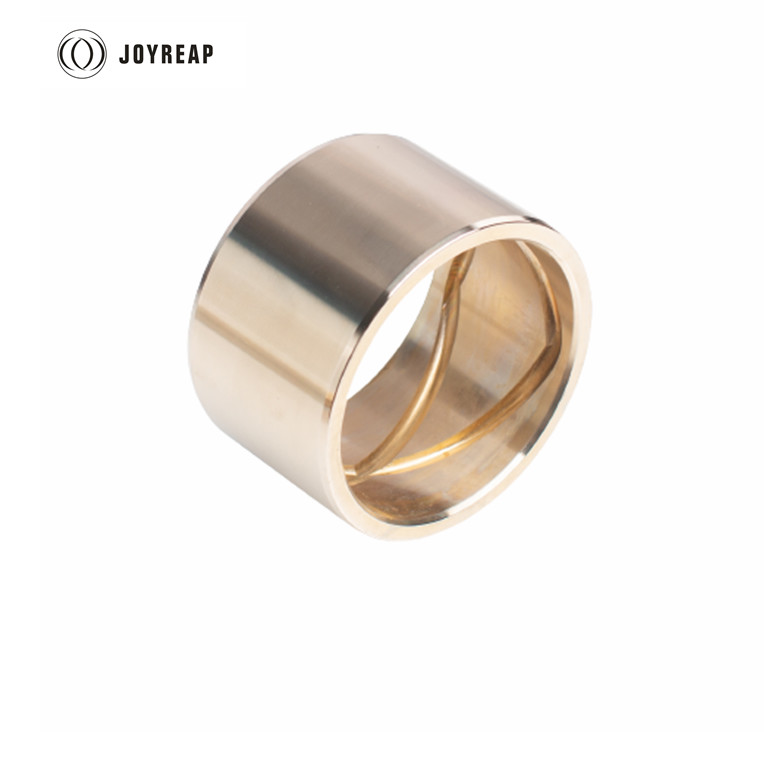

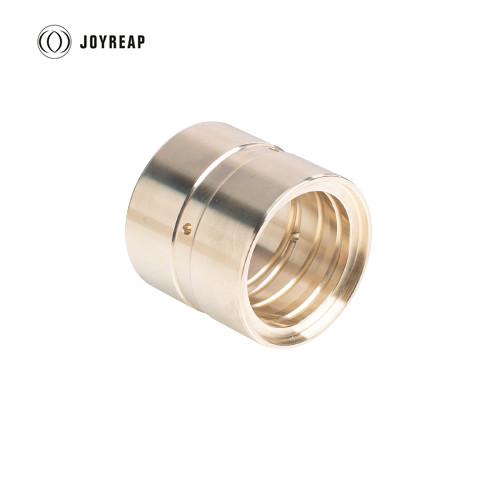

JDB-1U P30 C95800 Nickel Aluminum Solid Bronze Bearing CuAl10Ni5Fe5 Cast Bronze Bushing

JDB-1U P30 Aluminum bronze solid bearing is made of CuAl10Ni5Fe5 bronze alloy with oil added in the oil grooves. This type cast bronze solid sliding bearing has very good performance of anti-corrosion. It's also called cast aluminum bronze bearing, C95500 solid turned bronze sliding bearing,CNC turned bronze self lubricating bearing.

Material

CuAl10Ni5Fe5

Material Chemical Composition
%	Cu%	Al%	Ni%	Fe%	Mn%	Sn%	Pb%	Zn%
Min.	76.00	10.00	3.00	3.00	0.00	0.00	0.00	0.00
Max.	83.00	11.50	5.50	5.50	3.50	0.10	0.03	0.40

Availability

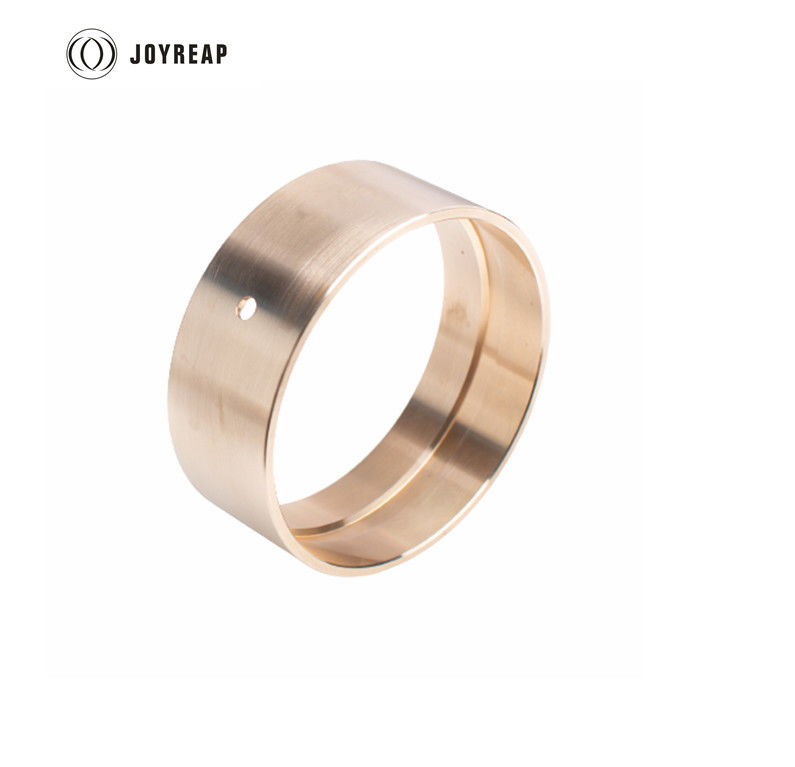

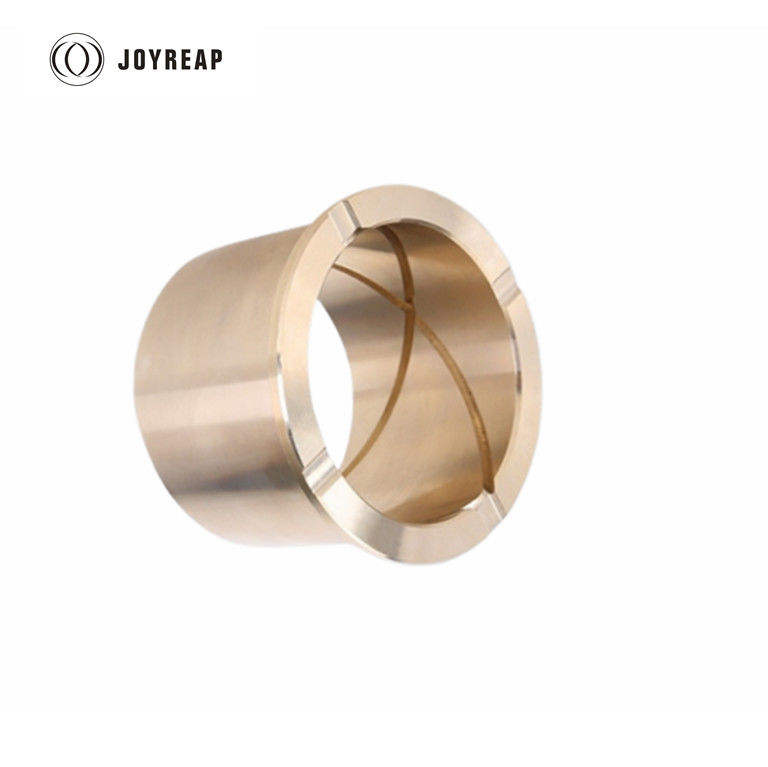

Cylindrical cast bronze bushing, flanged bushing, thrust washer
Special designs can be made according to your design.

Application

JDB-1U P30 cast bronze solid bearing is widely used in offshore equipment, marine industry, construction equipments and etc

Technical Data

Material	CuAl10Ni5Fe5
Density	7.8
HB Hardness	≥150
Tensile Strength MPa	≥500
Yield Strength MPa	≥260
Elongation %	≥10
Thermal Expansion Coefficient	1.6x10*%/°C
Max. Operation Temp.	-40~+400°C
Max. load MPa	50
Max. speed m/s(Dry)	0.5
Max. speed m/s(Lubricated)	2.5
Max. PV (N/mm² *m/s)(Dry)	1
Max. PV (N/mm² *m/s)(Lubricated)	1.65
