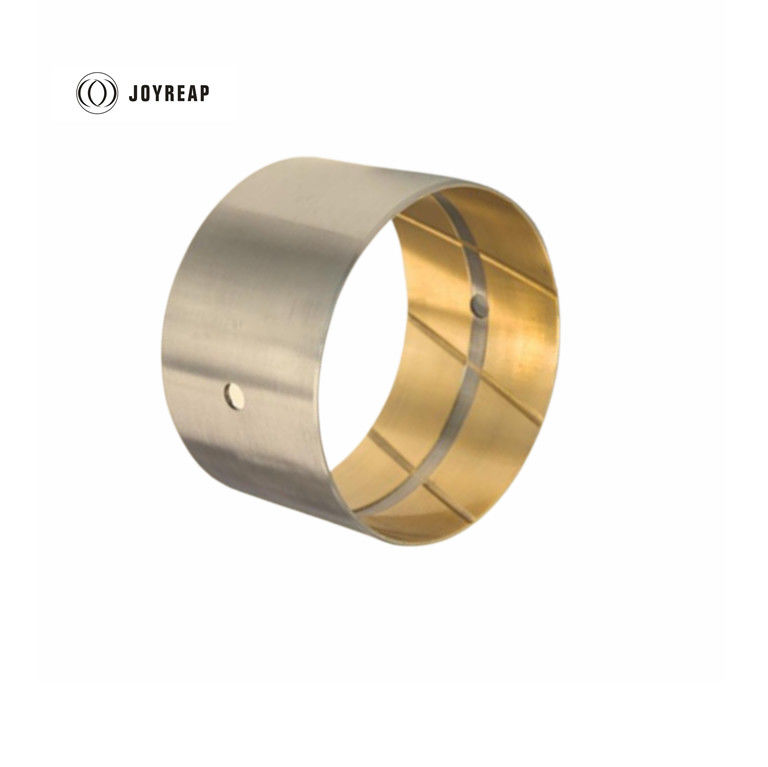

Trunnion Bimetal Bushing Self Lubricating Bimetallic Bearing Bogie Suspension

PVB036 wrapped composite bimetal sliding bearing is made of steel back with CuPb6Sn6Zn3 layer.the inner bronze alloy surface of PVB036 bimetal bush can be processed with various types of oil grooves, oil hole and oil pockets according to the different working applications, to suitable for the conditions which can not continuously put oils or difficult to apply the grease.


1.Sinter bronze liner material: CuPb6Sn6Zn3
2. Metal backing low carbon steel back

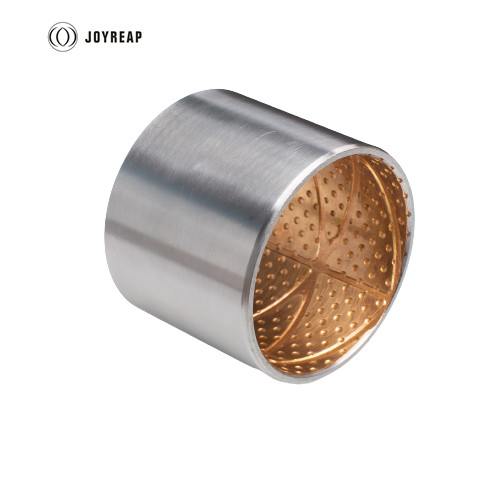

Inner Surface Oil Pockets Types

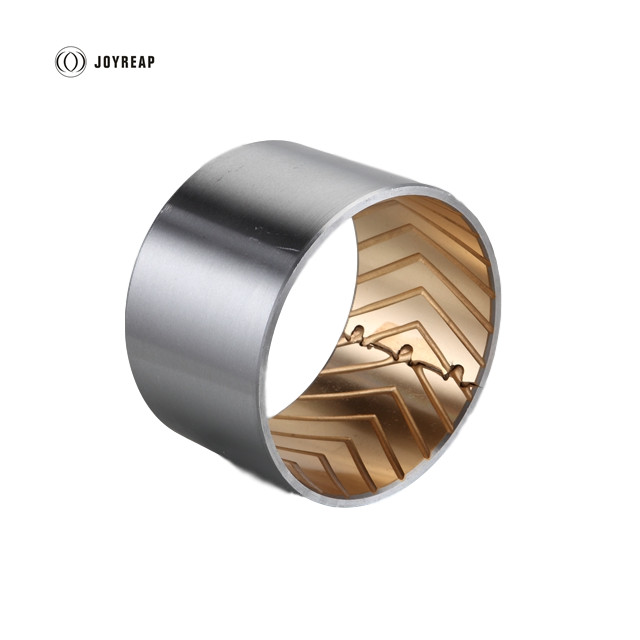

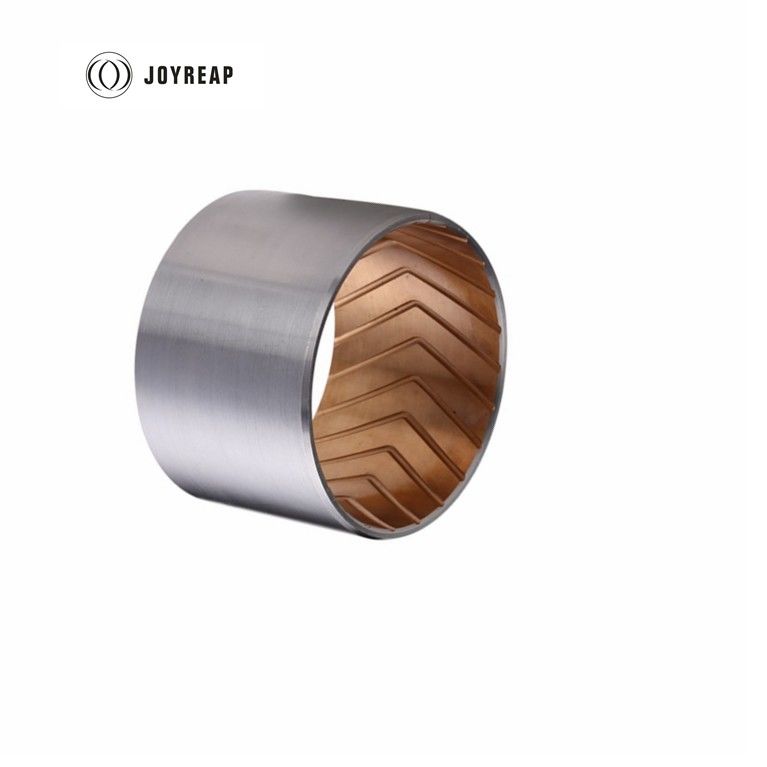

Bimetal Bush Oil Grooves types

Bimetal Bushing Gap Types

• Standard cylindrical bimetal bushing, bimetal thrust washers and bimetal strips
• Special designed bimetal bearings are produced at short notice

PVB036 Bimetal bearing suits for occasions with medium speed, medium load, with oil lubrication
Bimetal bush with surface coated with soft alloy, it can be used as bearing and connecting rod bushing of high-speed internal combustion engine


Technical Data
