Name: Polymer Metal Plain Bearing Bushes Low Friction DX POM Bushings
Brand: Jiaxing Joyreap Precision Machinery Co.,Ltd
SKU: ZR-020T
Availability: InStock

Polymer Metal Plain Bearing Bushes Low Friction DX POM Bushings

Basic Information

Place of Origin:	China
Brand Name:	Joyreap
Certification:	ISO,IATF16949
Model Number:	ZR-020T

Packaging Details:	Cartons+Wooden Pallets
Delivery Time:	30 days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	500,000PCS/Month

Get Best Price Contact Now

Detail Information

Description:	DX Bushing Bearing	Material:	Steel+bronze+POM
Lubrication:	Oil Or Grease	Other Code:	DX, PAP P20, SF-2,KX
Name:	Metal Plain Bearing	OEM:	YES
Highlight:	Polymer Metal Plain Bearing , Metal Plain Bearing Low Friction , Plain Bearing Bushes DX

Product Description

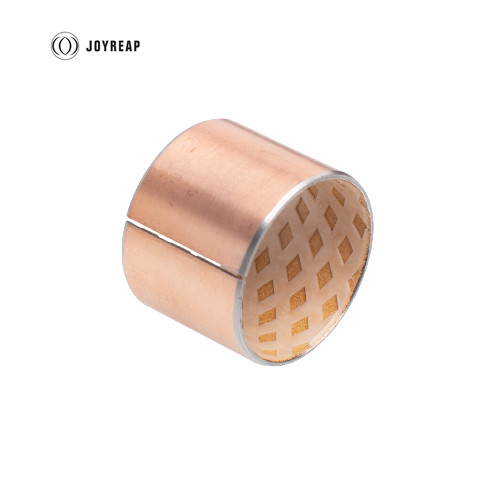

Diamond Oil Pockets POM Bushings Steel Back DX Metal Polymer Plain Bearing Bushes

ZR-020T boundary lubricating bearing is a type of DX bushing with diamound pocket pink color POM coating. This type composite plain bearing has same material structure with other DX bearing. It's also called POM coated boundary lubricating bearing, SF-2 oilless bearing,plain sliding bearing and dry bushes.

Material Structure

POM Lined Bushing.jpg

1. POM with fillers

2. Porous bronze

3. Steel backing

4. Copper plating or tin plating

Characteristics

Low friction, anticorrosion and long life
Suitable for marginally lubricated and dry operating conditions
Performance is similar to DS bushing in foreign country

Application

ZR-020T DX bushing Bearing is widely used in hoisters, bulldogger, tower cranes, and printing or dyeing machines for textiles, steering gear, power steering and so on

Technical Data

Max Load (Static)	250N/mm²	Operation Temperature range		-40°C~+110°C
Max Load (Very low speed)	140N/mm²	Max.speed	Greased	2m/s
Max Load(Rotating oscillating)	70N/mm²		Continuous oiling	>2m/s
Max. PV Grease Lubricated	3N/mm²*m/s	Thermal conductivity		50W(m*K)-1
Coefficient of thermal expansion	1110-6K-1	Friction coefficient		0.05~0.20
The oil deposits have to be filled with grease before bearing assembling.
