Name: PTFE Self Lubricating Sleeve Bearing Bushings Stainless Steel
Brand: Jiaxing Joyreap Precision Machinery Co.,Ltd
SKU: ZR-012S
Availability: InStock

Detail Information

Base Material:	SS304, SS316	Lubrication:	Sprayed
Advantage:	Self Lubricating	Application:	Food Industry, Chemical Industry
Name:	Metal Plain Bearing	Keywords:	Sleeve Bearing Bushing
Highlight:	PTFE Sleeve Bearing Bushing , Sleeve Bearing Bushing Stainless Steel , Self Lubricating Sleeve Bushings

Product Description

Stainless Steel Based Sprayed PTFE Composite Bushing DIN 1494 Self Lubricating Sleeve Bearings

Large Image Stainless Steel Based Sprayed PTFE Composite Bushing DIN 1494 Self Lubricating Sleeve Bearings

Product Details:

Model Number:	PVB012S

Contact Now

Chat Now

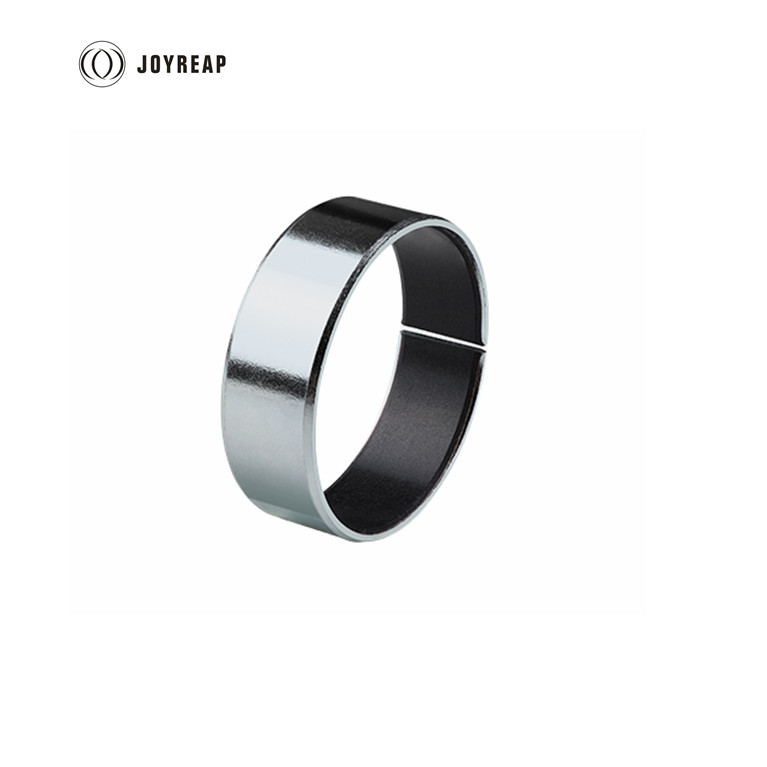

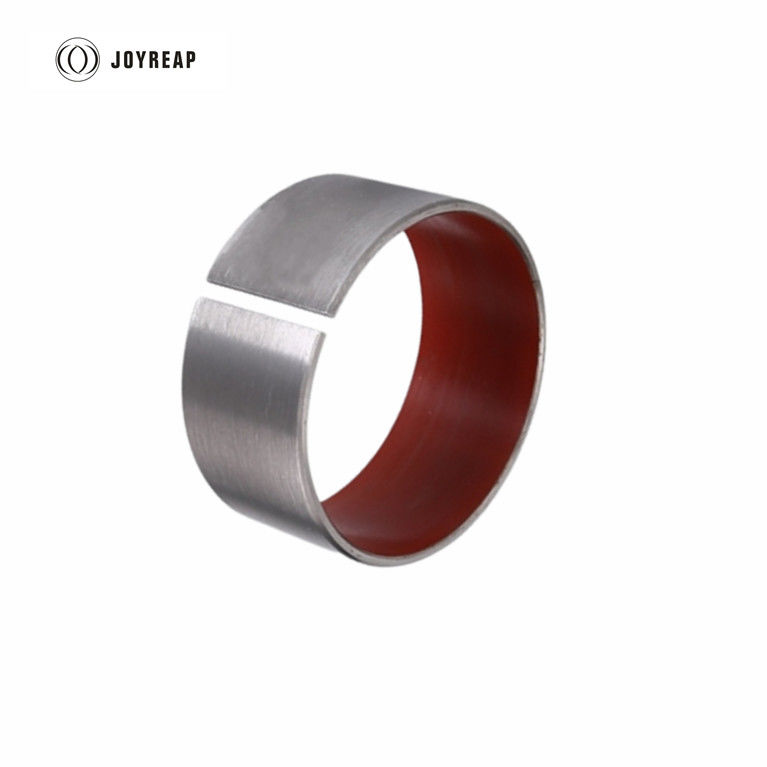

Stainless Steel Sprayed Coated Self Lubricating Sleeve Bearing Bushings

ZR-012S Stainless steel PTFE sprayed DU Bushing is a special type DU bushing. This type of sliding bearing takes SS304 or SS316 stainless steel as base material with sprayed PTFE as lubricating layer. This type of oilless sliding bushing is also called SF-1SS DU bearing, SS Sprayed DU bushing, SS304 stainless steel sleeve bushing,SS316 stainless steel bearing and etc

Characteristics

High corrosion resistance
High wear resistance
Especially suitable for occasions with strong acid, strong alkali, light load, medium and low speed
Wear resistance is obviously better than the monolithic PTFE bearings and graphite bearings

Availability

Standard cylindrical stainsteel steel bushings, flanged stainless steel bushings, thrust washers and strips are availabe

Special designs are produced at short notice

Lead free type is also available

Application

ZR-012S Stainless steel bushing bearing is widely used in pumps,ball valves,marine industry,food Machine and chemical acid-base flowmeters

Technical Data

Max load pressure:	100N/mm²
Friction Coef. μ:	0.03-0.18
Applicable temperature :	-190℃-280℃
Max allowable PV value (dry):	3.0N/mm²·m/s
Max sliding speed:	2.5m/s
Max allowable PV value (oil):	40N/mm²·m/s

Tag:

Place of Origin:	China
Brand Name:	Joyreap
Certification:	ISO,IATF16949
Model Number:	ZR-012S

Packaging Details:	Cartons+Wooden Pallets
Delivery Time:	30 days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	100,000PCS/Month
