Name: OEM Split Metal Plain Bearing Self Lubricating POM Coated Composite
Brand: Jiaxing Joyreap Precision Machinery Co.,Ltd
SKU: ZR-020W
Availability: InStock

Detail Information

Material:	Steel+bronze+POM	Lubrication:	Oil Or Grease
Surface Treatment:	Cu Plating, Tin Plating, Zinc Plating	Application:	Pumps
Name:	Metal Plain Bearing	OEM:	YES
Highlight:	Split Metal Plain Bearing , OEM Metal Plain Bearing , Split Plain Bearing Self Lubricating

Product Description

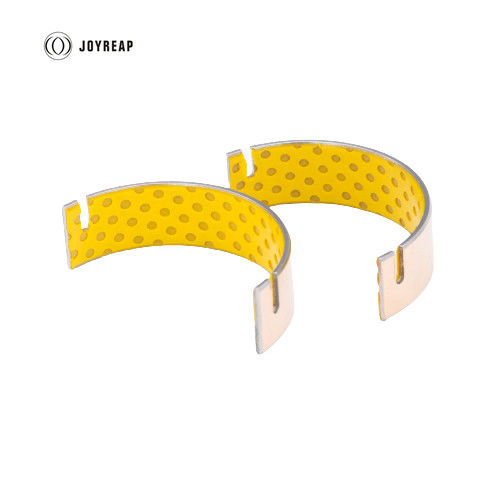

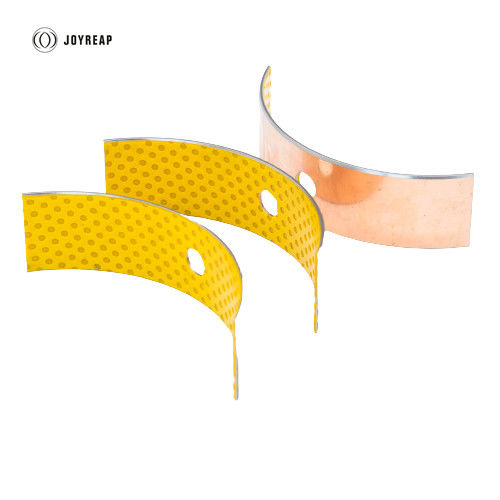

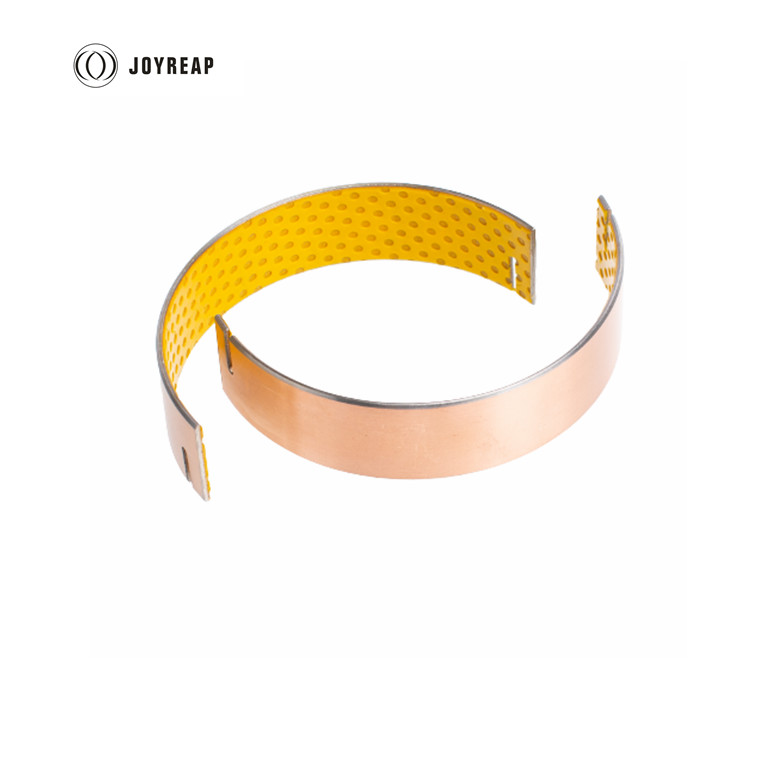

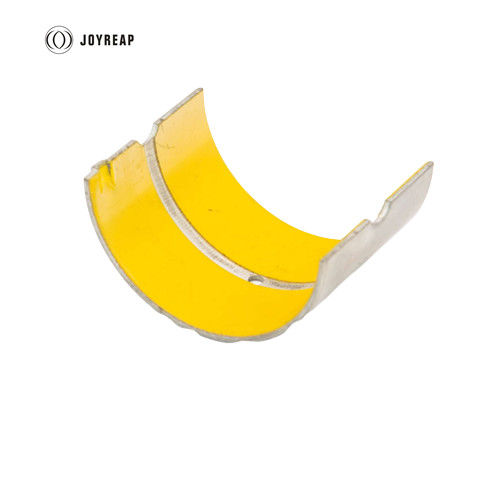

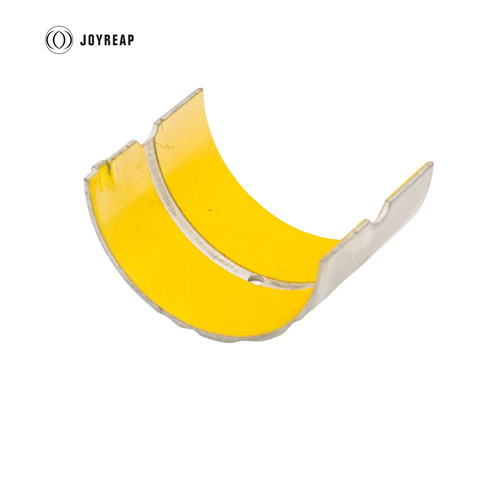

POM Coated Composite Plain Split Bearing Shell DX Bearing Bushes

ZR-020W POM lined sliding bearing is a made of steel back sintered bronze with POM coating. This type boudnary lubricating bushing has always been made as split bearing, half bearing bushing, Bearing Shells. PVB020W sliding bearing is also called boundary lubricating bearing,DX bearing,SF-2 oilless bearing,PAP P20 composite plain bearing and dry bushes.

Material Structure

POM Lined Bushing.jpg

1. POM 0.3~0.5mm.

2. Porous bronze 0.2~0.3mm.

3. Steel backing 0.4~2.2mm.

4. Copper plating 0.008mm.

Characteristics

Good load capacity & wear-resistant
Suitable for linear, oscillating and rotating movements
Optimum performance under relatively high loads and low speeds
Lead free bushing can meet environment protection requirement

Availability

Split Bearing, Half Shells and other customized shape

Application

ZR-020W self lubricating bearing is widely used in all kinds of hydraulic pumps, gear pumps,textile machine and etc

Technical Data

Max Load (Static)	250N/mm²	Operation Temperature range		-40°C~+110°C ;
Max Load (Very low speed)	140N/mm²	Max.speed	Greased	2m/s
Max Load(Rotating oscillating)	70N/mm²		Continuous oiling	>2m/s
Max. PV Grease Lubricated	3N/mm²*m/s	Thermal conductivity		50W(m*K)-1
Coefficient of thermal expansion	1110-6K-1	Friction coefficient		0.05~0.20
The oil deposits have to be filled with grease before bearing assembling
