Name: Excavator Bucket Pin Bushing CuZn25Al5 C86300 Manganese Bronze Sleeve Bushing Bearing
Brand: Jiaxing Joyreap Precision Machinery Co.,Ltd
SKU: JDB-1U
Availability: InStock

Detail Information

Material:	C86300,SAE430B,CuZn25Al5	Description:	Bronze Bearing
Lubricating:	Oil Or Grooves	Application:	Excavator

Product Description

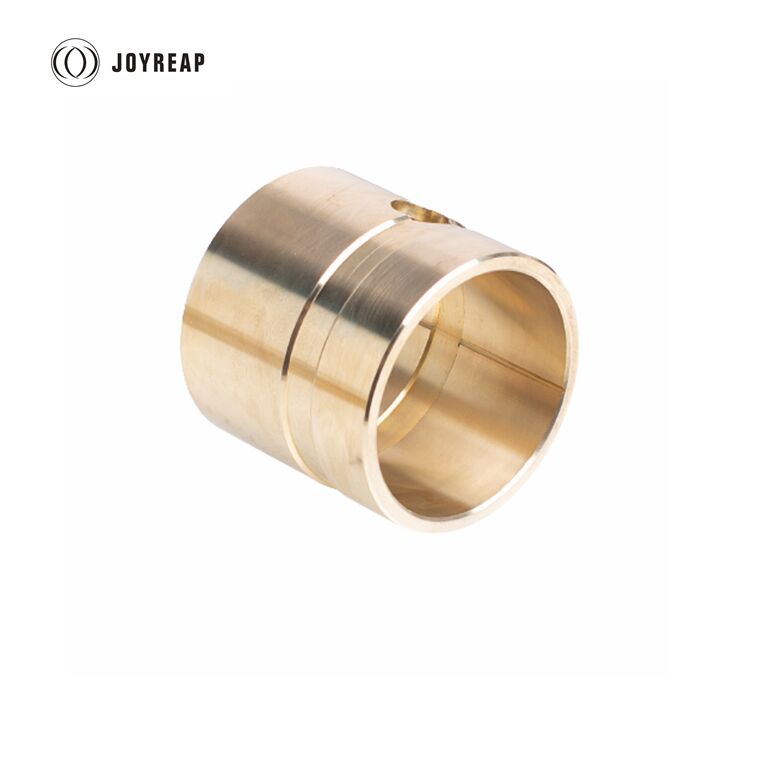

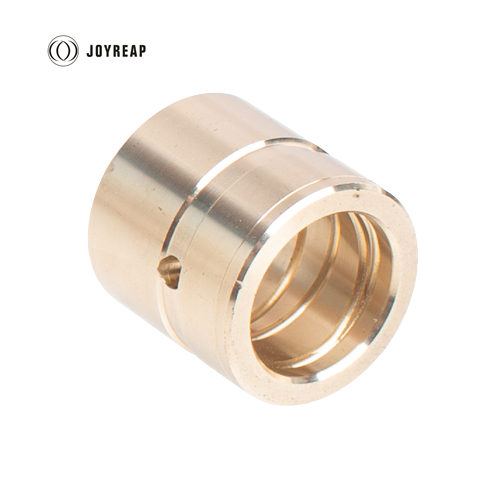

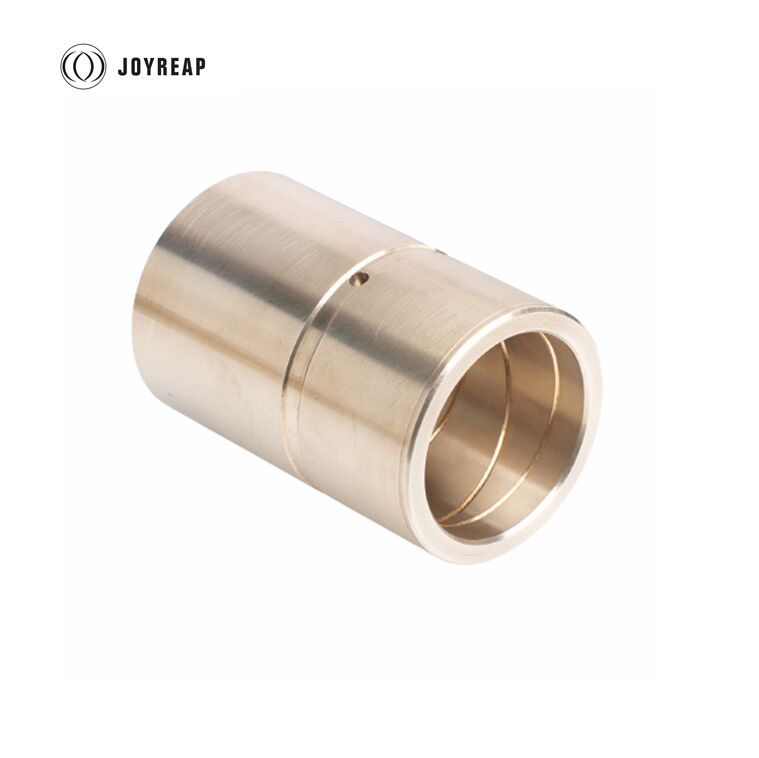

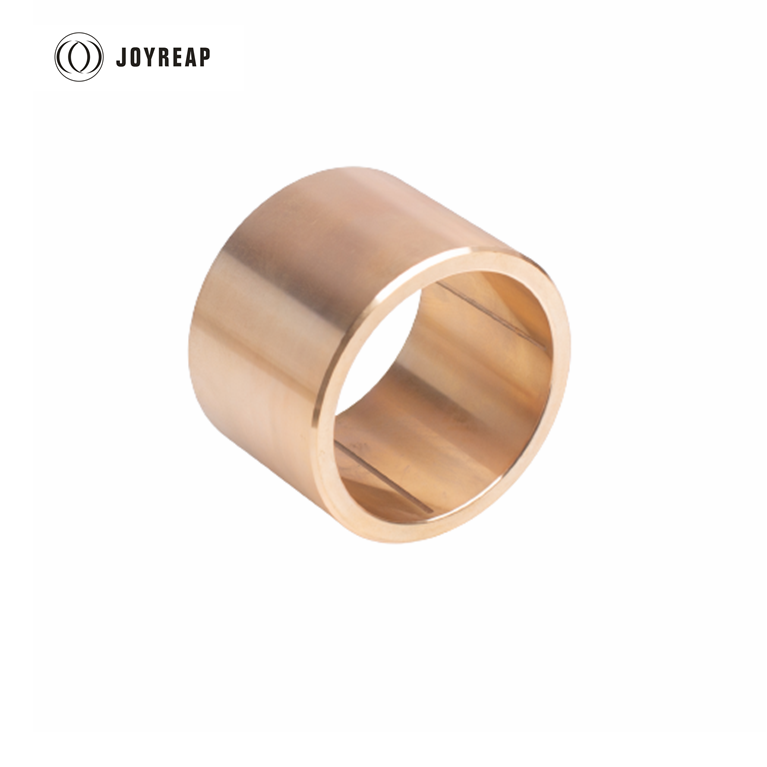

Excavator Bucket Pin Bushing CuZn25Al5 C86300 Manganese Bronze Sleeve Bushing Bearing

Bucket pin bushing is made of high tensile manganese bronze alloy material by high precion CNC machine to keep tight tolerance.

Material

CuZn25AI5Mn4Fe3

Material Chemical Composition
%	Cu%	Pb%	Sn%	Zn%	Fe%	Ni%	Al%	Mn%
Min.	60.00	0.00	0.00	22.00	2.00	0.00	5.00	2.50
Max.	66.00	0.20	0.20	28.00	4.00	1.00	7.50	5.00

Technical Data

Material	CuZn25Al5
Density	7.80
HB Hardness	≥210
Tensile Strength MPa	≥750
Yield Strength MPa	≥450
Elongation %	≥12
Thermal Expansion Coefficient	1.9x10*%/°C
Max. Operation Temp.	-40~+300°C
Max. load MPa	50
Max. speed m/s(Dry)	0.5
Max. speed m/s(Lubricated)	1
Max. PV (N/mm² *m/s)(Dry)	1.65
Max. PV (N/mm² *m/s)(Lubricated)	3.25

We make a lot of bucket pin bushing for Lie-bherr as follows:

9226513	9642248	94009420	94057357	9166643	93022526
704331608	9642218	9951305	9166644	704333708	9645157
94024145	7021214	9142471	9226515	9142471	9923812
12941215	9164350	974832708	94079009	974275908	94088697
94079009	12919828	974075408	93015922	93022526	9166644
12929438	9620195	970870208	9620195	9232871	94024145
9226513	9166644	974644508	9142471	12941215	9169530
9642248	9226513	975152308	94009420	9232871	94061280
94088697	9226513	975055008	9642248	93015922	9642217
94024142	9593363	975032608	9642218	9612402	9170985
94024145	9249800	975011408	9173382	9226513	9710216
10095689	94024142	97157624	94009420	9166644	9642248
10094807	9612402	976784908	7021460	9164350	94057357
9175199	97163512	9642218	9240298	9232871	9233882
9226513	9642217	9164350	9170985	94079009	978459808
97032749	9612402	9642218	9249800	9142471	9164350
704337908	9226513	9790319	9642217	9642218	97138682
97109025	94024145	9642218	9642248	9142471	93022525
97097246	9166644	9955891	9951305	9249799	9142471
97094761	12929438	9164350	9642218	7021214	9620195
976784908	94024142	9142471	9226515	9249800	9232871
9226513	9139795	9620195	9919653	9142471	9173382
9139795	9173382	94061280	9642248	9226515	7021460
93015945	9164350	9226513	9166644	97164505	9166644
