Detail Information

Description:	Oiles Thrust Washer	Material:	Bronze+Graphite
Code:	SPW, JTW,SBW	Lubrication:	Graphite
Feature:	Self Lubricating, Long Life	Application:	Mould Industry
Highlight:	Graphite Thrust Washers Bronze , Thrust Washers Bronze , Bronze Flat Washers Oilless

Product Description

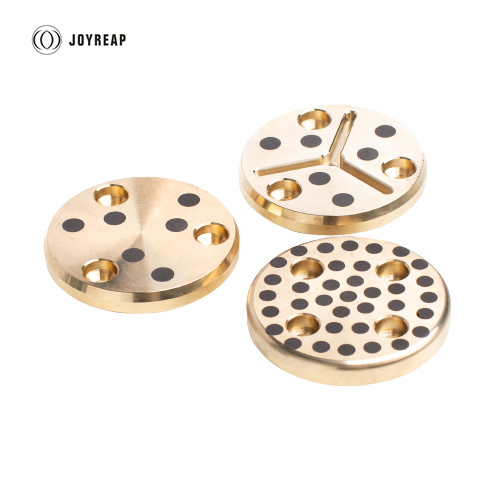

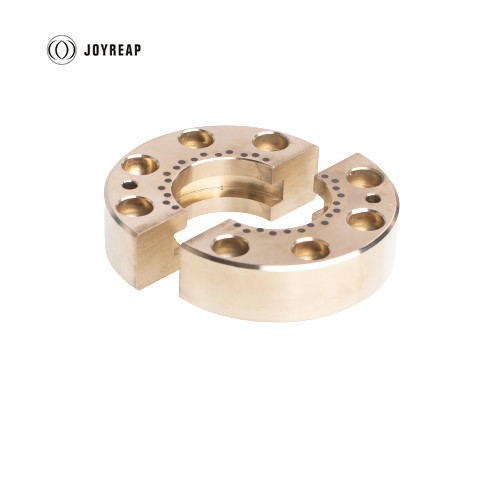

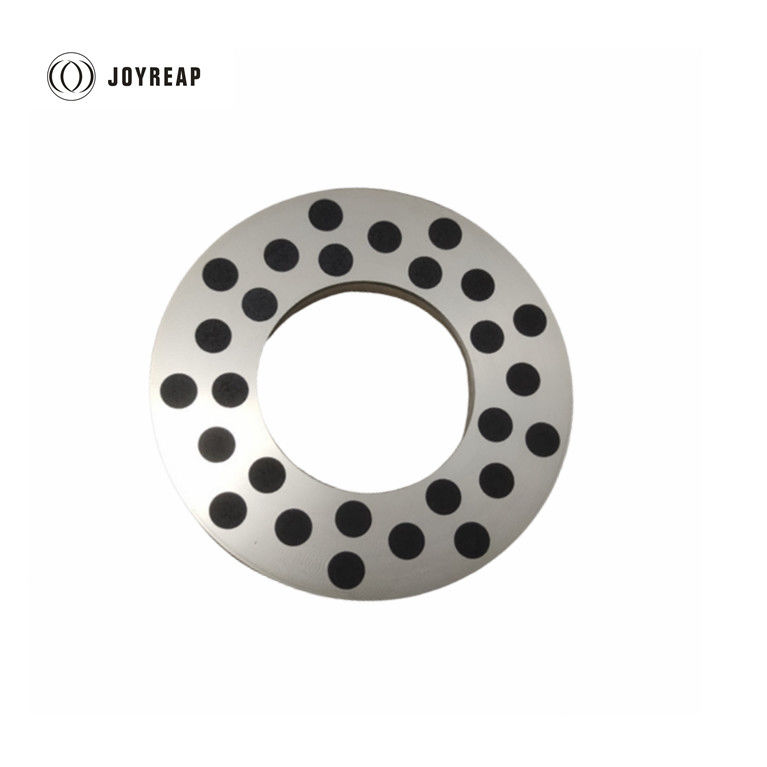

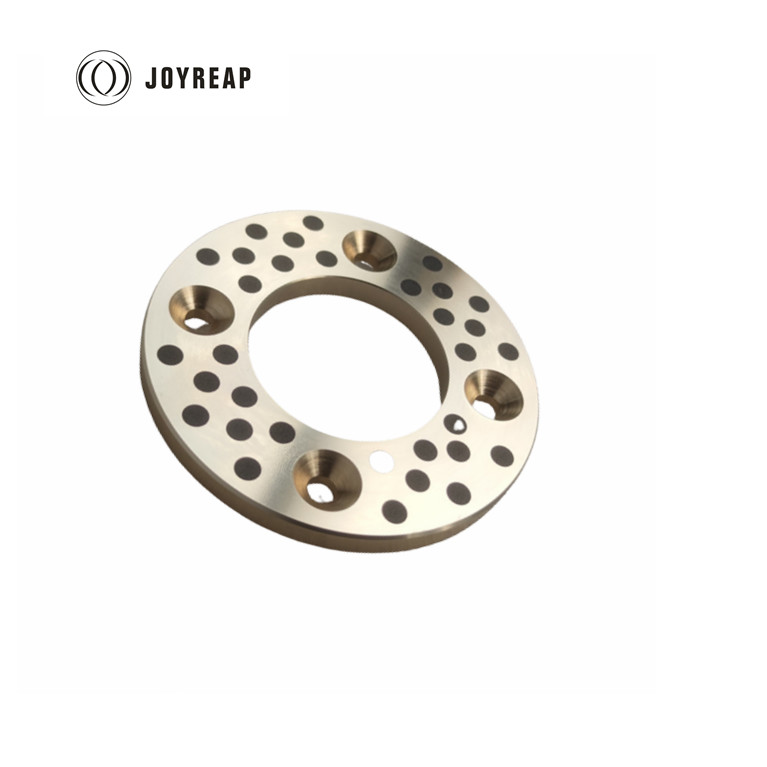

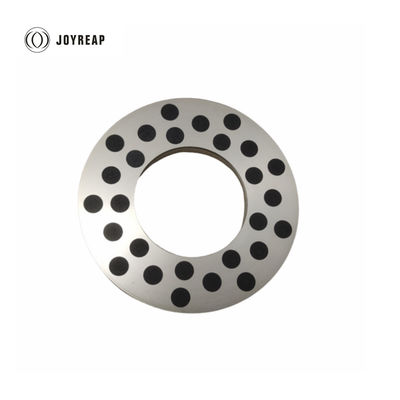

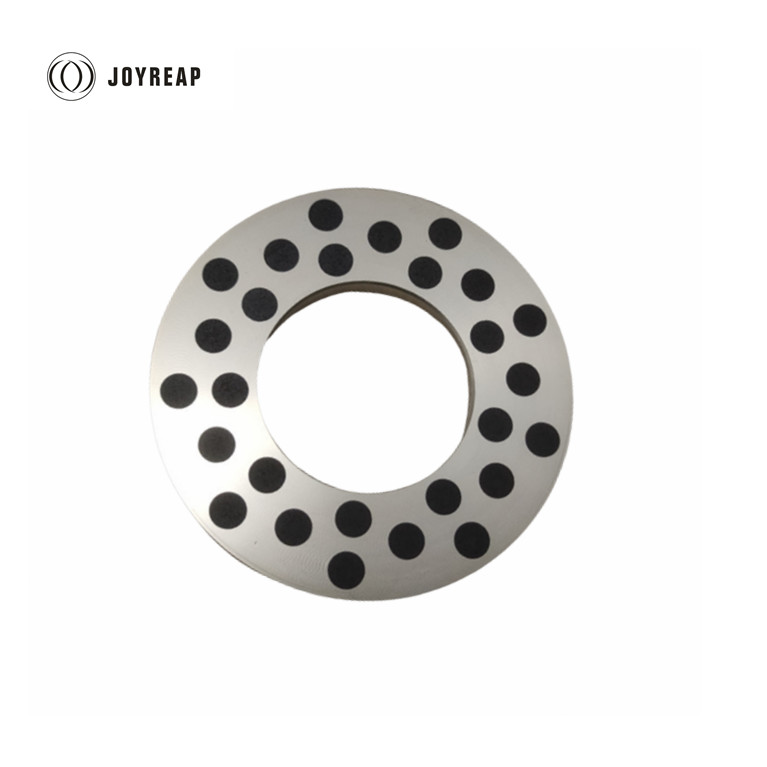

SPW Oiles 500 Thrust Washers Bronze Graphite Oilless Flat Washers JTW Self Lubricating Bronze Alloy Washers

JTW Self-lubricating graphite bronze thrust washers combine the wear resistance of copper alloy with the self-lubricating properties of solid lubricants, making them maintenance-free during use with no oiling. The graphite washers products are widely used in high load, intermittent or oscillating movements, such as steam locomotive production lines, hydraulic turbines, reservoir working/accident doors, plastic machinery

Material

C86300, CuZn25Al5, SAE430 with Graphite

SL4 or PTFE can be made based on your requirement

Characteristics

Cost effective and higher crash strength comparing with other bronze graphite bearing
the solid lubricant of oiles bearing will run out to the shaft through frictional heat, forming an excellent condition for the coexistence of oil and powder lubrication, which not only protects the shaft from wear, but also makes the solid lubricant persist.
Hardness is twice higher than other bronze graphite bushing

Availability

Cylindrical oiles bushing, flanged oiles bushing, thrust washer and slide plate are standard fabrication.
Special designs and material can be made according to your design.

Application

500 Oiles Bronze Graphite Washer is widely used in Metallurgical continuous casting machines,Train supports,Steel rolling equipment,Mining machinery,Gas turbines and etc

Technical Data

Material	CuZn25Al6Fe3Mn3
Density	8
HB Hardness	≥210
Tensile Strength MPa	≥750
Yield Strength MPa	≥450
Elongation %	≥12
Thermal Expansion Coefficient	1.9x10*%/°C
Max. Operation Temp.	-40~+300°C
Max. load MPa	50
Max. speed m/s(Dry)	0.5
Max. speed m/s(Lubricated)	1
Max. PV (N/mm² *m/s)(Dry)	1.65
Max. PV (N/mm² *m/s)(Lubricated)	3.25
