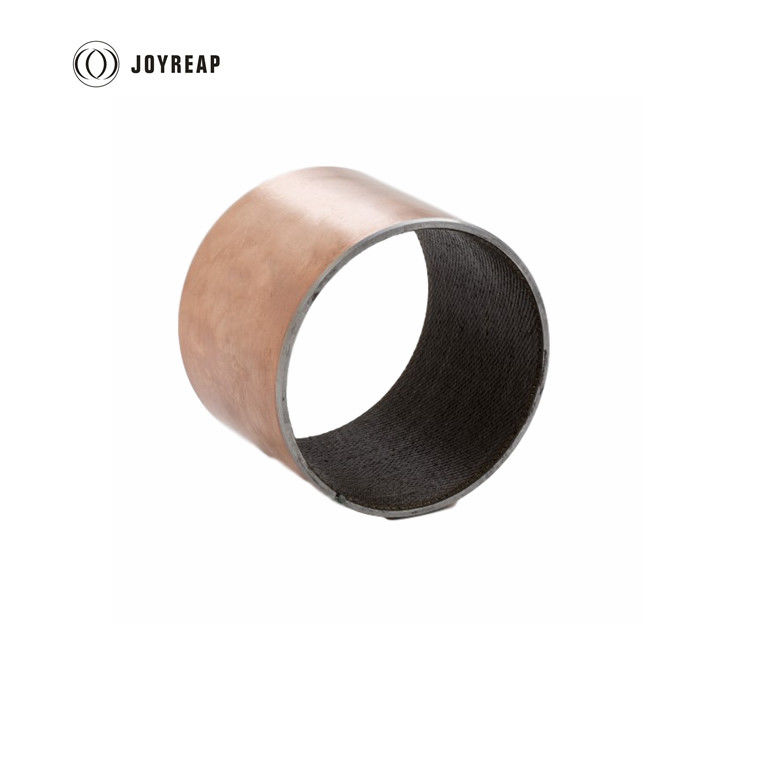

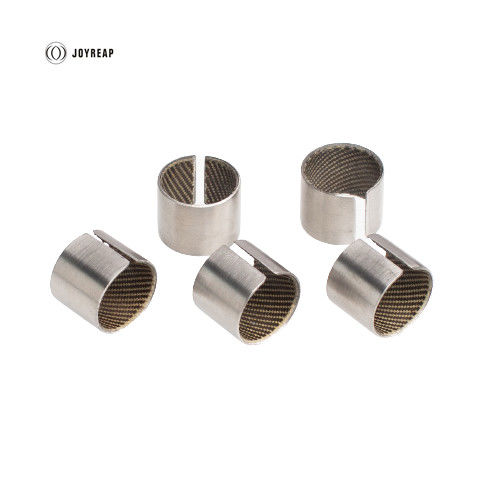

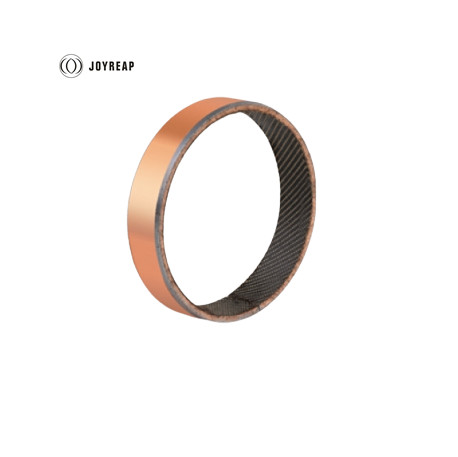

Name: PTFE Composite Sleeve Bearings Fabirc Textile Sleeve Bushing Self Lubricating
Brand: Jiaxing Joyreap Precision Machinery Co.,Ltd
SKU: ZR-019
Availability: InStock

PTFE Composite Sleeve Bearings Fabirc Textile Sleeve Bushing Self Lubricating

Basic Information

Place of Origin:	China
Brand Name:	Joyreap
Certification:	ISO,IATF16949
Model Number:	ZR-019

Packaging Details:	Cartons+Wooden Pallets
Delivery Time:	30 days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	300,000PCS/Month

Get Best Price Contact Now

Detail Information

Material:

PTFE+Fabric PTFE Fiber

Lubrication:

PTFE Fabric

Feature:

Anti-Corrosion

Application:

Chemical Industry, Valve

Highlight:

PTFE Composite Sleeve Bearings

Composite Sleeve Bearings

Sleeve Bushing Self Lubricating

Product Description

Steel Back Sticked Woven Fabric PTFE Fiber Composite Plain Bearing Self lubricating Sleeve Bushes

ZR-019 fabirc textile bushing is made of steel back with high performance PTFE woven fabric.

Material Structure

1. Steel Back

2. Fabrice PTFE Fiber

Characteristics

The PTFE material on the surface is reinforced by copper mesh, load capacity and wear resistance performance improved
Oilless lubrication
Gapless can be met with the elasticity of the material
No noise during working

Application

Door hinges of automobile
Engine compartments
Trunk hinges
Wipers

Tolerance Details

Housing ØH7
Bushing inner-Ø after mountingH9
Shaft tolerancef7 to h8

Mouting Suggestion

Housing: Mounting bevel min. 1.5 mm x 15-45°
Shaft Material:Steel, hardened or untempered, surface roughness ≤ Rz 2-3 Shaft: Mounting bevel 5 mm x 15°, edges rounded
The application of an adequate force fitting mandrel is advisable. Grease lubrication of the outer surface may be necessary when mounting
