Name: C95500 Aluminum Graphite Bronze Bearing Anti Wear 500 Oiles Bushes
Brand: Jiaxing Joyreap Precision Machinery Co.,Ltd
SKU: JDB-30
Availability: InStock

Detail Information

Material:	JM7-15, C95500	Lubrication:	Graphite,SL4, PTFE
Feature:	Self Lubricating, Anti Wear	Application:	Marine Industry
Name:	Graphite Bronze Bearing	Keywords:	Aluminium Bronze Oiles Bush
Highlight:	Aluminum Graphite Bronze Bearing , Graphite Bronze Bearing Anti Wear , C95500 Aluminum Bronze Bearings

Product Description

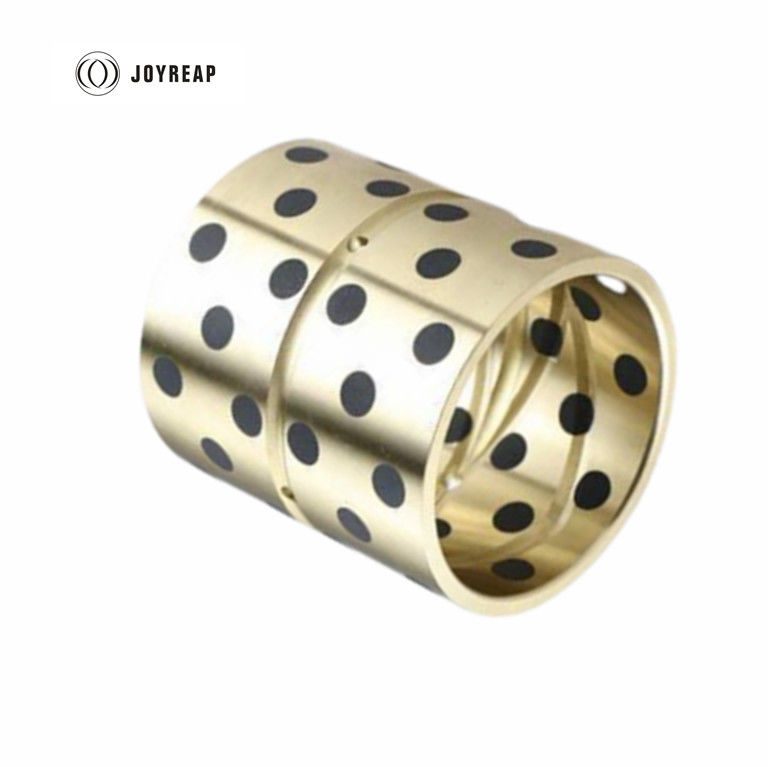

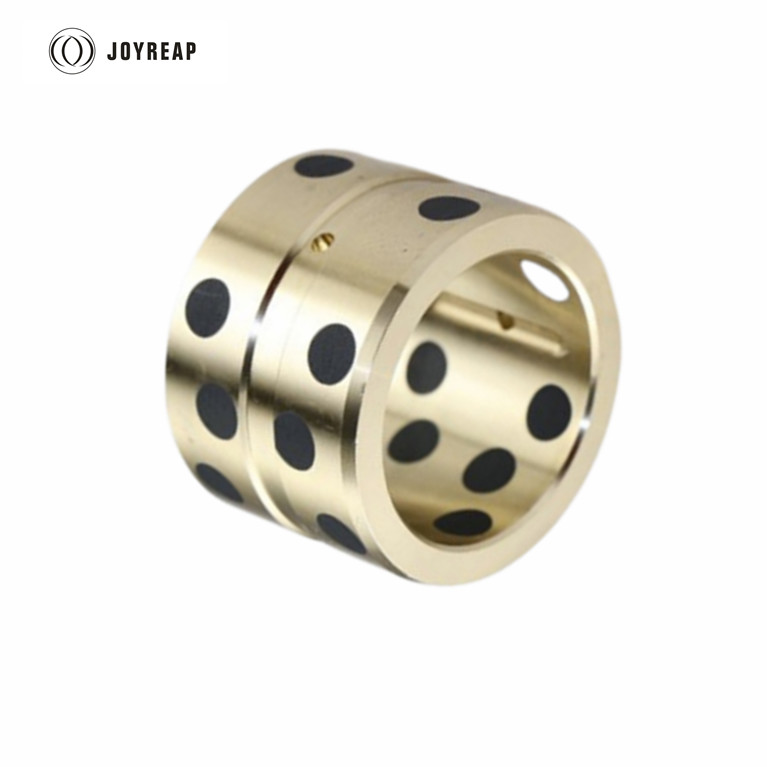

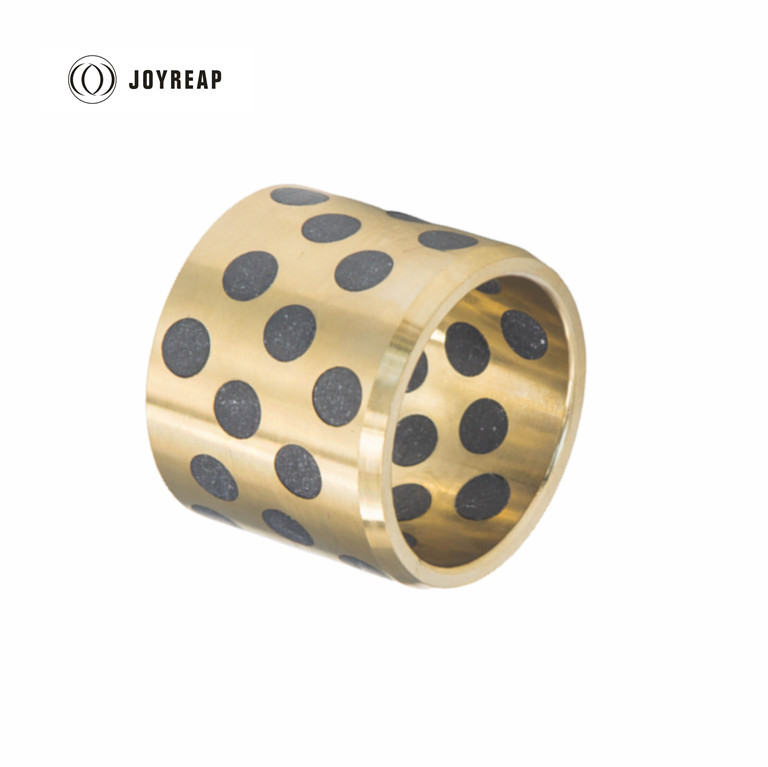

C95500 Oiles Aluminum Bronze Bearings JM7-15 Bronze Graphite 500 Oiles Bushes Self lubricating Bronze Sliding Bearing

JDB-30 Aluminium bronze oiles bush is made of aluminium alloy base material with graphite, PTFE or SL4 .This type of oiles bearing is also called oiles 500AB SL1 bronze bearing, C95500 bronze oiles bearing,CuAl10Ni bronze alloy oil free bushing ,bronze graphited oiles bearing ,graphite inlaid 500 oiles bearing,solid lubricant sliding bearing,oiles 500 bronze bearing and JM7-15 self lubricating bearing.

Material

CuAl10Ni5Fe5+Graphite

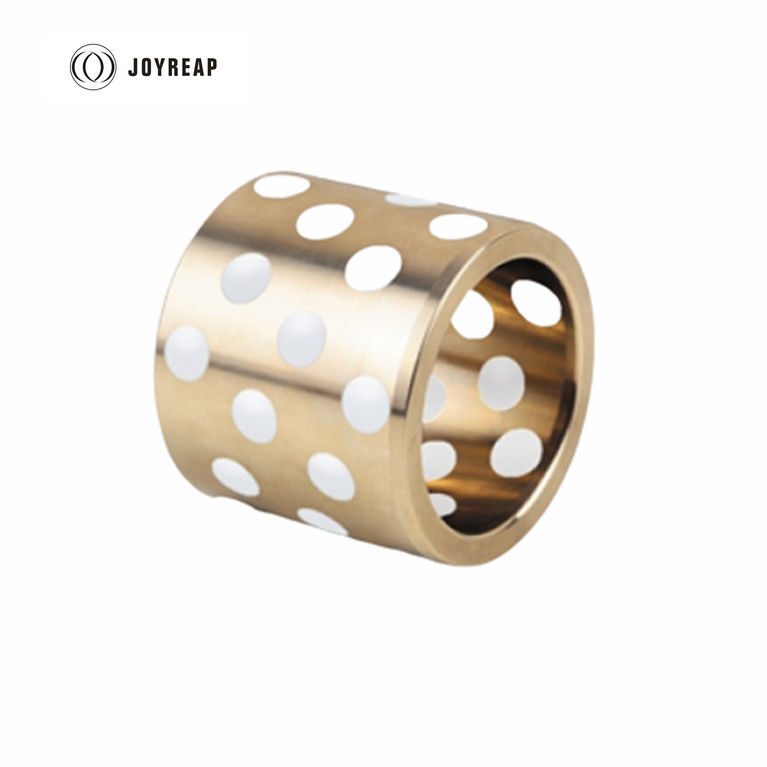

PTFE or SL4 lubricant can be made based on requirement

CuAl10Ni5Fe5 Material Chemical Composition
%	Cu%	Al%	Ni%	Fe%	Mn%	Sn%	Pb%	Zn%
Min.	76.00	10.00	3.00	3.00	0.00	0.00	0.00	0.00
Max.	83.00	11.50	5.50	5.50	3.50	0.10	0.03	0.40

Characteristics

Cost effective and higher crash strength comparing with JDB-20 type.
Its ends can even be welded with machine part and assemble together.

Availability

Cylindrical bushing, flanged bushing, thrust washer and slide plate are standard fabrication.

Special designs and material can be made according to your design.

Application

JDB-30 Aluminium bronze bush is widely used for Marine applications, machine parts, worm wheels, valve guides and seats in aircraft engines, corrosion-resistant parts, bushings, gears, worms, pickling hooks and baskets, agitators

Technical Data

Material	CuAl10Ni5Fe5
Density	7.8
HB Hardness	≥150
Tensile Strength MPa	≥500
Yield Strength MPa	≥260
Elongation %	≥10
Thermal Expansion Coefficient	1.6x10*%/°C
Max. Operation Temp.	-40~+400°C
Max. load MPa	50
Max. speed m/s(Dry)	0.5
Max. speed m/s(Lubricated)	2.5
Max. PV (N/mm² *m/s)(Dry)	1
Max. PV (N/mm² *m/s)(Lubricated)	1.65

Base Materail International Code

Common name	International Code
Standard	China	Germany	Japan	European	British	Italy	American
Standard	GB1176-87	DIN	JIS	(EN 1982)	BS 1400	JM	ASTM(UNS)
Manganese bronze	ZCuZn25Al5Mn4Fe3	CuZn25Al5	CAC304/HBsC4		HTB2	JM-18	C86300(SAE430B)
Nickel-Aluminum Bronze	CuAl10Ni5Fe5	G-CuAl10Ni	AlBC3	CB333G	AB2	JM7-15	C95500
Leaded bronze / Gun Metal	ZCuSn5Pb5Zn5	CuSn5ZnPb	BC6 /BC6C	CC491K / CB491K	LG2	JM1-15	C83600(ASTM B 505)
Leaded bronze / Gun Metal	ZCuSn7Zn4Pb7	G-CuSn7ZnPb,RG-7		CC493K	LG2	JM-1	C93200(SAE660)
Tin Bronze	ZCuSn12	G-CuSn12	CAC503B	CC483K /CB483K	PB2	JM3-15	C90800(ASTM B 427)
High leaded tin bronze	ZCuSn10Pb10	CuSn10Pb10-C		CC495K / CB495K	LB2	JM-15	C93700 / SAE64
High leaded tin bronze	CuSn7Pb15	CuSn7Pb15-C		CC496K	AB2	JM-4	C93800

Tag:

Place of Origin:	China
Brand Name:	Joyreap
Certification:	ISO,IATF16949
Model Number:	JDB-30

Packaging Details:	Cartons+Wooden Pallets
Delivery Time:	30 days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	50 tons per month
