Name: GCr15 Steel Graphite Bronze Bearing Cast Iron Self Lubricating Bushing
Brand: Jiaxing Joyreap Precision Machinery Co.,Ltd
SKU: JDB-70
Availability: InStock

Detail Information

Name:	Graphite Bronze Bearing	Brand:	Joyreap
Model:	JDB-70	Standard:	ISO,IATF16949
Material:	GCr15+Graphite Rings Or Graphite	Feature:	Anti Wear
Highlight:	GCr15 Graphite Bronze Bearing , Steel Graphite Bronze Bearing , Self Lubricating Bushing

Product Description

GCr15 Steel Graphite Oiles Bearing,Cast Iron Graphite Ring Oiles Self lubricating Bushing Bearing

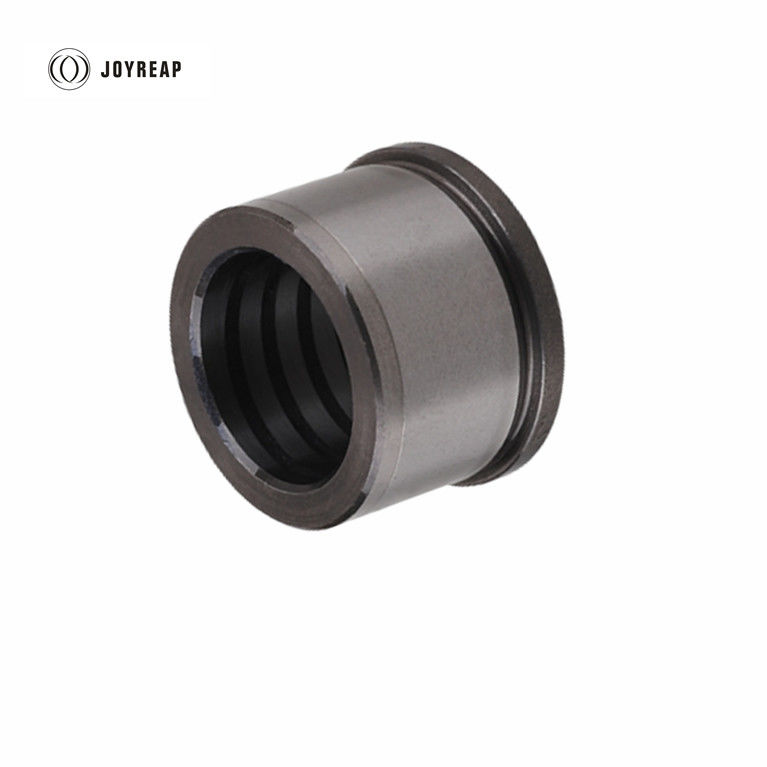

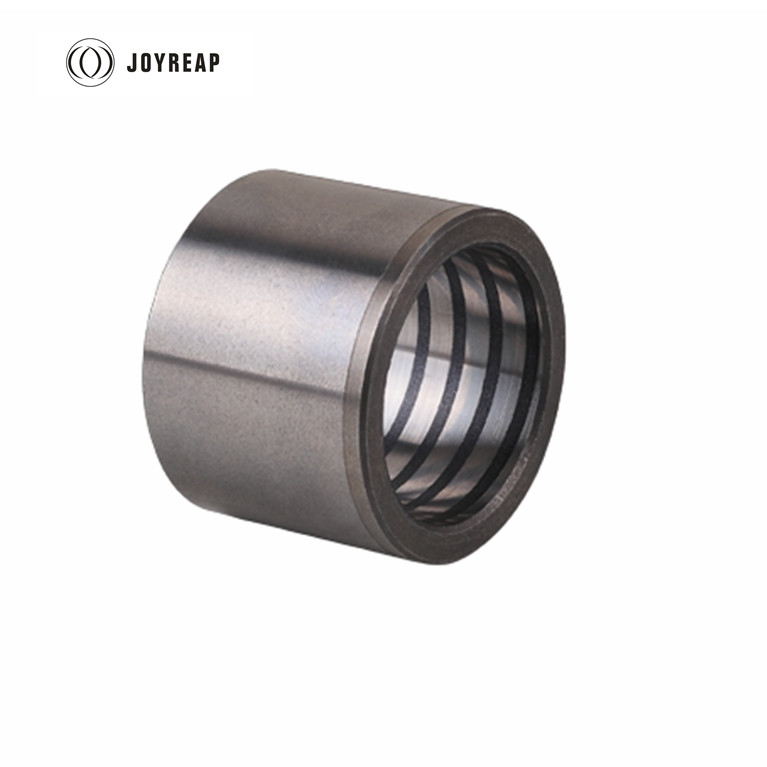

JDB-70 cast iron graphite ring filled guide bearing is made of centifugal casting steel with graphite ring. This type of self-lubricating bearing is widely used in mould industry. It's also called Headed oiless guide bush,#500 cast steel oilless bearing.GCr15 Steel graphite ring oiles bearing and etc

Material

GCr15+Graphite Rings or Graphite

Other Base material can be made based on requirement

Characteristics

Low maintenance: The self-lubricating graphite eliminates the need for regular lubrication, reducing maintenance costs and downtime.
High load capacity: GCr15 steel graphite bushings are capable of handling heavy loads due to their high hardness and excellent wear resistance.
Long service life: The combination of GCr15 steel and embedded graphite ensures a longer service life compared to traditional bushings, minimizing the need for replacements.
Environmental benefits: The reduced need for additional lubricants makes GCr15 steel graphite bushings an eco-friendly choice, lowering the environmental impact of industrial processes.
Wide temperature range: These bushings perform well under a broad range of temperatures, ensuring optimal performance in diverse applications and environments.

Availability

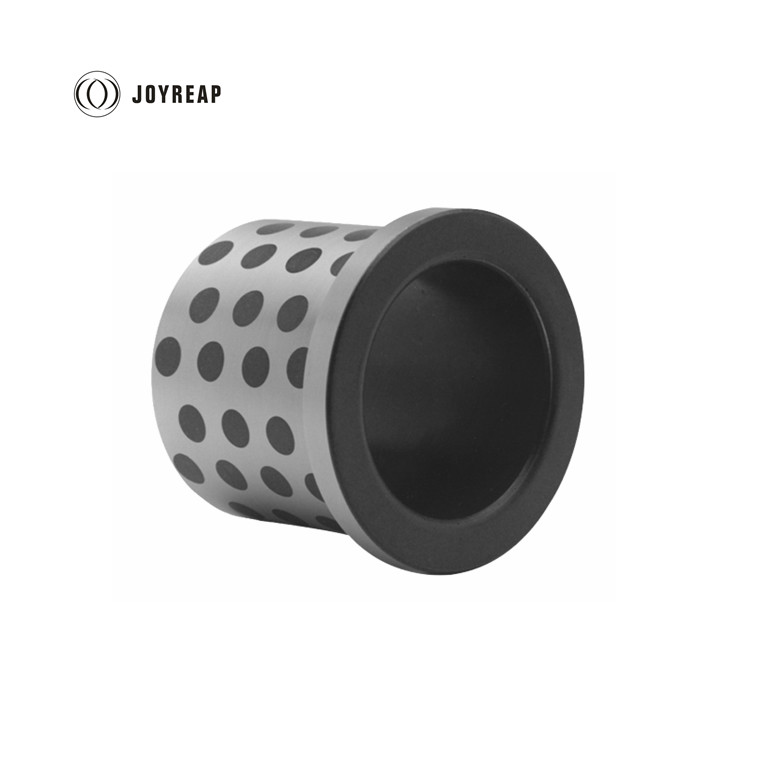

Cylindrical oiles bushing, flanged oiles bushing
Special designs and material can be made according to your design.

Application

JDB-70 solid lubricant rings filled cast iron oilless guiding bearing is widely used in Guide bushings of precision molds,Precision guide rails.

Technical Data

Material	GCr15+Graphite or Graphite ring
Density	7.8
HB Hardness	HRC 58-60
Friction μ	0.04~0.17
Max. Operation Temp.	-40~+350
Max. load	250N/mm²
Max. speed m/s	0. 1m/s
Max. PV (N/mm² *m/s)	2.5N/mm²·m/s

Tag:

Place of Origin:	China
Brand Name:	Joyreap
Certification:	ISO,IATF16949
Model Number:	JDB-70

Packaging Details:	Cartons+Wooden Pallets
Delivery Time:	30 days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	20 tons per month
