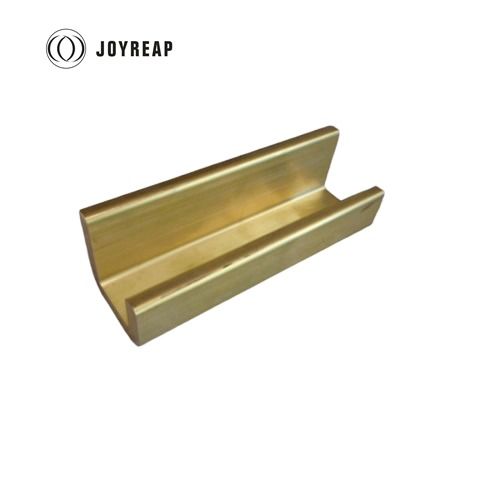

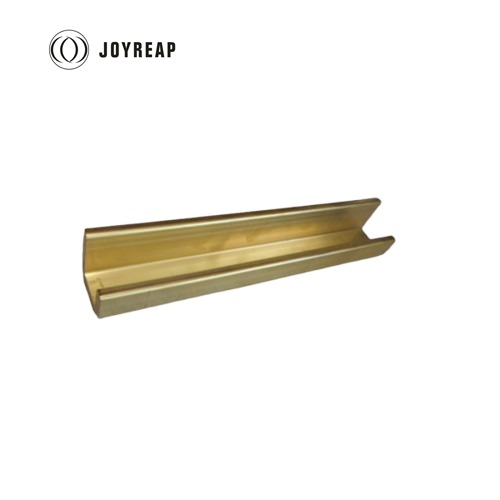

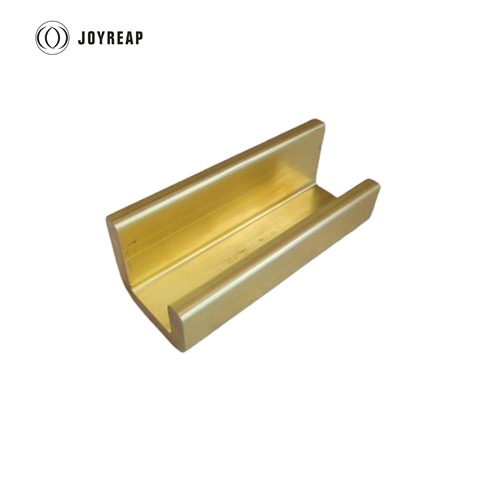

Name: 5T8366 bronze wear plate 5T-8366 Caterpillar Strip-wear brass guide rail
Brand: Jiaxing Joyreap Precision Machinery Co.,Ltd
SKU: JDB-P
Availability: InStock

Product Description

5T8366 bronze wear plate 5T-8366 Caterpillar Strip-wear brass guide rail

Bronze guide rail was are made with premium OEM quality materials to ensure strength and durability. We design and manufacture these parts to withstand the extreme conditions found in todays heavy duty equipment

Material

CuZn25AI5Mn4Fe3( High Strength)

Material Chemical Composition
%	Cu%	Pb%	Sn%	Zn%	Fe%	Ni%	Al%	Mn%
Min.	60.00	0.00	0.00	22.00	2.00	0.00	5.00	2.50
Max.	66.00	0.20	0.20	28.00	4.00	1.00	7.50	5.00

Technical Data

Material	CuZn25AI5Mn4Fe3( High Strength)
Density	7.80
HB Hardness	≥250
Tensile Strength MPa	≥800
Yield Strength MPa	≥450
Elongation %	≥800
Thermal Expansion Coefficient	1.9x10*%/°C
Max. Operation Temp.	-40~+300°C
Max. load MPa	75
Max. speed m/s(Dry)	0.1
Max. speed m/s(Lubricated)	0.25
Max. PV (N/mm² *m/s)(Dry)	1.65
Max. PV (N/mm² *m/s)(Lubricated)	3.25

Item we can make

Part No.	Description	Dimensions
5T-8365	wear strip	152.46158.4mm
5T-8366	wear strip	14019.719.7mm
5T-8367	wear strip	152.450.848.3mm
5D-0134	wear strip	203.212748.3mm
178-1685	wear strip	304.848.345.7mm
446-1524	wear strip	1405050mm
446-1525	wear strip	47151.950mm
446-1526	wear strip	2036464mm
446-1527	wear strip	3155050mm
253-4627	wear strip	154.96666mm
253-4628	wear strip	154.96130.5mm
276-1317	wear strip	177.848.845.7mm
276-1318	wear strip	202.86464mm
276-1319	wear strip	177.838.133mm
5T-2925	wear strip	431.850.850.8mm
6G-4372	wear strip	38150.845.7mm
6G-4524	wear strip	177.863.57.6mm
6G-4525	wear strip	3155050mm
128-9654	wear strip	254101.625.4mm
128-9655	wear strip	375.950.845.7mm
302-6331	wear strip	355.6101.625.4mm
333-0960	wear strip	3055.155.1mm
