Name: FD-3 Modified PTFE Soft Strip Guide Tape
Brand: Jiaxing Joyreap Precision Machinery Co.,Ltd
SKU: FD-3
Availability: InStock

FD-3 Modified PTFE Soft Strip Guide Tape

Basic Information

Place of Origin:	China
Brand Name:	Joyreap
Certification:	ISO,IATF16949
Model Number:	FD-3

Packaging Details:	Cartons+Wooden Pallets
Delivery Time:	30 days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	300,000PCS/Month

Get Best Price Contact Now

Detail Information

Description:	FD-3 Modified PTFE Guide Tape	Material:	PTFE+Graphite+other Wear Material
Type:	FD-3 Coil Strip	Advantage:	Self Lubrication, Maintenance Free
Standard:	DIN 1494	OEM:	YES

Product Description

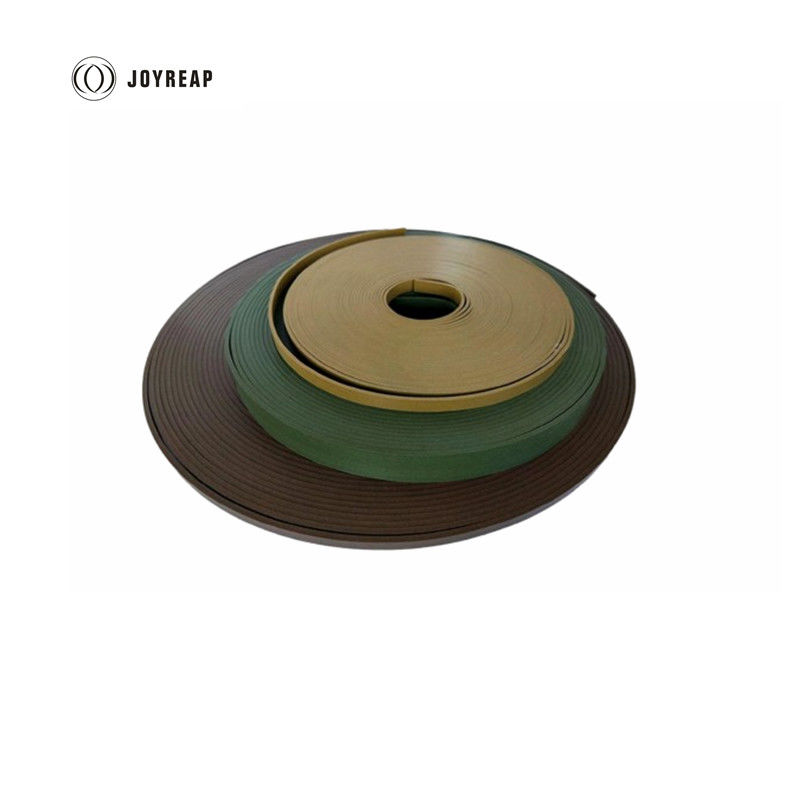

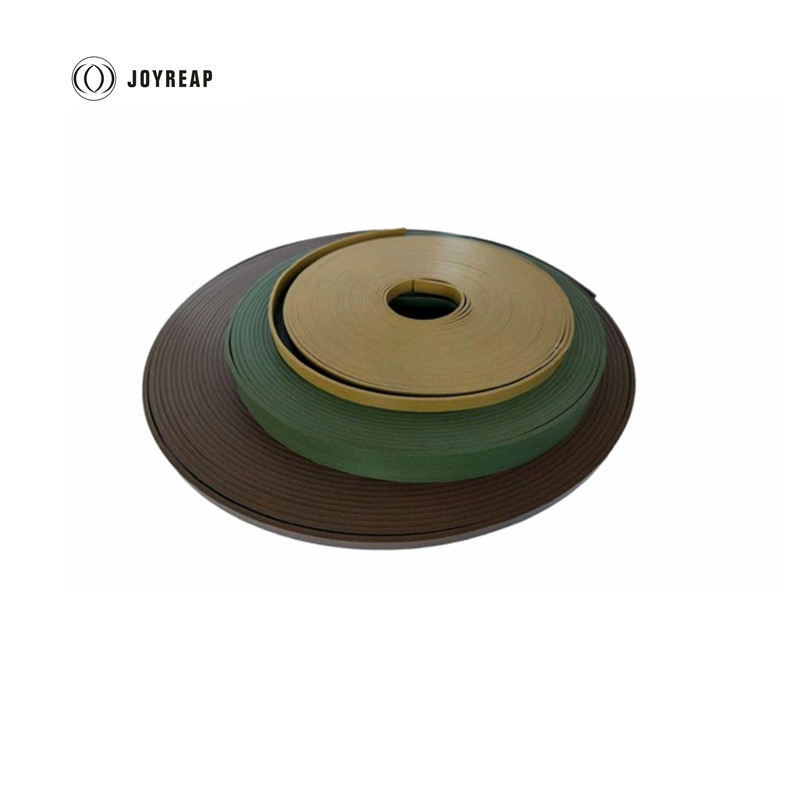

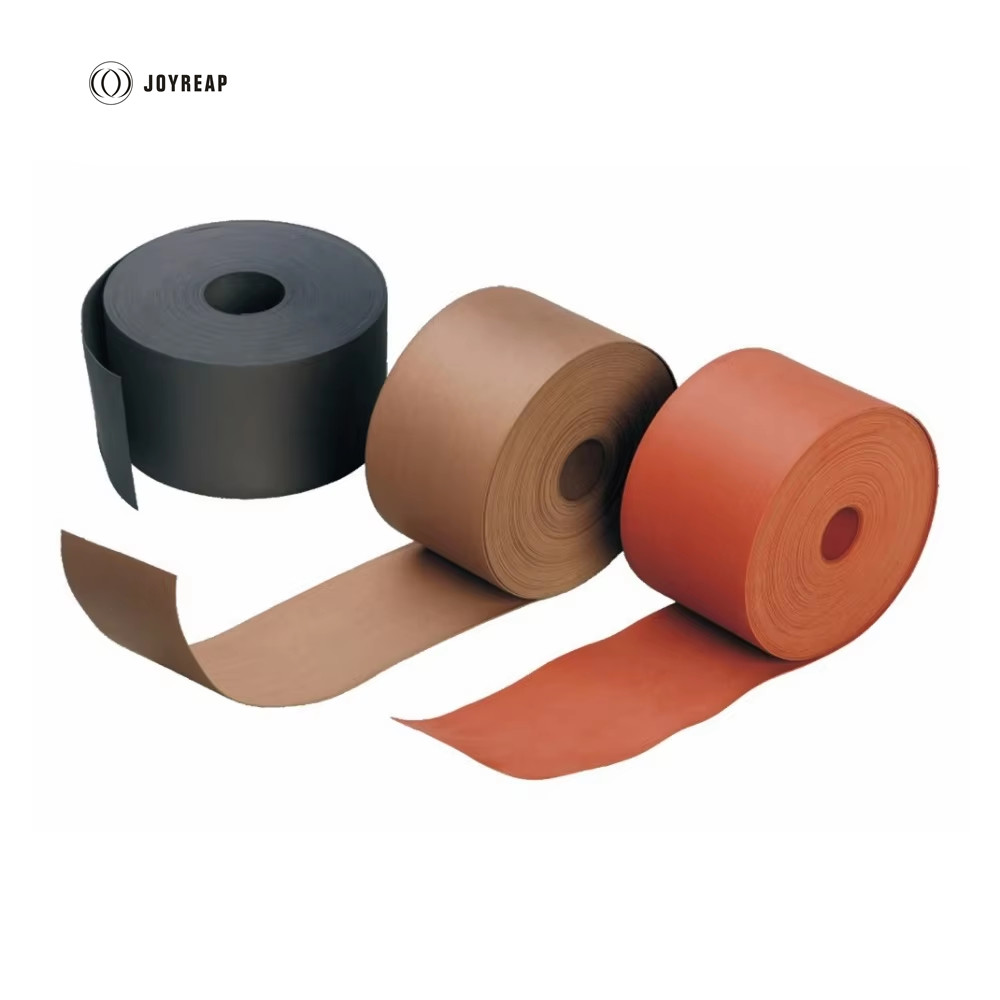

FD-3 Modified PTFE Soft Strip Guide Tape

FD-3 modified PTFE tape is made of PTFE as the main raw material, filled with special wear-resistant agent and pressed and sintered by the mold. It has good wear resistance, impact resistance and sealing performance.

Feature

1.Good wear resistance
2.Impact resistance
3.Sealing performance
4.No chemical reaction working in gasoline

Application

1.Flow pump of refueller
2.Thrust washer of connecting rod
3.Sealing ring

Technical Data

Grade		FD-3
Material		Modified PTFE soft tape
Max.Load	Static Load	30N/mm2
Max.Load	Dynamic Load	20N/mm2
Working Temperature		-20~+250 °C
Max sliding speed	Dry Friction	0.5m/s
Max sliding speed	Oil Friction	2m/s
PV limit		1.65N/mm2 · m/s
Friction Coeff.		0.10~0.20μ
