Pan Based Graphite Felt High Temperature Insulation Vacuum Furnaces Used Graphite Sheet

Basic Information

Place of Origin:	China
Brand Name:	Joyreap
Certification:	ISO,IATF16949
Model Number:	Z-PAN

Minimum Order Quantity:	10
Price:	$200
Packaging Details:	Cartons+Wooden Pallets
Delivery Time:	20 days
Payment Terms:	L/C, D/A, D/P, T/T

Get Best Price Contact Now

Detail Information

Description:	Graphite Felt Insulation Sheet	Material:	Graphite
Advantage:	Light Weight, Low Thermal Conductivity	Application:	Vacuum Furnaces
Name:	Pan Based Graphite Felt	Orign:	China
Max Temperature:	2200

Product Description

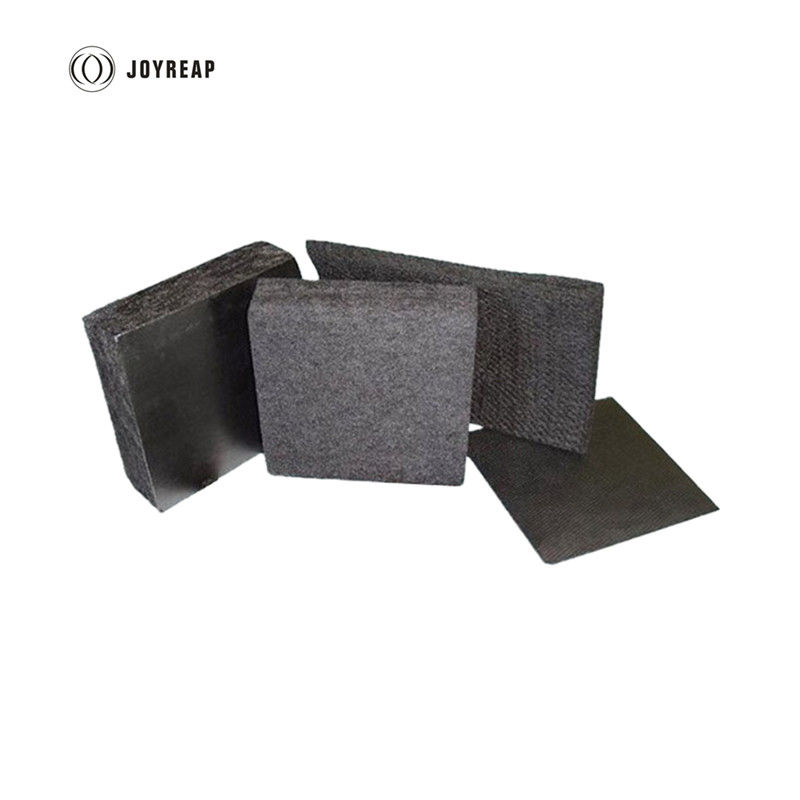

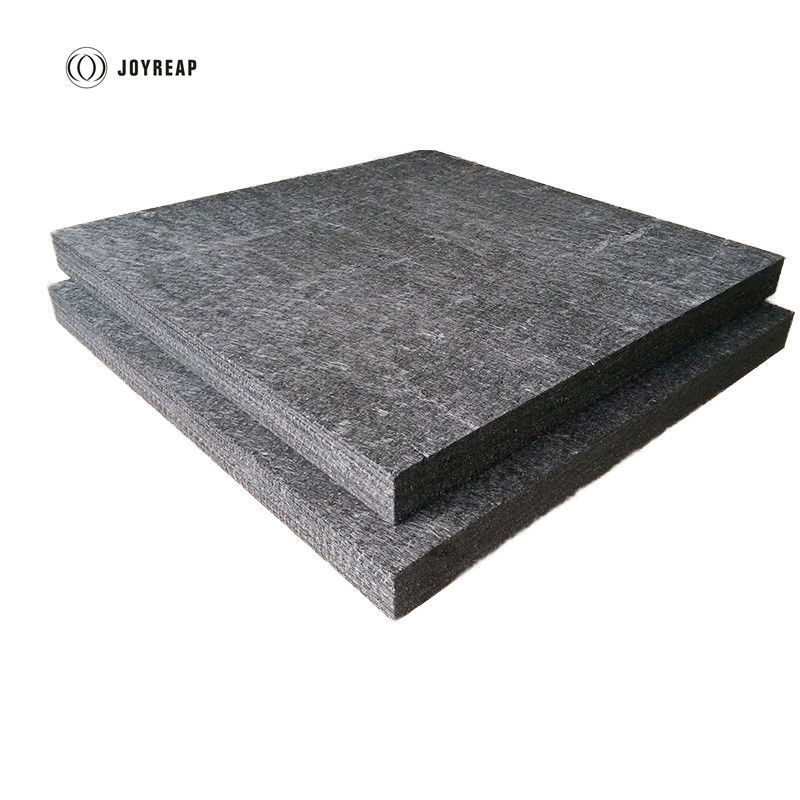

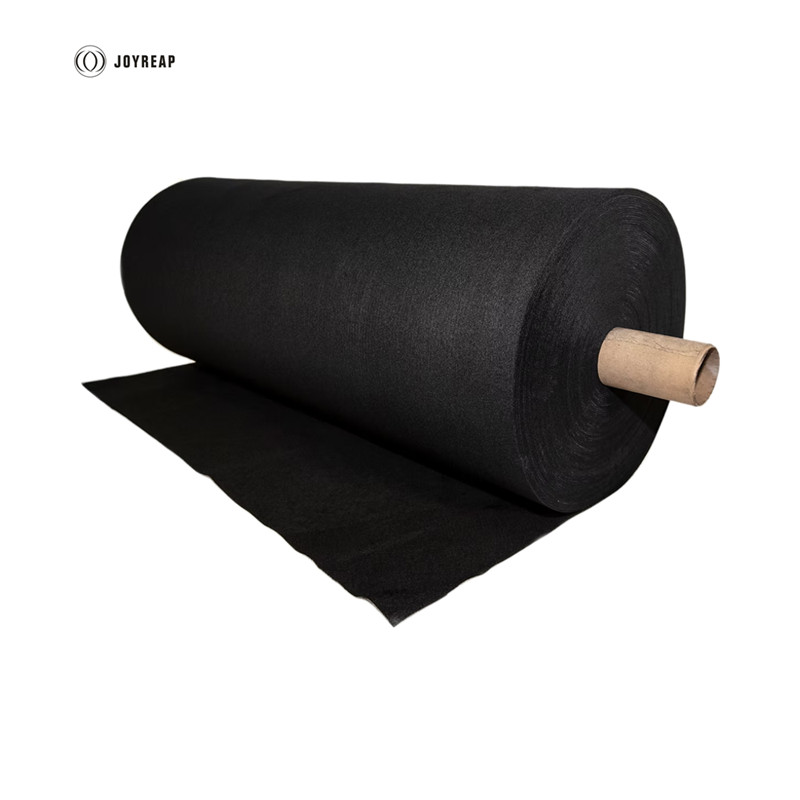

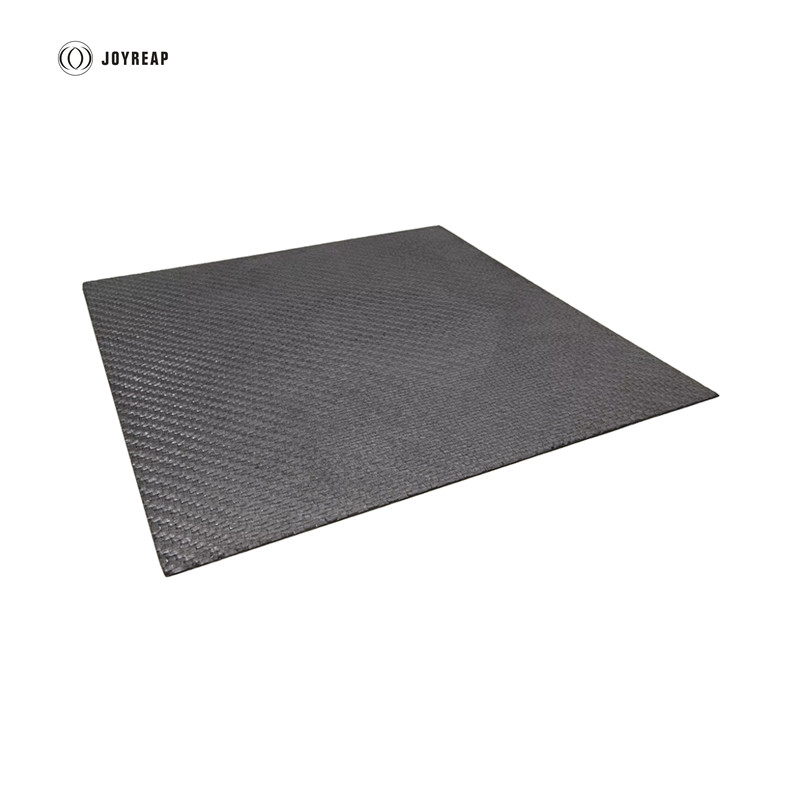

Pan Based Graphite Felt

Pan based graphite felt, also known as polyacrylonitrile, is designed and used as high-temperature insulation in vacuum and inert gas furnaces, among other applications. In comparison to rayon felt, Pan based graphite felt has larger courser fibers, lower surface area, and better oxidation resistance.

Characteristics

Flexible material that is easy to cut and install
Lower surface area and better oxidation resistance
Minimize energy consumption and cost
Maximize furnace performance and longevity
High purity and high thermal resistance
Low ash and sulphur content
Low density, shrinkage, and thermal mass
No outgassing

Technical Data

Property	Graphite Felt
Bulk density (g/cm³)	0.13
Carbon content (%)	> 99.5
Ash content (%)	0.05
Thermal conductivity (W/mK) (at 1150 °C)	0.16
Tensile strength (MPa)	0.12
Min. Process Temperature (°C)	2200

Application

Furnace insulation & parts
Heat shields & sinks
Backing strips for soldering & welding
Cathode in flow battery applications
Reaction surface for other electrochemical processes
Glass blowing pads & plumber pads
Wicks in ultralight stoves
Automotive exhaust linings
Thermal insulators
