Name: OEM 20CrMo Hardened Steel Sleeve Bushings Bearing Oil Grease Lubricating
Brand: Jiaxing Joyreap Precision Machinery Co.,Ltd
SKU: 20CrMo Hardened Steel Bushing
Availability: InStock

Detail Information

Name:	Hardened Steel Bushing	Brand:	Joyreap
Standard:	ISO,IATF16949	Orign:	China
Material:	20CrMo	OEM:	YES
Highlight:	OEM Hardened Steel Sleeve Bushings , Hardened Steel Sleeve Bushings , 20CrMo Hardened Steel Sleeve Bearing

Product Description

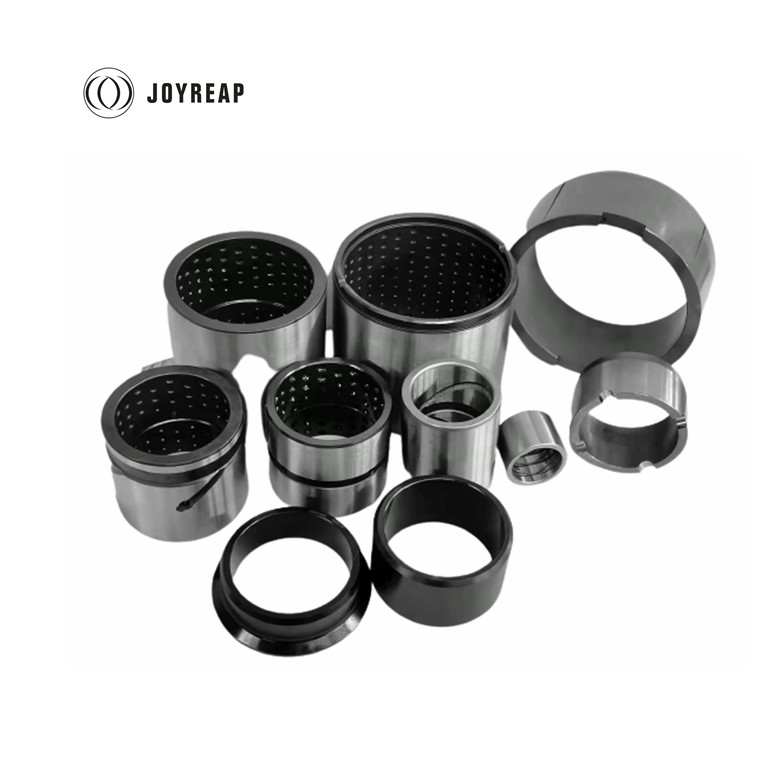

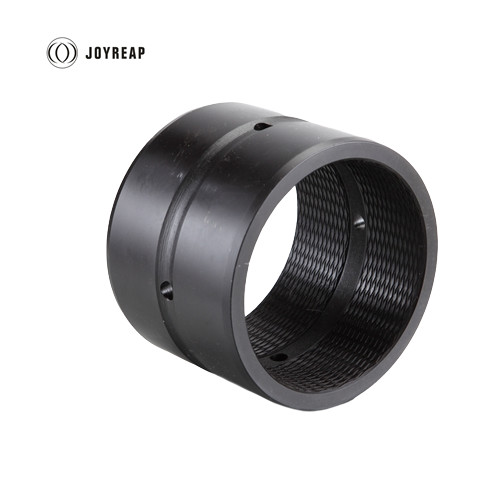

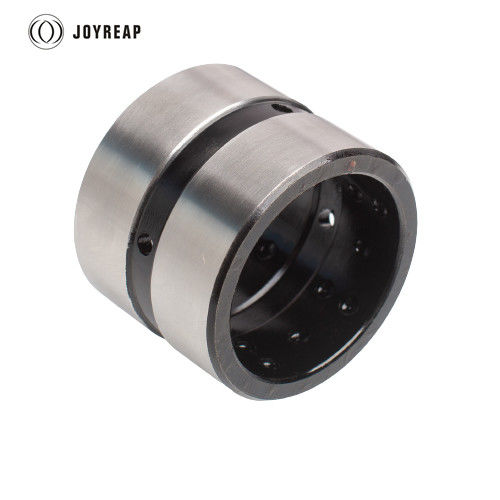

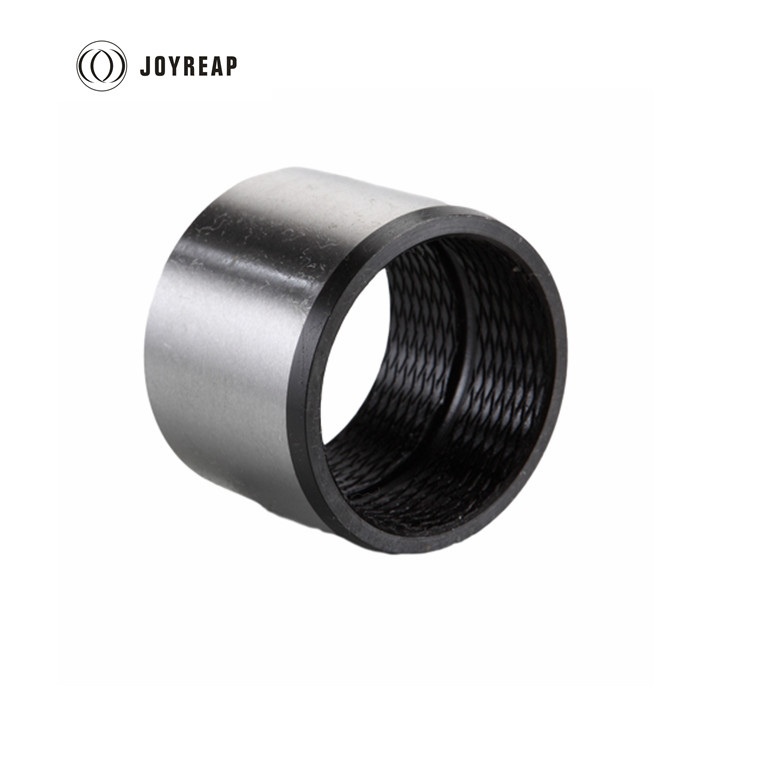

20CrMo Hardened Steel Bushing Oil Grease Lubricating Hardened Steel Bushings Sleeve Bearing

20CrMo Heavty Duty Super Lubricating Hardened Steel Bushing

20CrMo hardened steel bushings are made of 20CrMo sorbite steel with multiple complex surface treatment. This type of bushing is designed for high performance, low maintenance, long service life for extreme touch appliation

Material

20CrMo Hardened Steel Bushing Super Lubricating Hardened Sleeve Bearing 0

Base Material: Sorbite Steel
Base Hardness: 280-330HV0.3
Carburized Treatment
Hardness of carburized layer: HRC57-62
Thickness of carburized layer 0.8-1.2mm

QPQ Treatment

Hardness of QPQ Treatment>550HV
Thickness of QPQ Treatment:0.15-0.4mm

Coating Treatment

Coating multiple self lubricating layer
Design oil pockets on inside surface which can stock oil grease to have a resistance to impact, wear,friction and corrosion under the protection of oil film. I20CrMo Hardened Steel bushing can remove a lot of problem of traditonal hardened steel bushing like noisy, frequently replacement,easy and etc. it's very good choice of cost saving

Advantages

No additional oil or grease is required for lubricating

Can be worked at 300 ℃ high temperature without bearing burnt or journal sticking

High load, strong comression,high hardness, low friction

Application

20CrMo Hardened steel bushing is widely used for excavator ,rotary drilling machine,heavy duty loader,diaphragm wall grab

Technical Data

Materail	20CrMo
Max Dynamic Load(Mpa)	250N/mm2
Max Temperature	-100-350°C
Max Sliding Speed(m/s)	1.5m/s
Hardness	57-62 HRC

Tag:

Place of Origin:	China
Brand Name:	Joyreap
Certification:	ISO,IATF16949
Model Number:	20CrMo Hardened Steel Bushing

Packaging Details:	Cartons+Wooden Pallets
Delivery Time:	30 days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	20 tons per month
