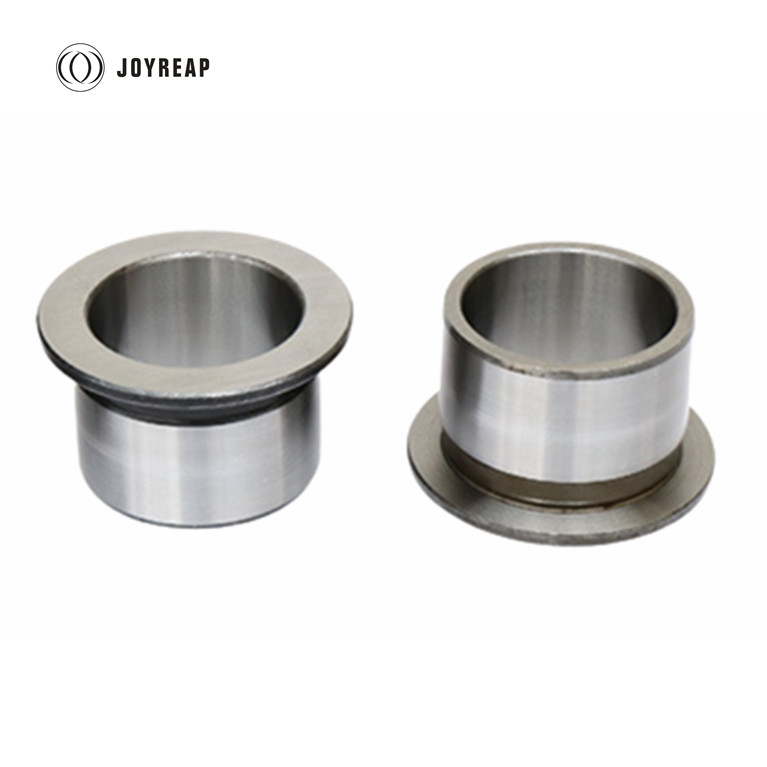

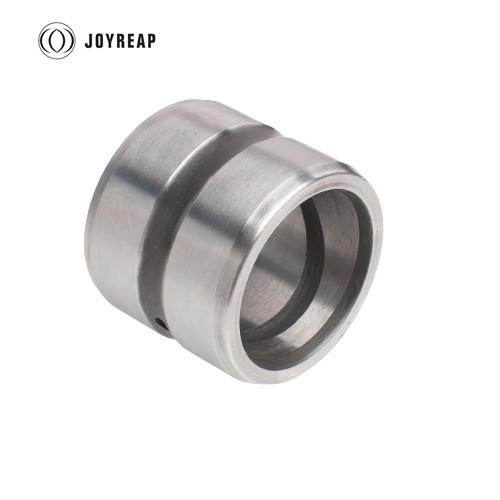

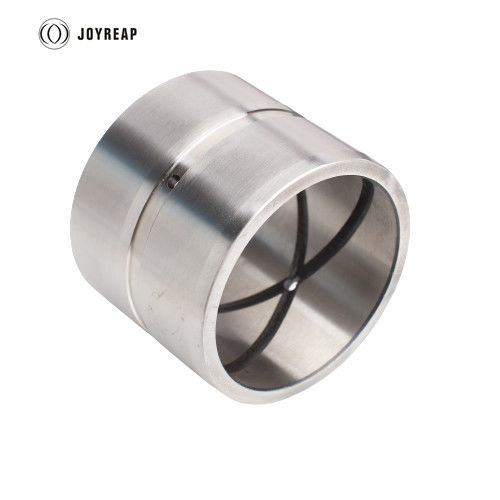

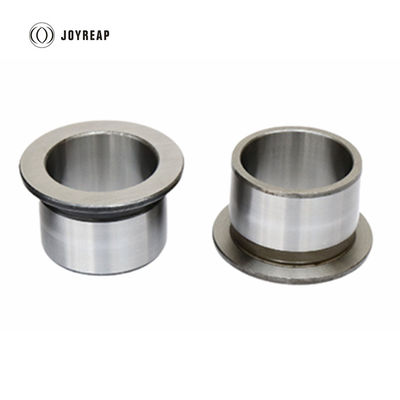

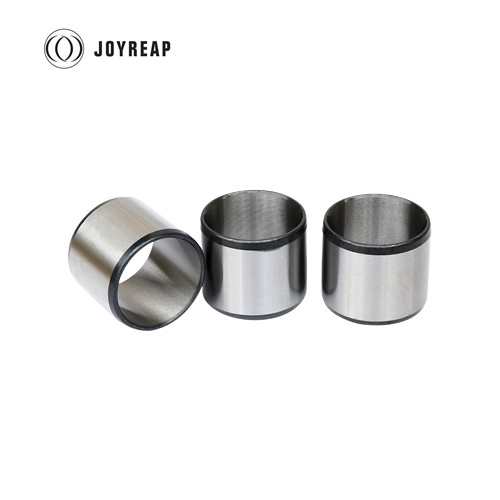

100Cr6 / GCr15 Hardened Steel Bushing Oil Grooves Bucket Pin Bushing

Basic Information

Place of Origin:	China
Brand Name:	Joyreap
Certification:	ISO,IATF16949
Model Number:	100Cr6 Steel Bushing

Packaging Details:	Cartons+Wooden Pallets
Delivery Time:	30 days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	300,000PCS/Month

Get Best Price Contact Now

Detail Information

Description:	Hardened Steel Bushing	Material:	100Cr6
Lubrication:	Oil Grease	Appliation:	Bucket Bushing, Boom Pin Bushing
Brand:	Joyreap	Feature:	Anti Wear
Highlight:	100Cr6 Hardened Steel Bushing , GCr15 Hardened Steel Bushing , Oil Grooves Bucket Pin Bushing

Product Description

100Cr6 Steel Hardened Bushings GCr15 Hardened Steel Oil Grooves Bucket Pin Bushing

100Cr6 hardened steel bushings are made of bearing steel and hardened to 56-62 HRC. Hardened steel bushing request daily or maximum weekly greasing.Hardened steel bushings are designed according customer need with different kind of internal grooves providing lubricant distribution and abrasive particles removing. Flanged bushing or washer could be produced with the same technology

Material

100Cr6 Steel

Other material can be made based on requirement

Advantages

Cost Saving
High load capacity

Application

Excavator bushing
Loader bushes
Crane
Bucket Pin bushing
Boom bushing

Technical Data

Materail	100Cr6 Steel
Max Dynamic Load(Mpa)	250
Max Temperature	-100-350°C
Max Sliding Speed(m/s)	0.1
Max PV Value(m/s*Mpa	1.5
Hardness	56-62 HRC
