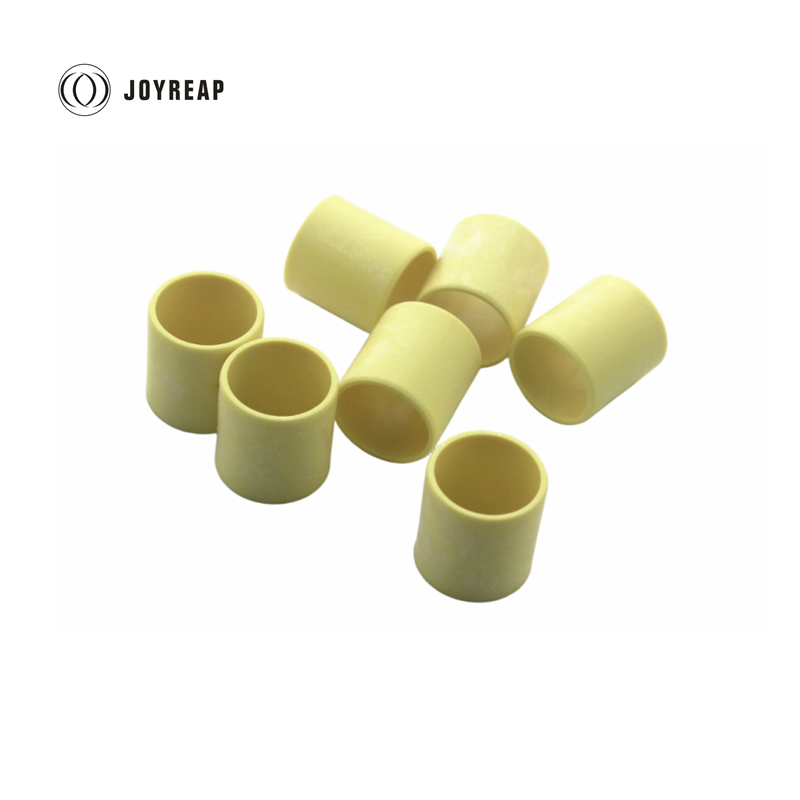

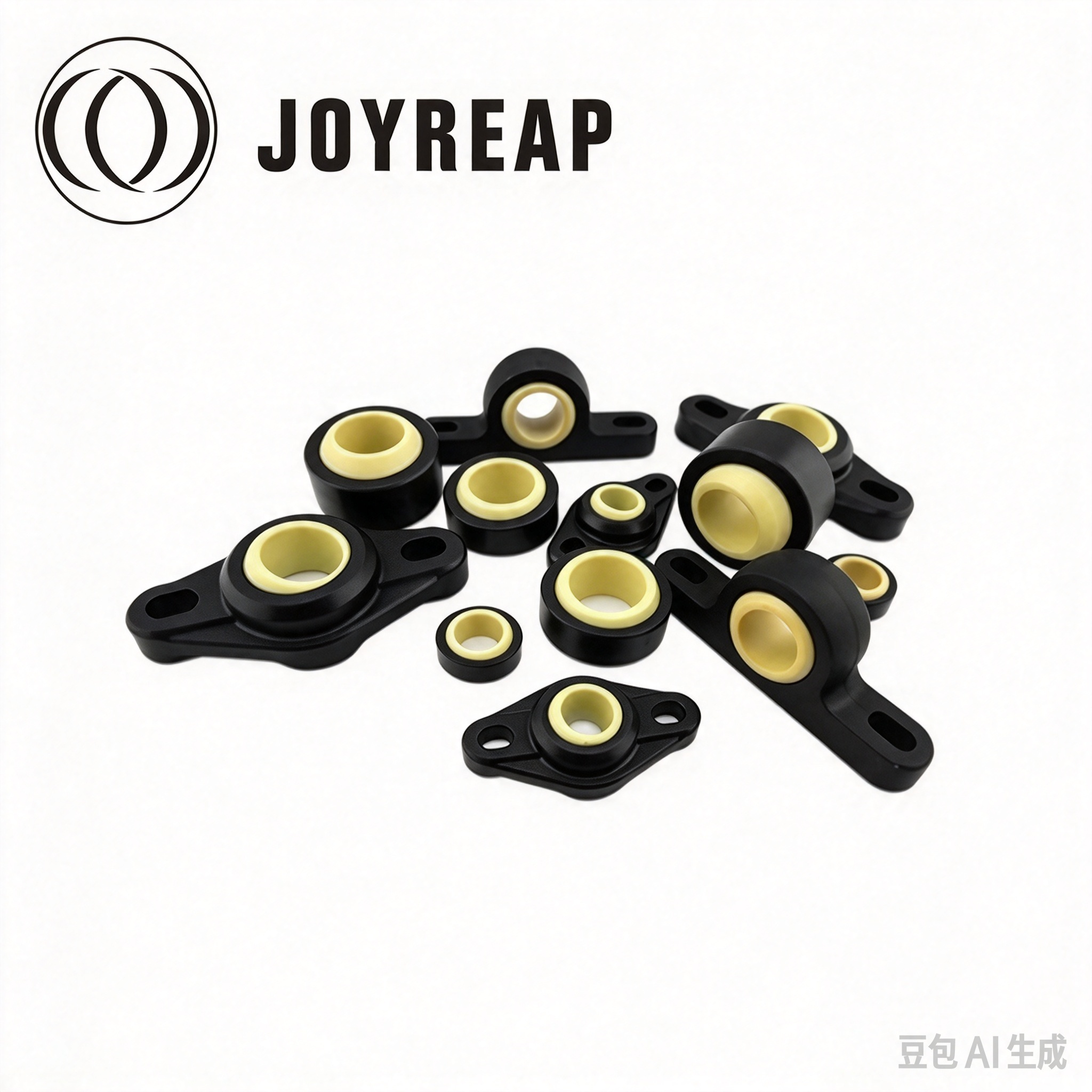

KBRM-10F Ball Joint Plastic 05500934 Component Pivot PTFE/PEEK Bushing

Basic Information

Place of Origin:	China
Brand Name:	Joyreap
Certification:	ISO,IATF16949
Model Number:	FZL

Minimum Order Quantity:	1pcs
Packaging Details:	Wrapped the ball cage with plastic paper and put them into export cartons
Delivery Time:	10-15 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,
Supply Ability:	100000

Get Best Price Contact Now

Detail Information

Description:	Aluminum Ball Cages	Material:	Aluminum +Steel Ball(DIN 5401)
Lubrication:	Steel Ball	Ball Hardness:	62-67HRC
Precision:	G10 For Steel Ball	Application:	Die Set
Highlight:	Ball Joint Plastic Pivot Bushing , PTFE/PEEK Ball Joint Component , Ball Retainer Bearing Pivot Bushing

Product Description

Product Overview

The KBRM-10F Ball Joint Plastic 05500934 is a precision pivot component featuring a PTFE/PEEK bushing. The FZL ball retainer bearing is manufactured from heat-treated aluminum alloy, combining durability and strength to deliver optimum service life in both high and low speed stamping presses. Quality is assured through constant dimensional verification using modern instruments throughout the entire manufacturing process.

Material Structure

Aluminum + Steel Ball

Key Characteristics

Universal design for broad compatibility
Combines smooth running with long service life
Balls arranged on a helical line, optimal for both stroke movements and rotational movements

Applications

Tool & Die Makers
Metal Stamping
Production Equipment
Automation
Aerospace
Medical Equipment
Electronic Parts & Connectors
Can Manufacturing Industry
Metal Washers & Shims
Automotive Industry
Stamping Die Manufacturers

Technical Data

Property	Specification
Material	PEEK/PTFE Plastic
Max. Load Capacity	30 N/mm²
Shrink Fit	0.01 mm – 0.02 mm
Max. Sliding Speed	6 m/s
Coefficient of Friction	0.01 – 0.08
Rolling Diameter Deviation	<0.002 mm
