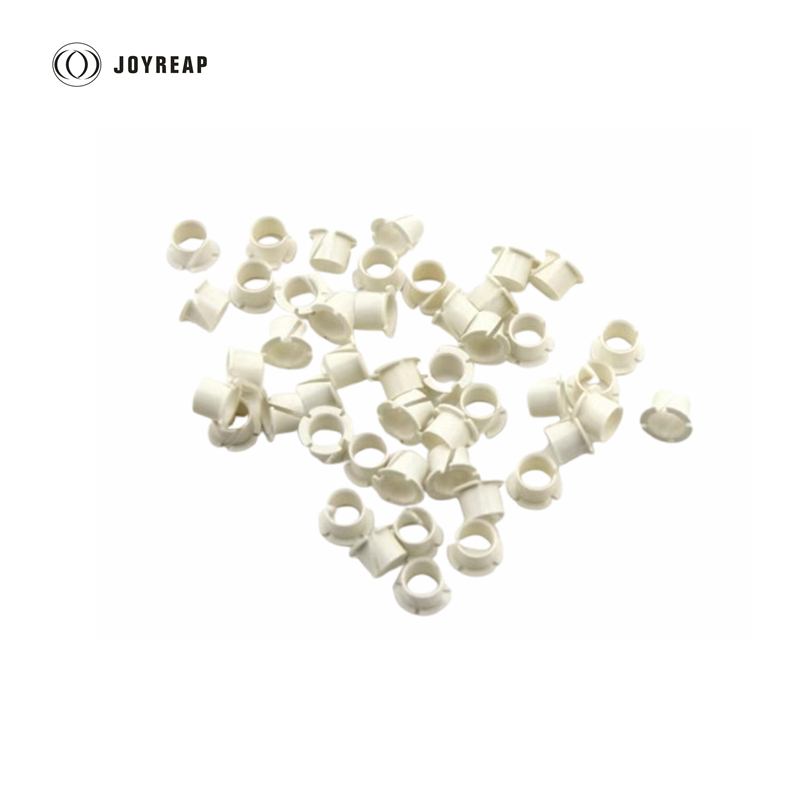

Single Flange Clip Bearings Maintenance-free Plastic Bushing Linear Plain Bearing

P104-YM  Single Flange Clip Bearings Maintenance-free Plastic Bushing Linear Plain Bearing

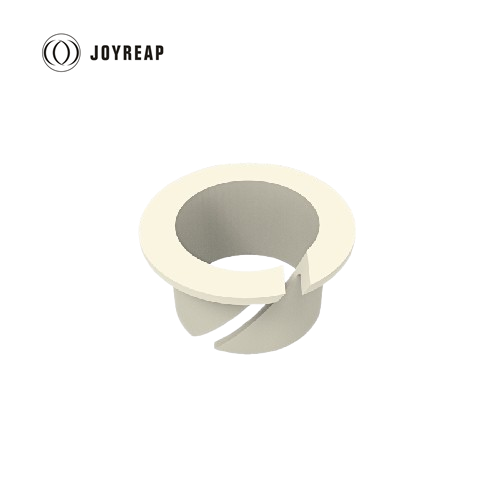

P104-YM clip bearings have a single flange, where the flange is located on one end of the bearing, allowing the bearing to be secured to one side of sheet metal after installation.

Material:

 Plastic

Feature:

• Low noise

• Very easy installation

• Good wear resistance

• Smooth operation

• Maintenance-free and self-lubricating

• Used for both rotational and linear movements

• Expansion possible due to slot design

• Secured with the double flange design

• Special dimensions are possible

How it works

1. Insertion: The angled slit allows the bearing to be easily inserted into a bore hole (a pre-drilled opening) in the sheet metal from one side.
2. Expansion: After insertion, the bearing expands, creating a snug fit within the bore hole and forming a lining.
3. Securing the shaft: The shaft is then inserted through the bearing, which prevents it from detaching, even during axial movement.
4. Compensation for Expansion: The angled slit also provides space to compensate for bearing expansion that might occur due to temperature or moisture fluctuations.

Standard Size

one single flange clip bearing
