Name: J102 JUM-C Liner Plastic Linear Bearings Liners
Brand: Jiaxing Joyreap Precision Machinery Co.,Ltd
SKU: J102 JUM-C
Availability: InStock

Detail Information

Code:	P102 JUMC	Material:	Plastic
Type:	Short And Long, Closed	Application:	Indoor, Outdoor

Product Description

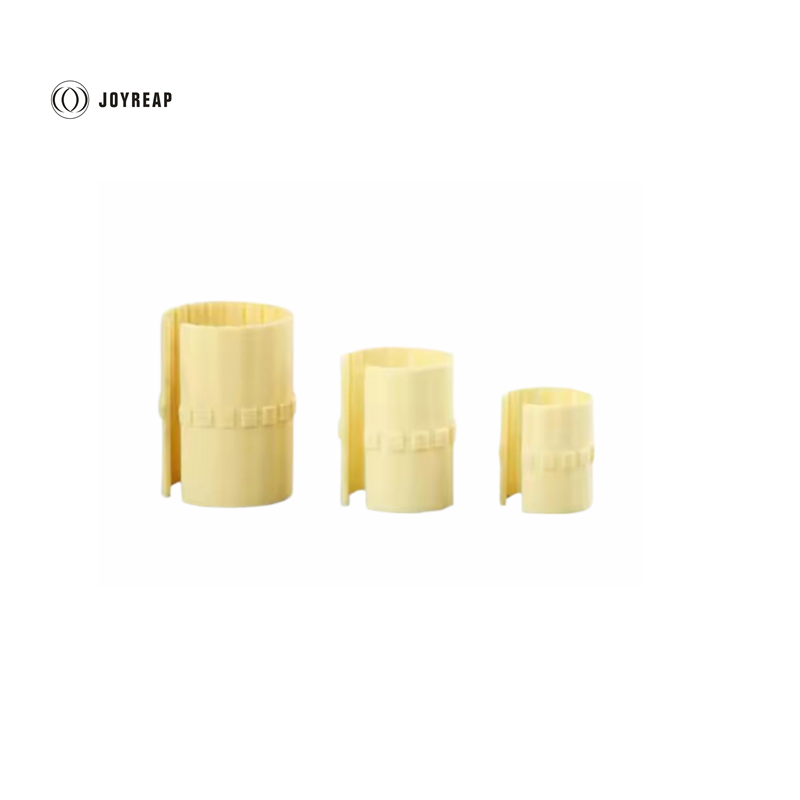

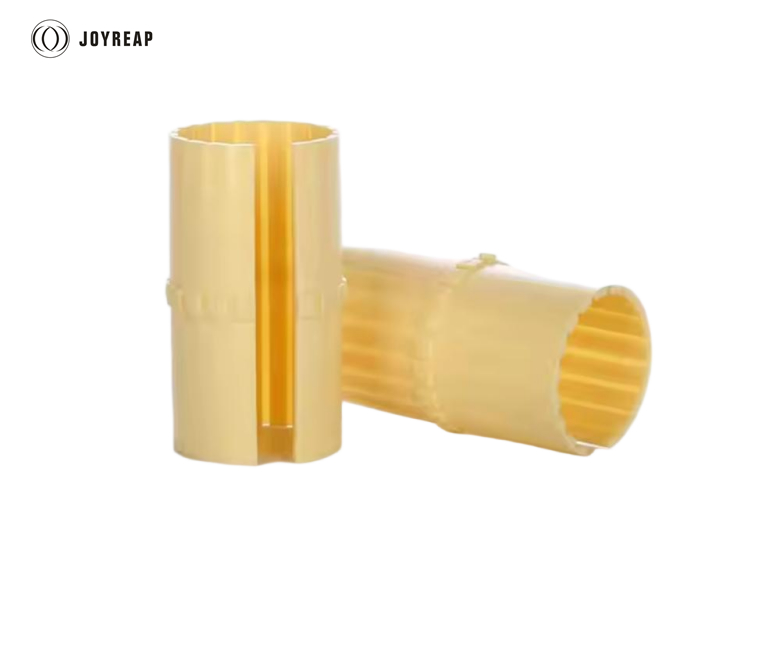

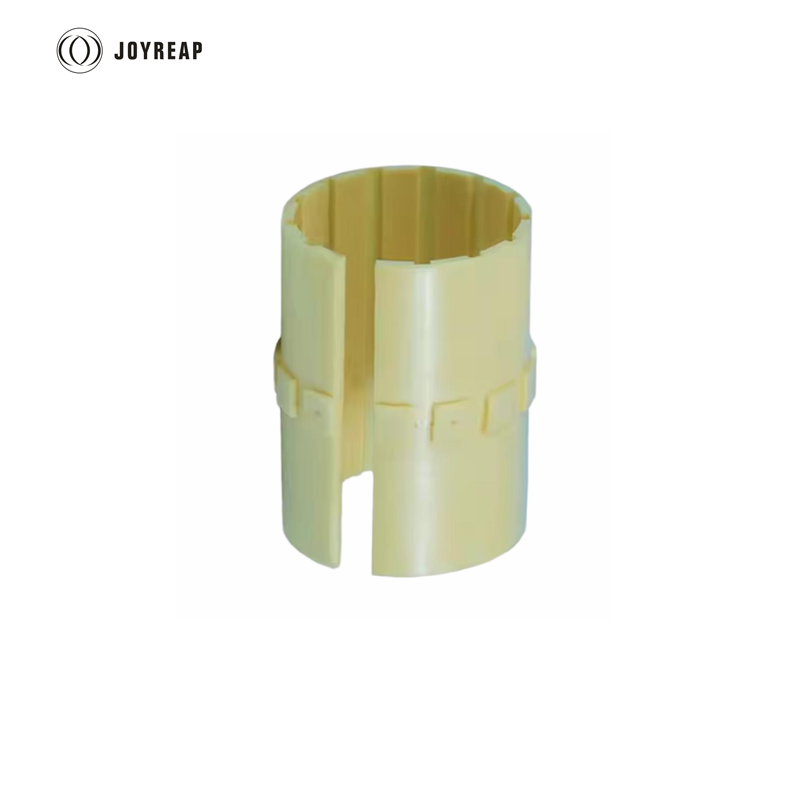

J102 JUM-C Liner Plastic Linear Bearings Liners

J102 JUM-C is made of Engineering Plastic Material. JUM-C plastic linear bearings are with the surface contacting structure which ensures a lower operation noise level at high speed operation. The straight grooves design of LIN-11 allows the bearing to be used in the extremely conditions such as in sands and dusts.

Material:

Yellow Plastic

Type:

Enclosed housing, long design

Standard Size

J102 JUM-C Liner Plastic Linear Bearings Liners 0

Part No.	d	Tolerance	D1	L1	L2	h	D2	Weight
Part No.	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	(g)
J102 JUM-C 01-10	10	+0.030 +0.070	12	28	3.0	0.8	3	1.10
J102 JUM-C 01-12	12	+0.030 +0.070	14	31	3.0	0.8	3	1.50
J102 JUM-C 01-16	16	+0.030 +0.070	18	35	3.5	0.8	4	2.20
J102 JUM-C 01-20	20	+0.030 +0.070	23	44	5.0	0.8	4	4.90
J102 JUM-C 01-25	25	+0.030 +0.070	28	57	5.0	0.8	4	8.23
J102 JUM-C 01-30	30	+0.040 +0.085	34	67	5.0	0.8	4	14.95
J102 JUM-C 01-35	35	+0.040 +0.085	39	69	5.0	0.8	4	18.20
J102 JUM-C 01-40	40	+0.040 +0.085	44	79	6.0	1.3	5	23.16
J102 JUM-C 01-50	50	+0.050 +0.150	55	99	7.0	1.3	6	45.36
J102 JUM-C 01-60	60	+0.050 +0.150	65	124	8.0	2.0	7	70.00

Installation Size:

J102 JUM-C Liner Plastic Linear Bearings Liners 1

Part No.	Shaft	Bd	BL	BW	Bh1	Bh2	BD
Part No.	Shaft	H7	h10	+0.05	+0.1	+0.5	+0.2
J102 JUM-C 01-10	10	12	29	3.0	1.0	1.0	2.6
J102 JUM-C 01-12	12	14	32	3.0	1.0	1.5	3.1
J102 JUM-C 01-16	16	18	36	3.5	1.0	1.7	3.6
J102 JUM-C 01-20	20	23	45	5.0	1.0	2.0	3.6
J102 JUM-C 01-25	25	28	58	5.0	1.0	2.0	4.1
J102 JUM-C 01-30	30	34	68	5.0	1.0	2.0	4.1
J102 JUM-C 01-35	35	39	70	5.0	1.0	2.0	4.1
J102 JUM-C 01-40	40	44	80	6.0	1.5	2.5	5.1
J102 JUM-C 01-50	50	55	100	7.0	1.5	2.5	6.1
J102 JUM-C 01-60	60	65	125	8.0	2.5	3.0	6.5
