Detail Information

Description:	ZR-GP10 Bronze Filled PTFE Material	Precision:	CNC Machined High Precision
Feature:	Self Lubircating, Anti-wear	Type:	Sleeve, Flange, Thrust Washers

Product Description

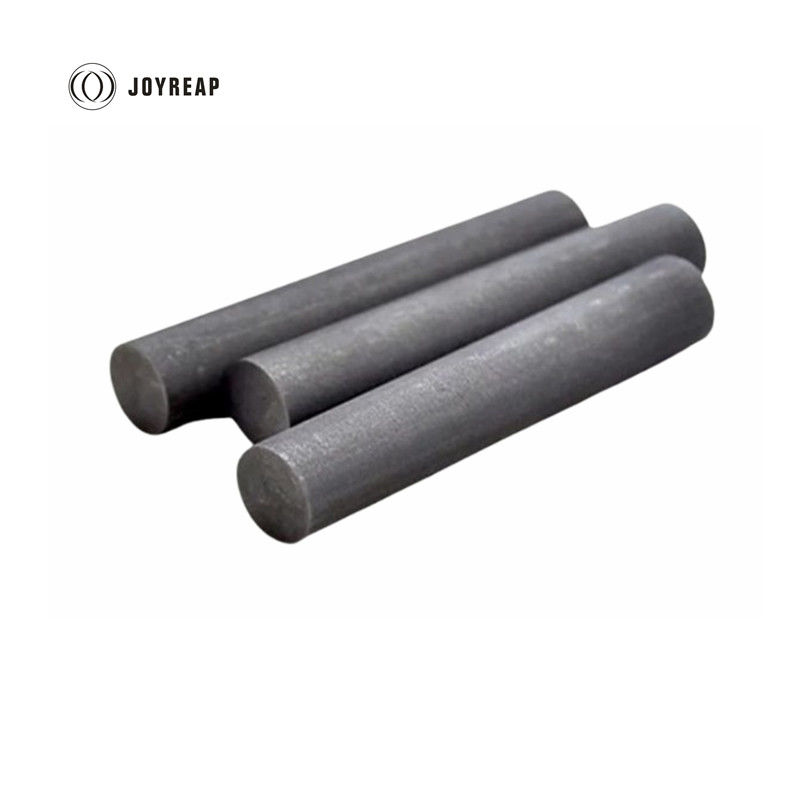

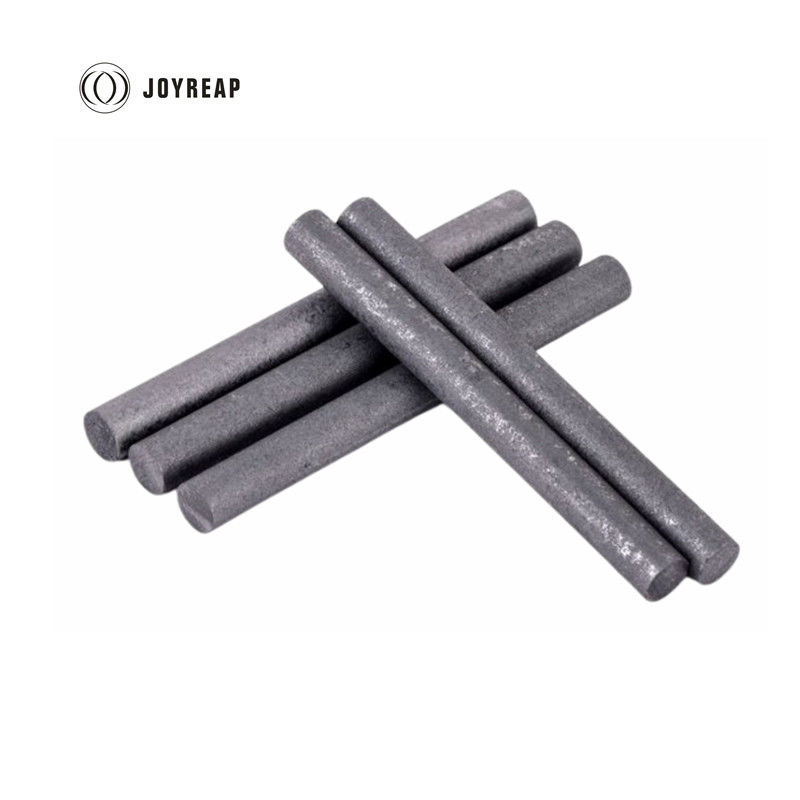

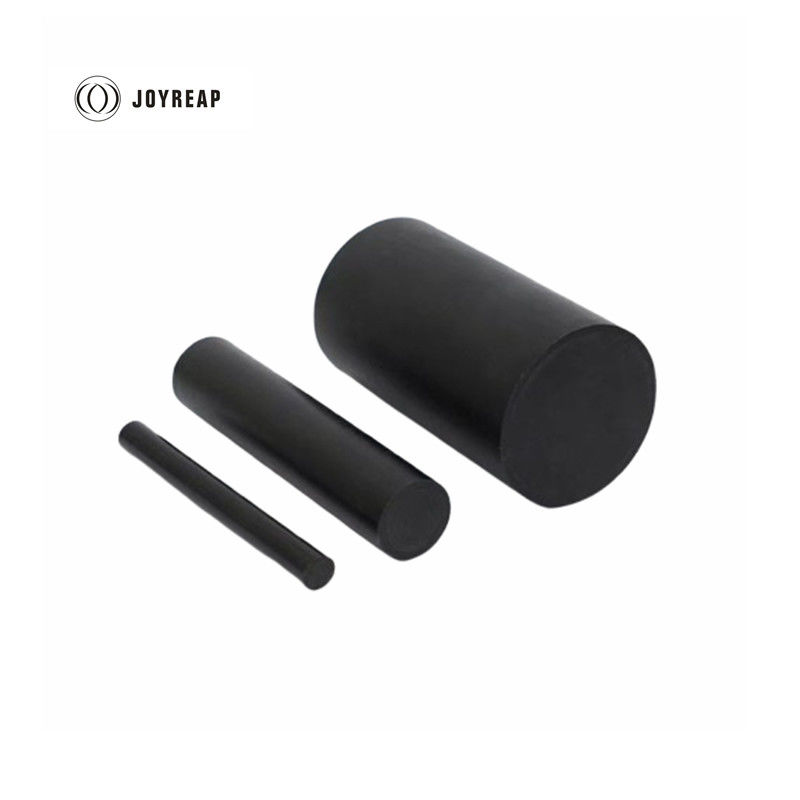

10% Graphite Filled PTFE Tube PTFE Rod PTFE Sheet

10% graphite filled PTFE tube is made of 10% graphite powder blended with 90% PTFE. Graphite has self-lubricating properties which reduce friction. It is generally used in combination with glass or carbon or both. It has good wear resistance due to its flaky form.

10% graphite filled PTFE tube combines the excellent chemical resistance, low coefficient of friction, and extreme temperature range of virgin PTFE with a graphite filler providing additional strength and stability. The filler produces a lower coefficient of friction making it a great wear choice for dynamic components.

Material:

10% Graphite+PTFE

Advantages:

Low coefficient of friction compared to other filled PTFE materials.
Higher flexural modulus and surface hardness than unmodified PTFE.

Application

Typically used in seal components for rotatory and reciprocating applications and can be used to seal against steel, stainless steel, chromium plating, bronze, bare or anodized aluminum and aluminum alloys, and ceramic coatings.

Technical Data

Property	Test Method	Units	10 Graphite	15 Graphite
Color	-	-	Black	Black
Specific Gravity	ASTM D792	-	2.100 - 2.200	2.100 - 2.200
Hardness Shore D	ASTM D2240	-	61 - 71	59 - 69
Tensile Strength, min.	ASTM D4745	PSI [MPa]	2,600 [17.9]	2,000 [13.8]
Elongation at Break, min.	ASTM D4745	%	120	100
Second Melt Peak Temp.	ASTM D3418	°F [°C]	621 [327]	621 [327]
Glass Transition Temp.	ASTM D3418	°F [°C]	-143 [-97]; 246 [119]	-143 [-97]; 246 [119]

Tag:

Place of Origin:	China
Brand Name:	Joyreap
Certification:	ISO,IATF16949

Packaging Details:	Cartons+Wooden Pallets
Delivery Time:	30 days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	500,000PCS/Month
